Part 2: Cockpit Control Unit
1 DESCRIPTION, OPERATION AND SPECIFICATION
1.1 DESCRIPTION
1.1.1 General
The Cockpit Control Unit Type D51616-XXXX forms part of
the aircraft Combined Voice and Flight Data Recording
System and is usually installed in the cockpit.
The unit is a panel mounted enclosure containing the Area
Microphone Pre-amplifier, provision for an integral or
externally mounted Area Microphone, a Headphone jack
socket together with pushbuttons and indicators for the self-
test and voice erase facilities of the DAFR.
Cockpit Control Unit Type D51616-1XXX for single DAFR
installation support is illustrated in Figure 16 and Type
D51616-2XXX for dual DAFR installation support in Figure 17.

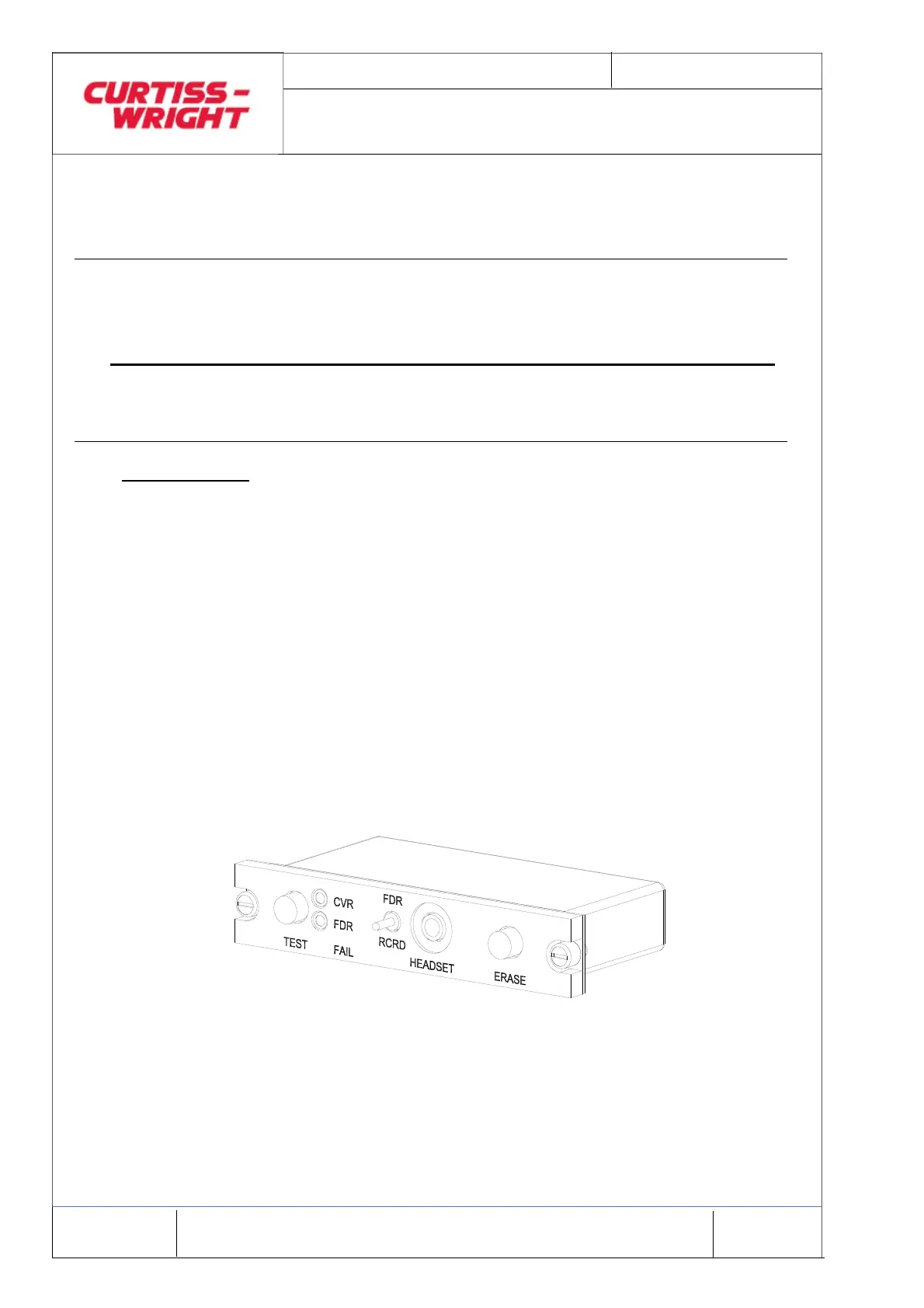

Figure 16 Cockpit Control Unit Type D51616-1XXX
