Mar 2017 Page 37
DATA ACQUISITION FLIGHT RECORDER Type D51615-202-
X
XX or D51615-
202-XXX-090 with CCU Type D51616-XXXX and CAM Type D51623-XXXX
Installation and Operating Manual with Illustrated Parts
List
Commercial in Confidence
PIM434-I
© Penny & Giles Aerospace Ltd. No part of this work may be reproduced or distributed by any means
without prior permission in writing from the copyright owner.

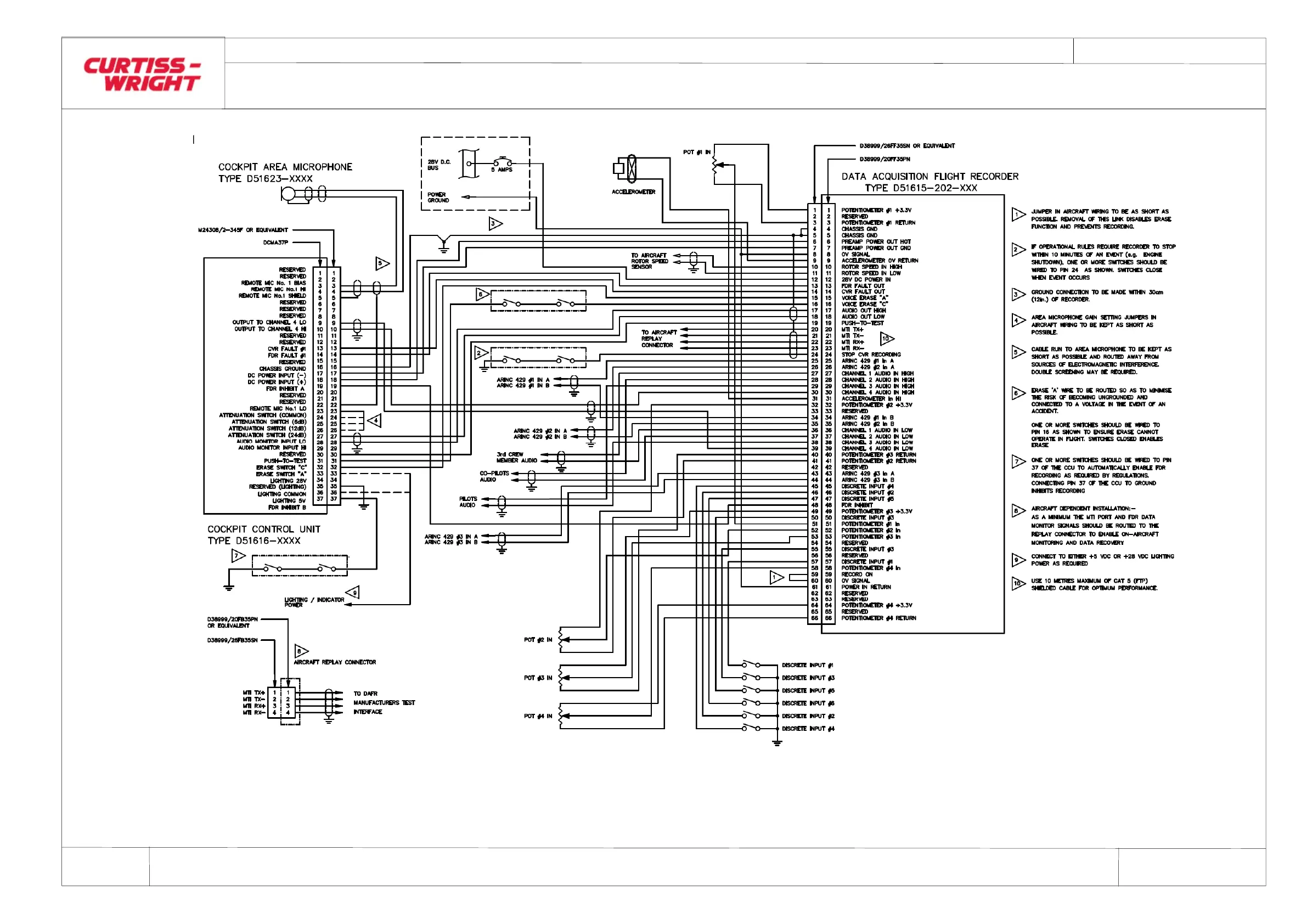

Figure 9 Typical Wiring Diagram for Data Acquisition Flight Recorder Type D51615-202-XXX
