Mar 2017 Page 103
DATA ACQUISITION FLIGHT RECORDER Type D51615-202-XXX or D51615-
202-XXX-090 with CCU Type D51616-XXXX and CAM Type D51623-XXXX
Installation and Operating Manual with Illustrated Parts
List
Commercial in Confidence
PIM434-I
© Penny & Giles Aerospace Ltd. No part of this work may be reproduced or distributed by any
means without prior permission in writing from the copyright owner.
D51623- X X X X
000 = Flying Lead Termination
001 = MIL C38999 Connector
fitted
If only three digits after D51623 -
Colour: Semi Mat Black. To FED-
STAN-595A, # 37038
1 = Medium Gunship Grey
(FED-STD-595 # 36118)
Figure 21 CAM Part Number Options

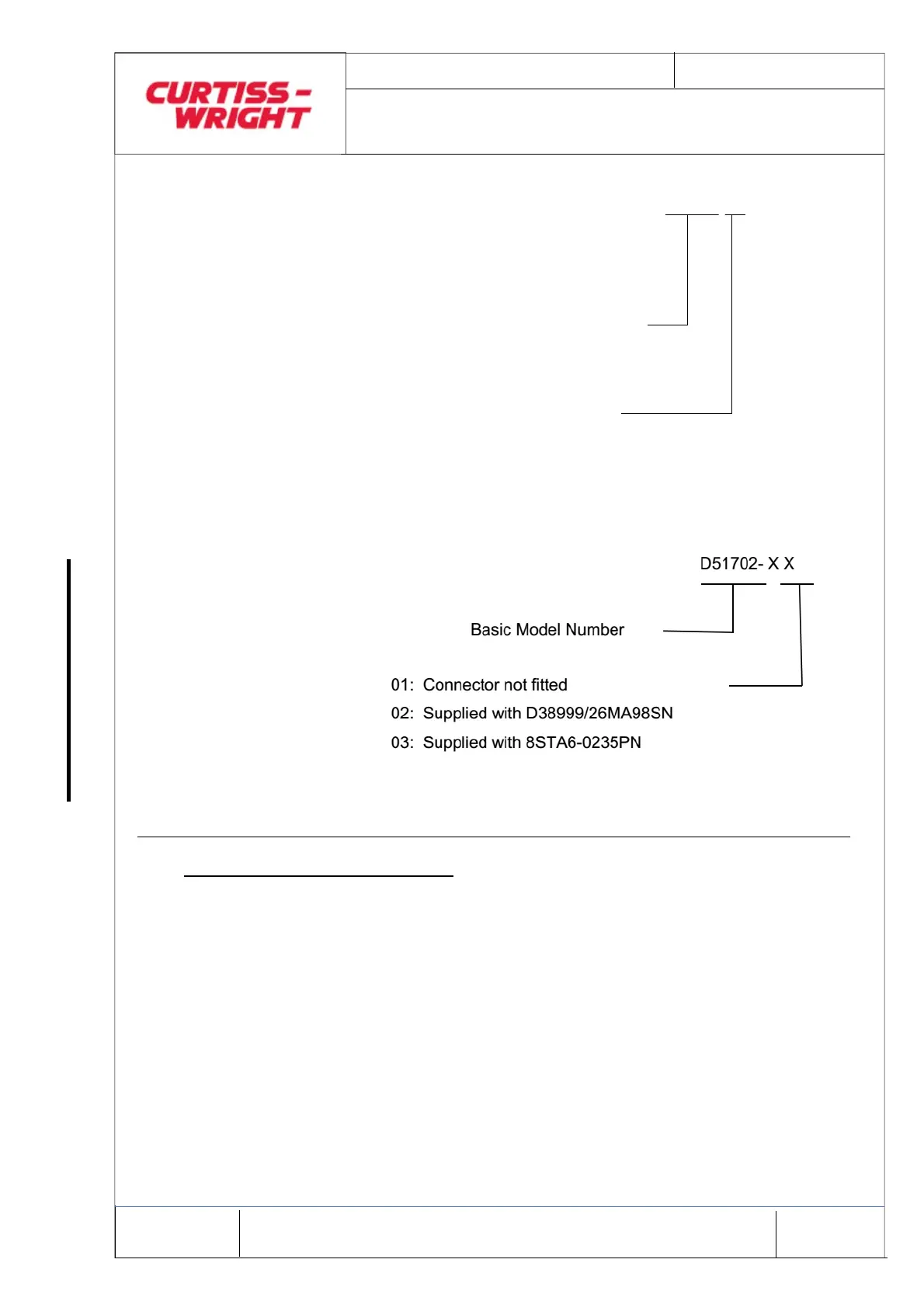

Figure 22 D51702 Part Number Options
1.4 COMPATIBILITY/INTERFACES
The Remote Microphone functions in accordance with the
performance specification of ED-56A, Amendment 1. See
ARINC 757 Appendices 1 & 2 for guidance on microphone
location. Further guidance on wiring can be found in ARINC
757 Attachments 3 and 10. See Figure 23 for Installation
Drawing and connection details. Pin allocation and cable
requirements are shown in Table 13.
