• The full load ratings are at a maximum surrounding air

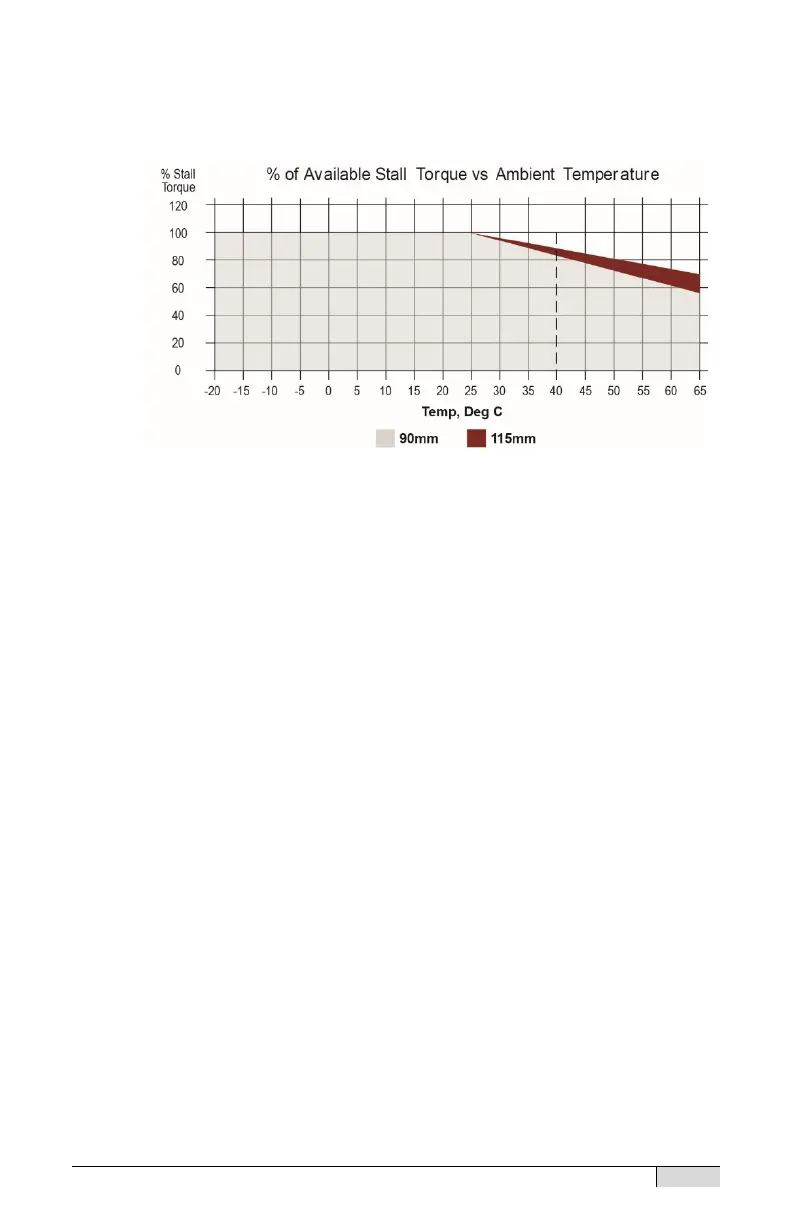

temperature of 25°C, see de-rating chart below for higher
ambient temperatures.
• All cables must be shielded, with the outer shield bonded to
the case.
• When using cable glands use glands that connect the braided
shield of the cable directly to enclosure.
• When using connectors ensure that the outer shield of the cable
is in full contact with the connector housing. Connector housings
must conductive.
• Make ground connections as short as possible for low
impedance.
• Keep cable runs as short as possible. Power and signal cables
must be separated and far as possible and only crossing them at
right angles as described in the Cable routing section of this
manual.
• IP rating: Model T2M actuators are IP 54 rated unless they
include the IP65 option, Models T2X, R2M, and R2G are IP65
rated.
• To maintain IP rating the RS485 cable or cap must be installed.
All other cable connections must be connected or sealed.
