GENERAL SPECIFICATIONS
Tritex II Overview
Tritex II is Exlar’s advanced family of integrated drives. This manual
applies to 90mm and 115mm frame sizes with 240VAC input power. All
of the required power components and motion processor are contained
in the actuator housing.

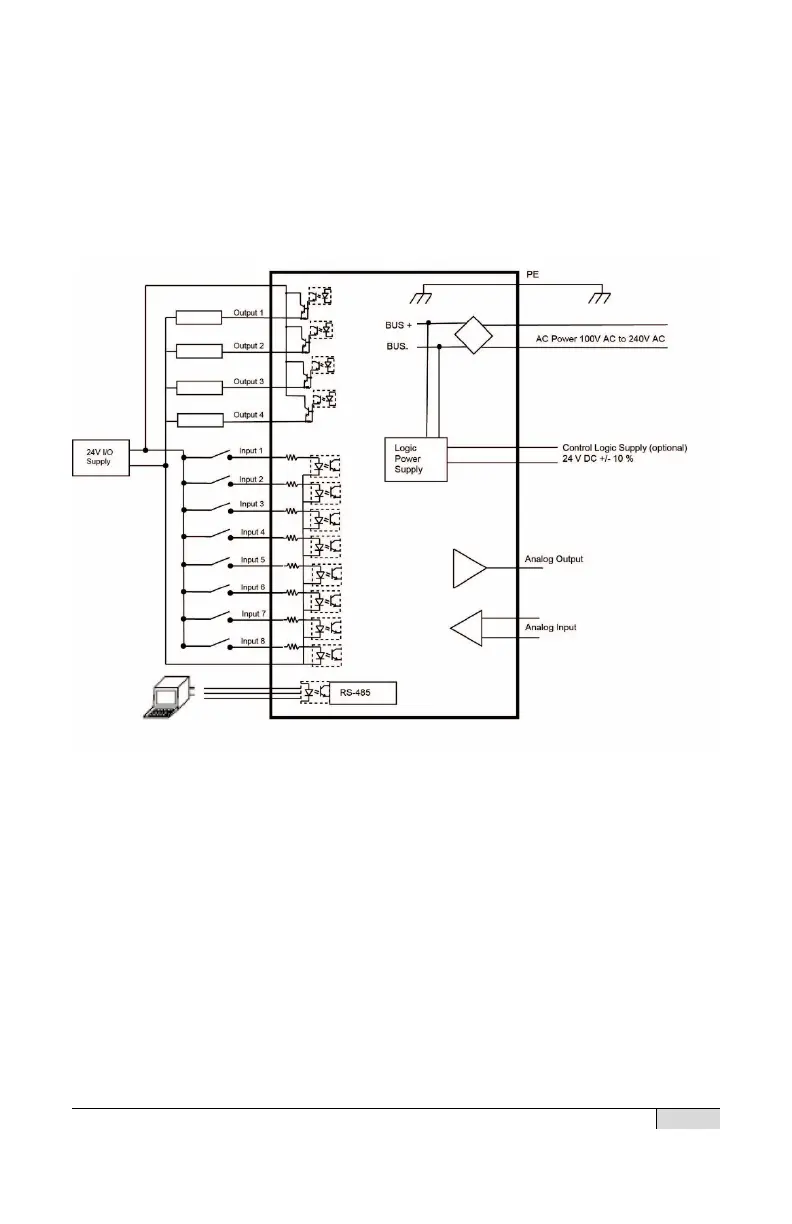

Tritex II Basic Block Diagram
