CANopen
The CANopen circuit is optically isolated from the drive main power as
well as other IO power.
There are two methods of connecting to the Tritex with the CANopen
option. If the COP option from model mask is chosen a single five pin
12 mm connector (Turck FS 57-.1) will be presented to the user for
connection or “T-ing”.

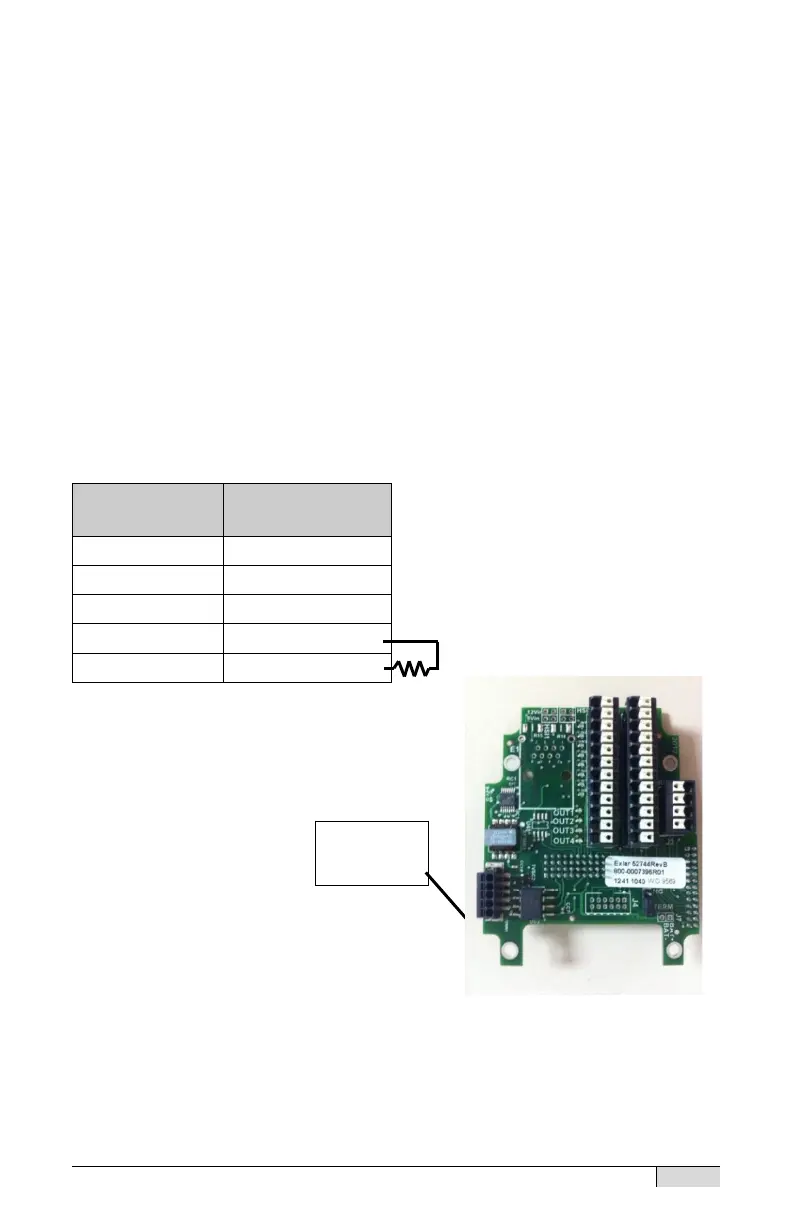

If the CON is chosen no connectors are provided, user wiring can be
passed through the cable gland or NPT port and inserted into connectors
on the termination board, see below. A 120 Ω resistor is installed from
the factory, in CONN 1 pins 4 & 5, as a termination resistor and can be
removed for daisy chaining or changed to another value if desired.
*NOTE: Follow wiring of SIO board for IO and RS485 communications.
CON Option
CONN 1
PIN 1
