Input / Output Connections
Tritex II units covered in this manual have different analog I/O and
communications network options. All include 24V nominal digital inputs
and digital outputs and RS-485 communications. Connections are
through one of several versions of I/O Terminal Board accessible under
the wiring compartment cover. This section describes digital and analog
I/O connections, as well as connections for an optional holding brake.

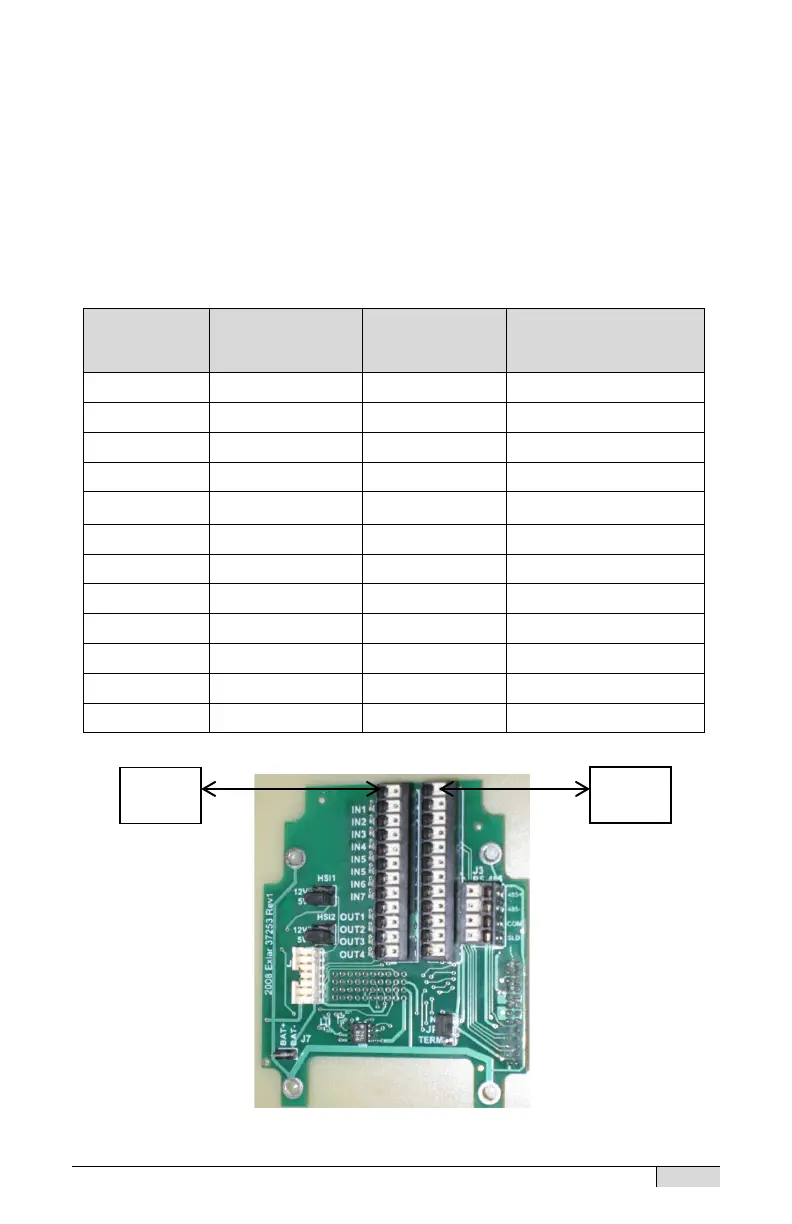

Terminal Board Connections for Digital and Standard Analog I/O
These connections are the same on all I/O and Comm options.
J1
Terminal #
Function
J2
Terminal #
Function
1
INPUT 1
1
Field I/O+ (+24V)
2
INPUT 2
2
Field I/O comm
3
INPUT 3
3
Analog In +
4
INPUT 4
4
Analog In -
5
INPUT 5
5
PE (Shield)
6
INPUT 6
6
Analog Out +
7
INPUT 7
7
Analog Out -
8
INPUT 8
8
PE (Shield)
9
Output 1
9
Field I/O+ (+24V)
10
Output 2
10
Field I/O comm
11
Output 3
11
Field I/O+ (+24V)
12
Output 4
12
Brake + 24 V
J1
Pin 1
Wire Size: 24-16ga / 0.2–1.5mm
2
J2
Pin 1
