Curtiss-Wright | Tritex II AC 90, 115 Rev. X PN39892 7/12/22
69
4-20 mA Output Specifications:
Description
Specification
Output Current Range
0-20.5 mA
Load Range
200 to 1100 Ohms (see table above)
Output resolution
12 bits
Update rate
1.0 msec

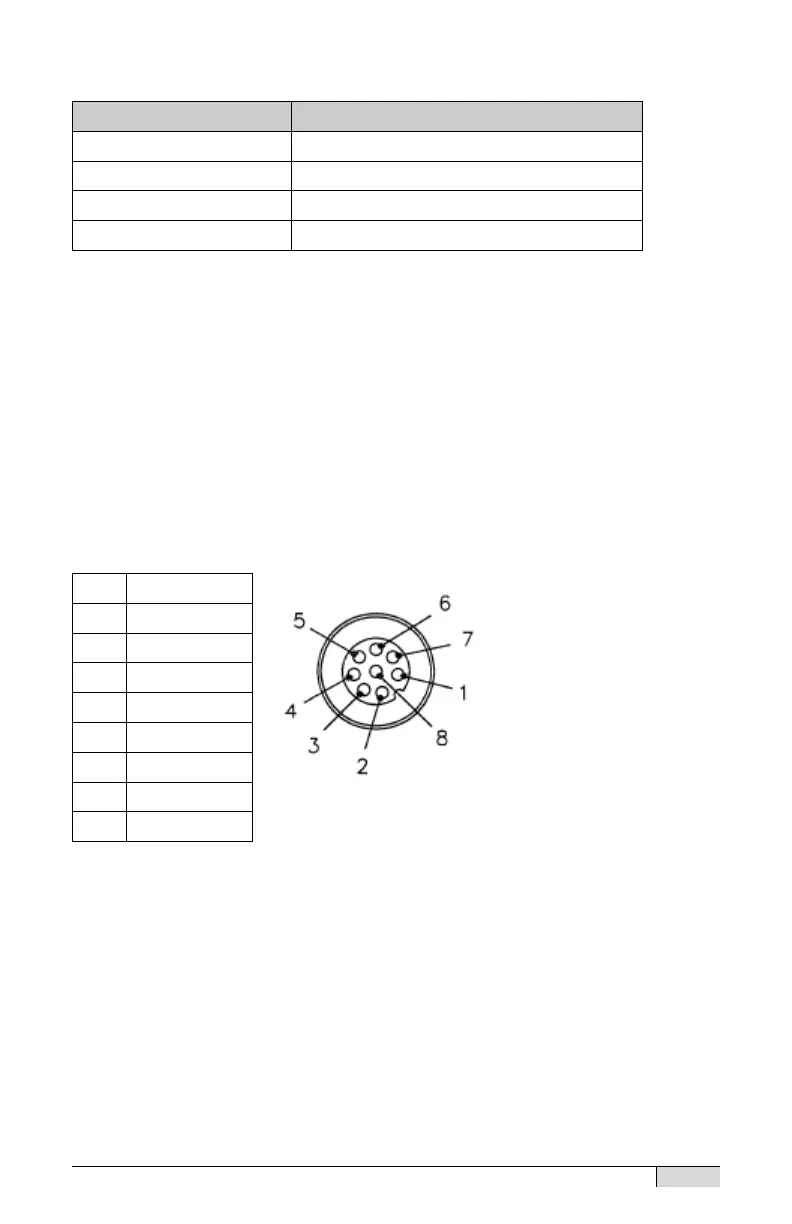

ABZ Option, Encoder Output
The ABZ, encoder output option is only available when encoder
feedback option is also selected. With these options the encoder signals
used by the Tritex for motor position feedback, the A, B and Index
channels, are also provided for external connection via an 8 pin M12
connector. These outputs are not isolated, pin 8 is connected to 0 volts
or logic common of the Tritex logic supply which is referenced to PE.
There must not potential difference between this signal and the 0v signal
of the encoder receiver it is driving.
The ABZ Option is not available in combination with 4-20mA (IA4) or
CAN Open or Absolute Feedback (AF).
Pin
Signal
1
A +
2
A-
3
PE
4
B+
5
B-
6
I+
7
I-
8
Vss (0 V)
