Curtiss-Wright | Tritex II AC 90, 115 Rev. X PN39892 7/12/22
71

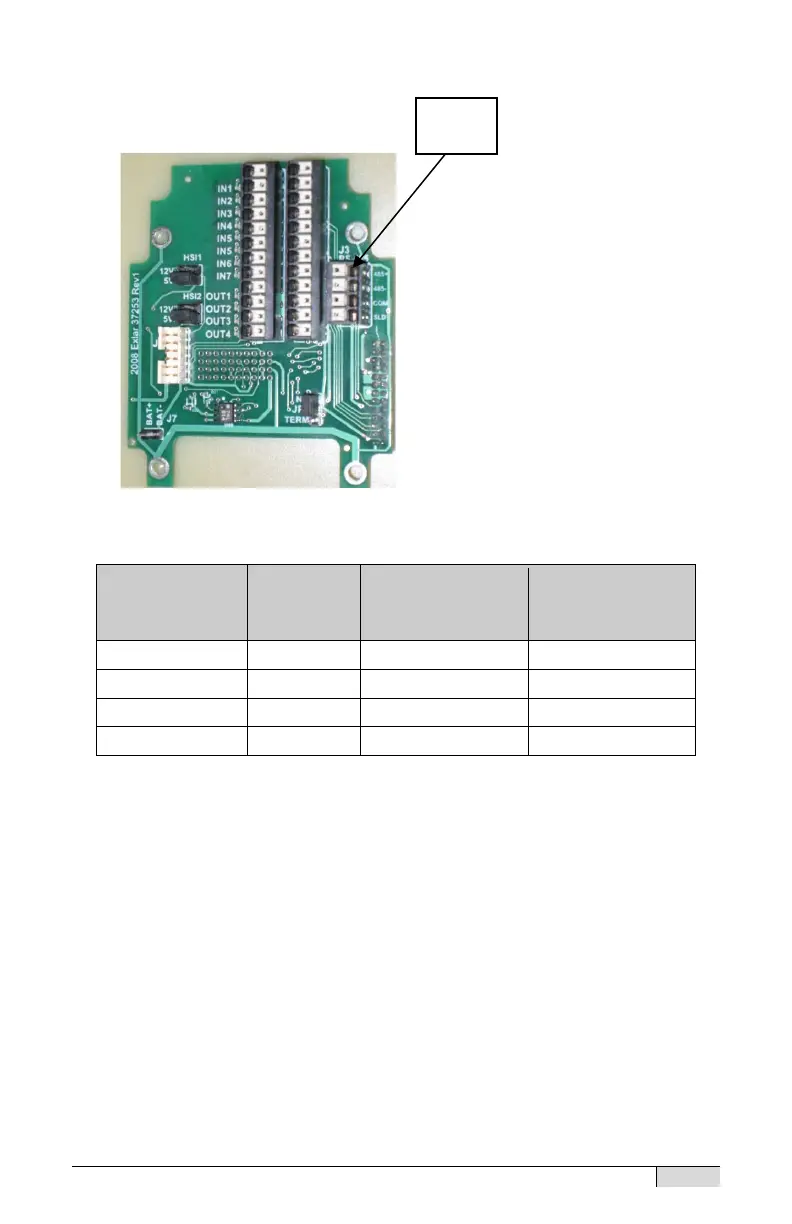

Function
8mm
Pin
number
Wire color for
TTCOM
J3
Terminal #
485+
1
Brown
1
485-
3
Blue
2
485 COM
4
Black
3
Shield
2
Drain
4
J3
Pin 1
