10.3 Alignment parameters


Referring to the front of the black mark, the value of “Black Mark Distance” value varies from -90.0 mm minimum and 23.0
mm maximum. If the “Black Mark Distance” value is set to 0, the alignment point is set at the beginning of the black mark.

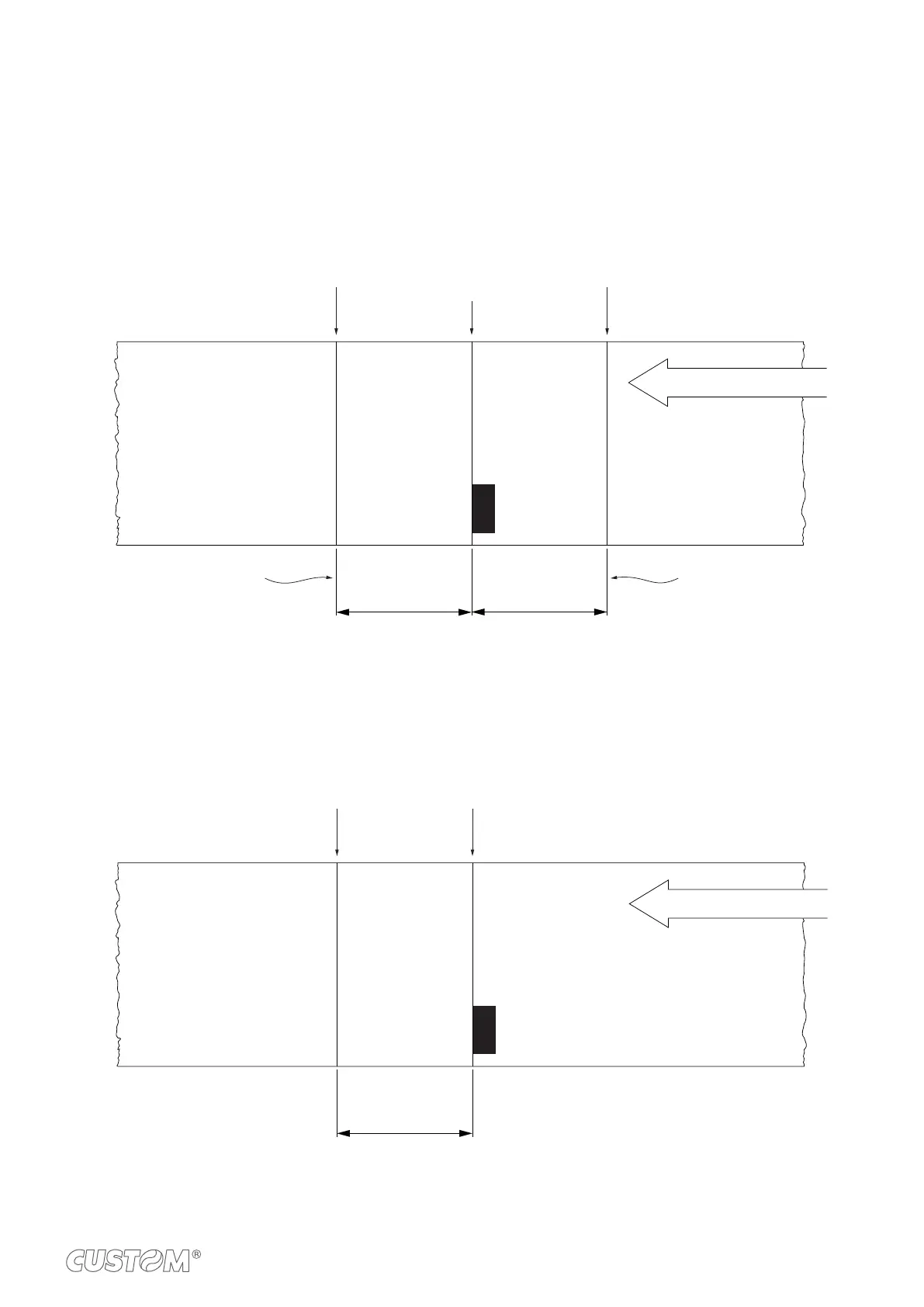

Alignment
point:
black mark front
Alignment
point
negative values of
“Black Mark Distance”
0
-
PRINTING DIRECTION
positive values of
“Black Mark Distance”
+
Alignment
point

(“Black Mark Distance” = + A):
Edge of the
black mark
0
PRINTING DIRECTION
A+
Alignment
point
69
