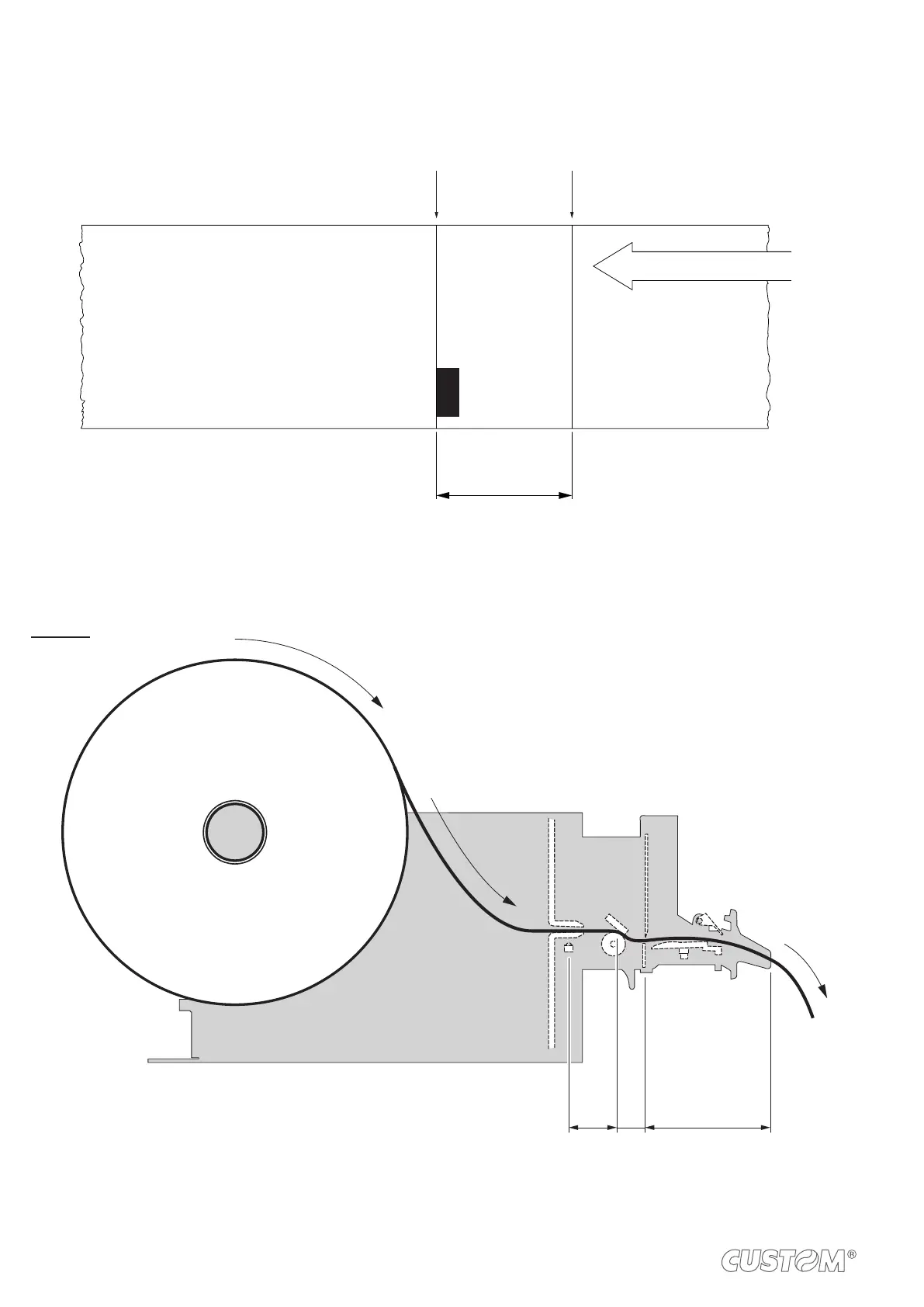

To set a negative value of the “Black Mark Distance” parameter is useful in cases where the alignment point refers to the
black mark printed on the previous ticket. In the following images, the value of “Black Mark Distance” parameter is set to -A.
Alignment
point
0
-A
PRINTING DIRECTION
Edge of the
black mark
in millimeters of theoretical paper path) between the alignment sensor, the printhead (printing line), cutter (cutting line).
Model A
A CB
A = distance between printhead and alignment sensor = 32.5 mm
B = distance between printhead and cutter = 10.5 mm
C= distance between cutter and paper outlet = 53.5 mm
70
