10.3 Alignment parameters

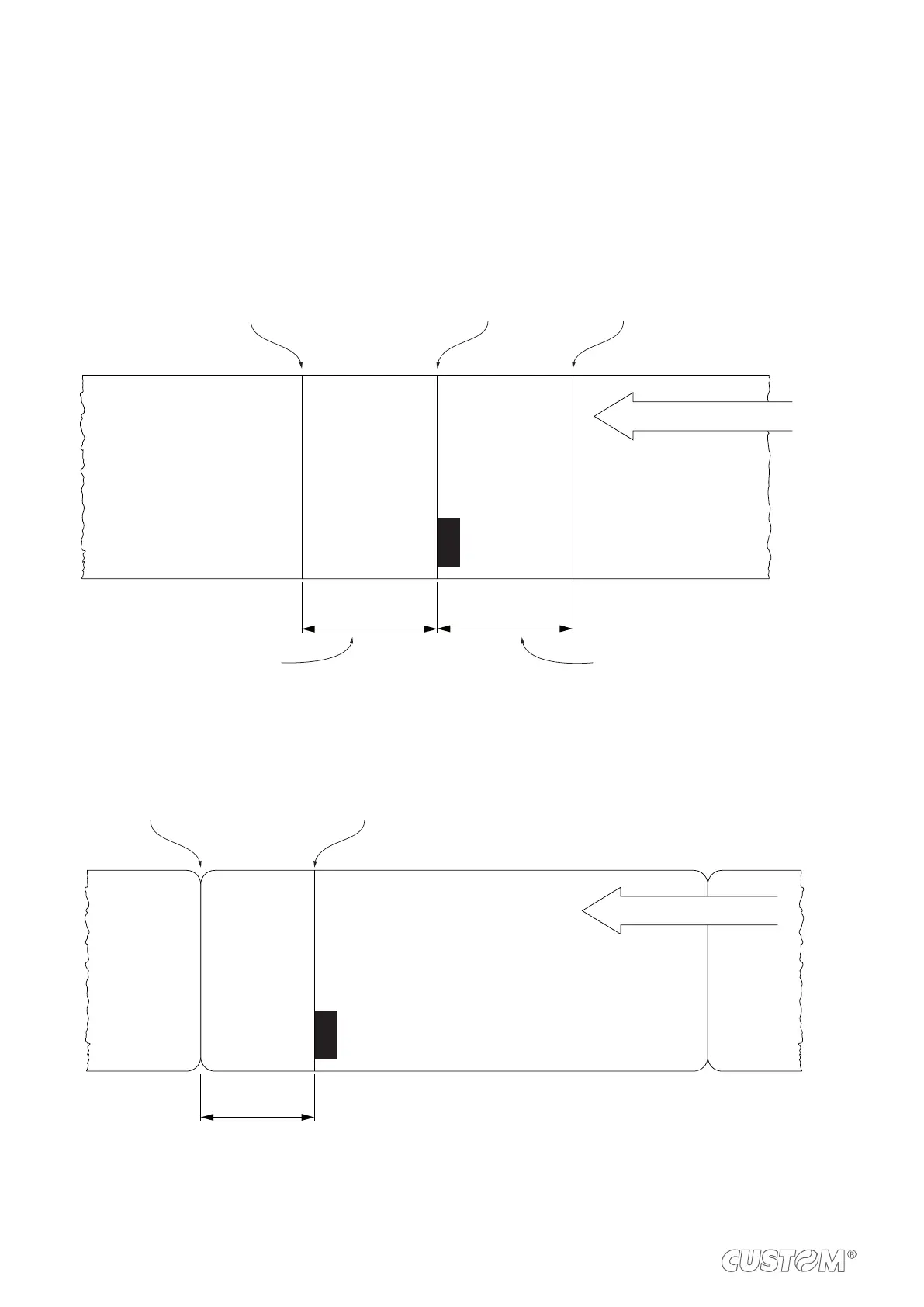

Referring to the front of the notch, the value of “Notch Distance” value varies from -5mm minimum and 99.9mm maximum.
If the “Notch Distance” value is set to 0, the alignment point is set at the beginning of the notch.
0
-
PRINTING DIRECTION
+
Alignment
point:
notch front
Alignment
point
negative values
of “Notch Distance”
positive values
of “Notch Distance”
Alignment
point
Distance” = + A):
0
PRINTING DIRECTION
A+
Notch frontAlignment point
