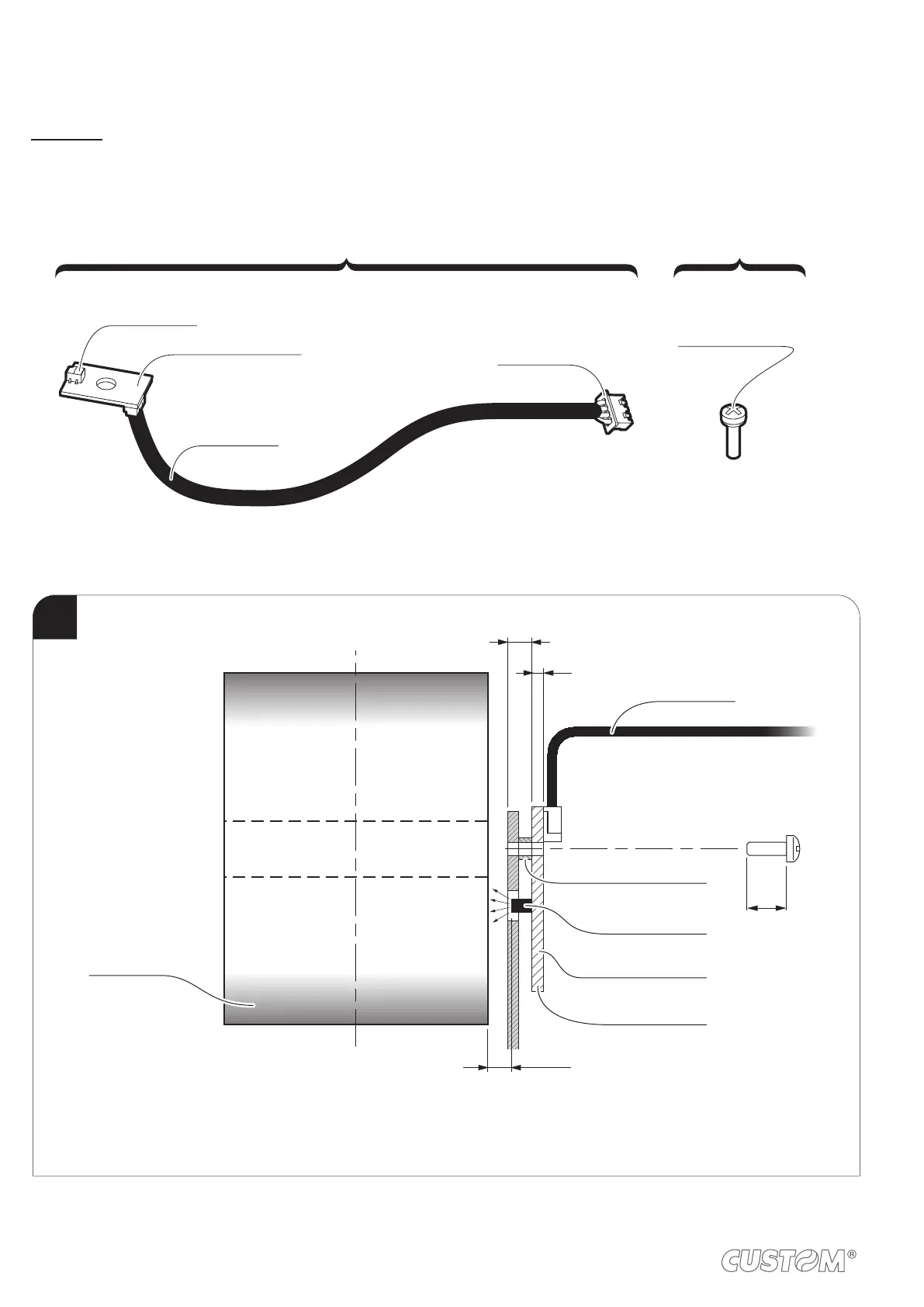

3.2 Near paper end sensor
KPM180H
supplied.
MATERIAL INCLUDED
MATERIAL NOT
INCLUDED
NPE sensor
NPE sensor board
Connector
NPE wiring
Fixing screw M3
For the assembly procedure, proceed as follows:
1÷6 mm
B
A+B
A
NPE sensor board
Spacers
NPE sensor
Support
NPE wiring
Paper roll
Fix the near paper end sensor board to the support by using an M3 screw not included.
For the correct functioning of the near paper end sensor, comply with the measures specified.
1
34
