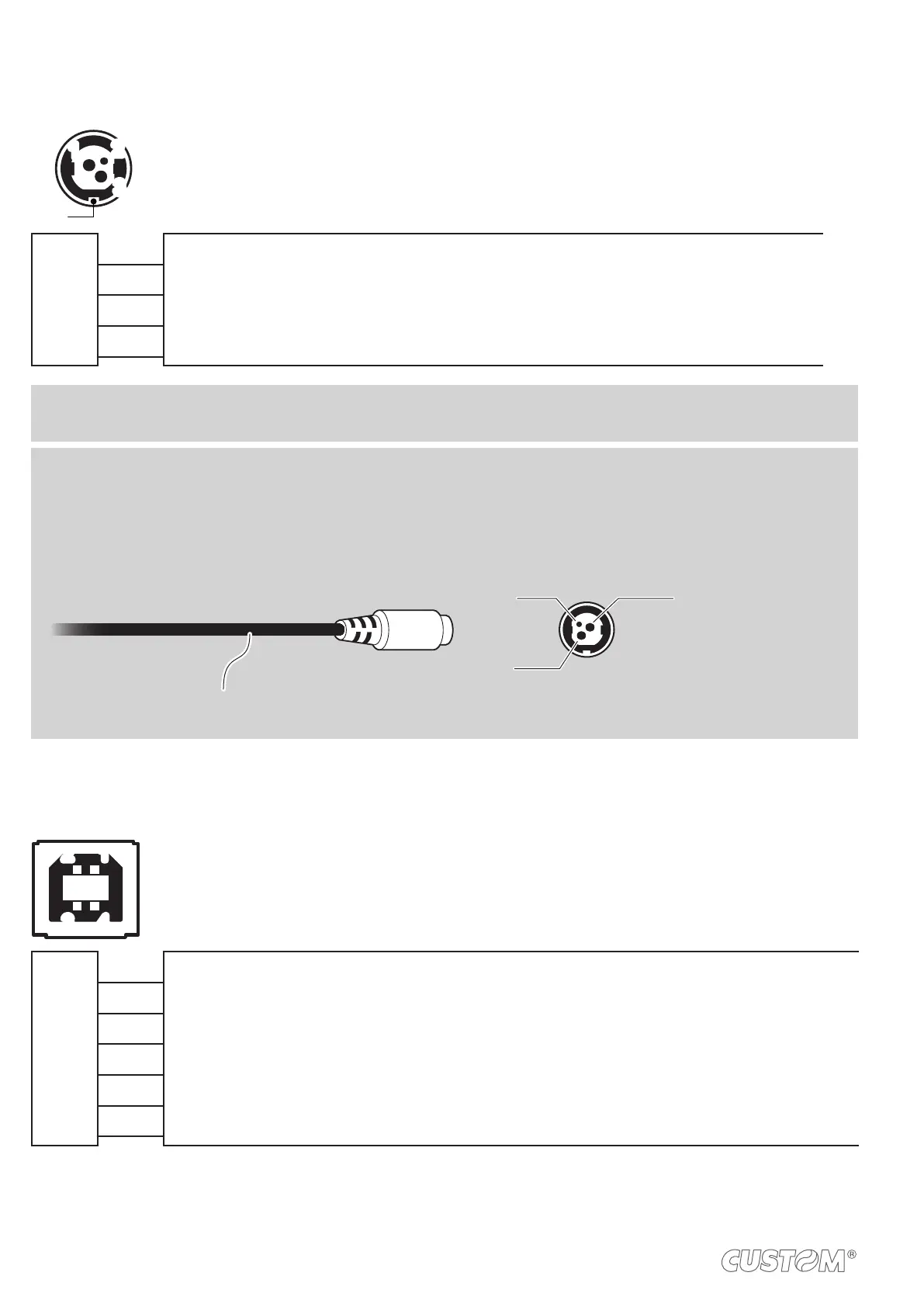

3.4 Pinout

POWER SUPPLY

Tripolar female connector

J20

1 GND

2 +24 Vdc

3 GND

4 Frame GND

ATTENTION:

Respect power supply polarity.

NOTE:

Power supply cable



Tripolar male connector

+24 V

n.c.

GND

Power supply cable

3 4

USB INTERFACE

Female USB type B connector

1 USB0-VBUS (in)

2 USB0_D- (in/out)

3 USB0_D+ (in/out)

4 GND

SH1 SHIELD

SH2 SHIELD
