3 INSTALLATION

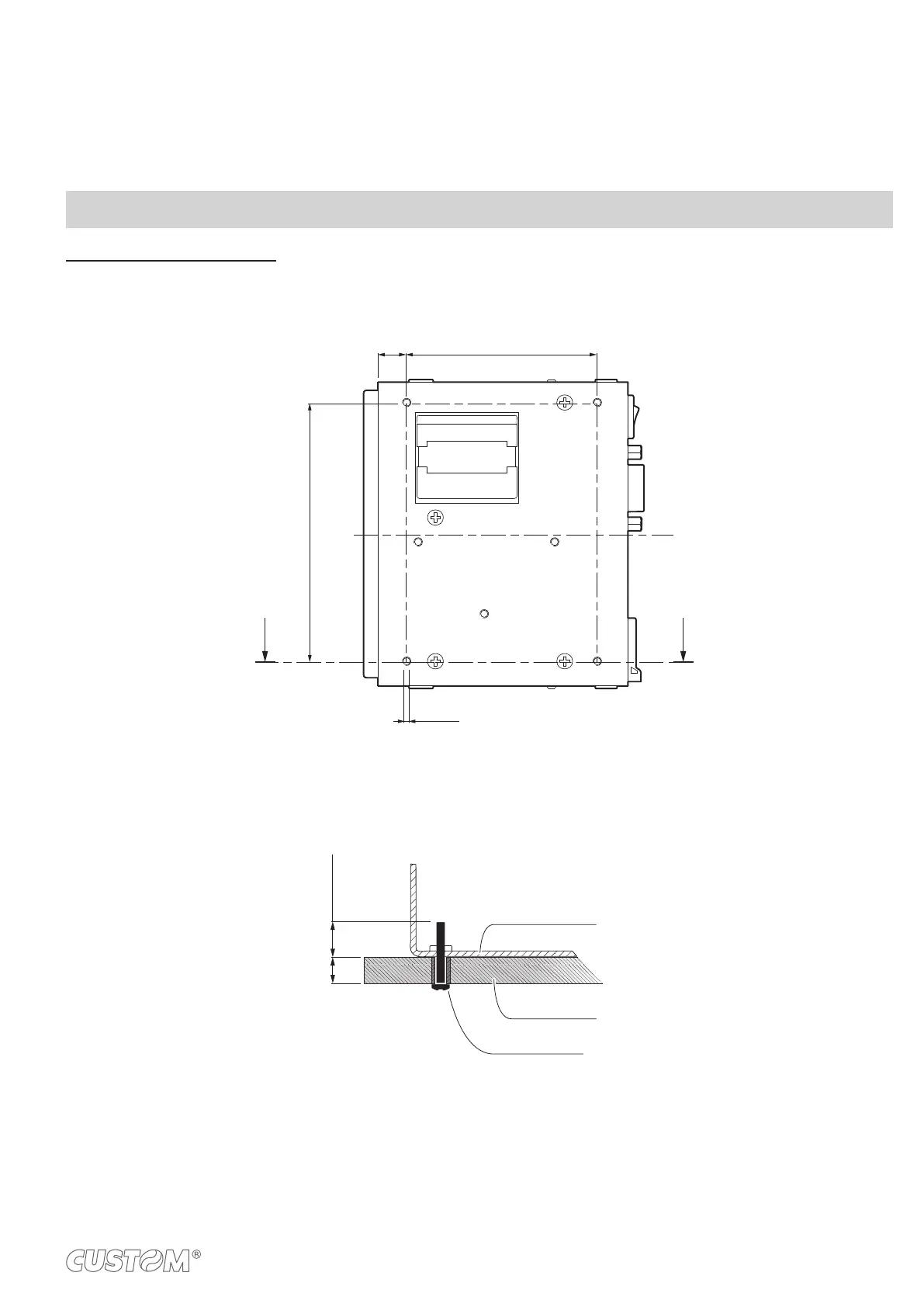

3.1 Fastening
KPM180H (standard models)
use four M3 screws.
90
6610
4 x M3
AA
max 10SP
Section A-A
Device chassis
Fixing panel
Fixing screw
For example, if panel thickness is 10mm (Sp = 10mm), the maximum length for screws will be 20mm.
29
