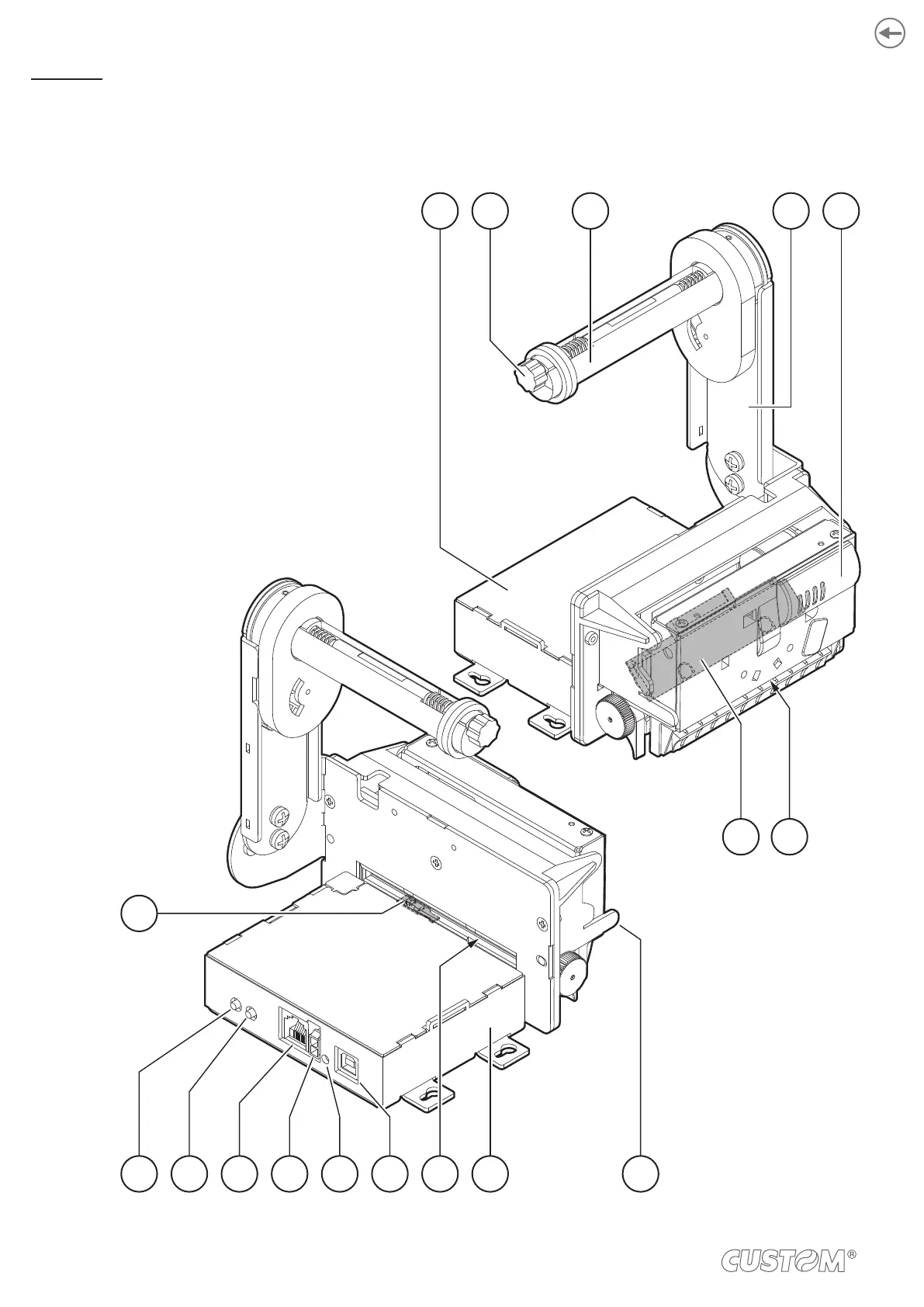

TL80 STD
1. Board cover
2. Paper width adjustment
3. Paper roll holder pin
4. Paper roll holder
5. Cutter group
6. Paper out
7. Printing head
8. Unlocking hook for cutter group
9. Device chassis
10. Paper in
11. USB port
12. Status LED
13. Power supply port
14. Serial port
15. FEED key
16. PRINT key
17. Paper in presence
and black mark sensor
1 4
7 6
52 3
16 15 14 13 12 11 8910
17
