Custom Audio Electronics VKP80II - Paper Roll Positioning Guidelines

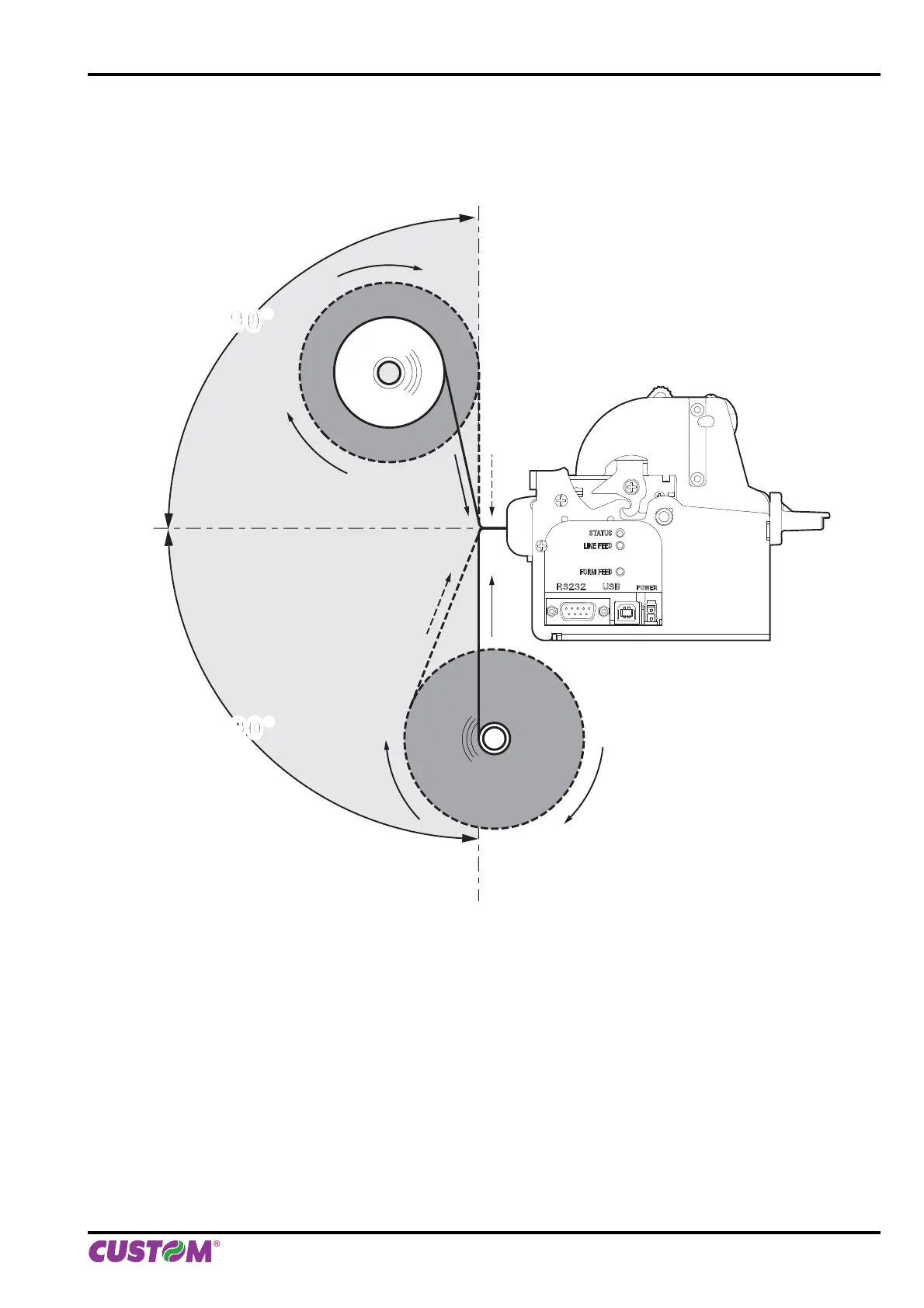

The following fi gure gives the limit positions of the paper roll related to the printer for a correct paper loading without
a paper roll holder support.
The direction of the paper will always form a maximum angle of 90 ° or -90 ° with the insertion plane of paper inside
the printer.
90°90°
-90°
-90°
4. OPERATION
User Manual VKP80II 25
