Custom Audio Electronics VKP80II - Printer Dimensions with Roll Holder

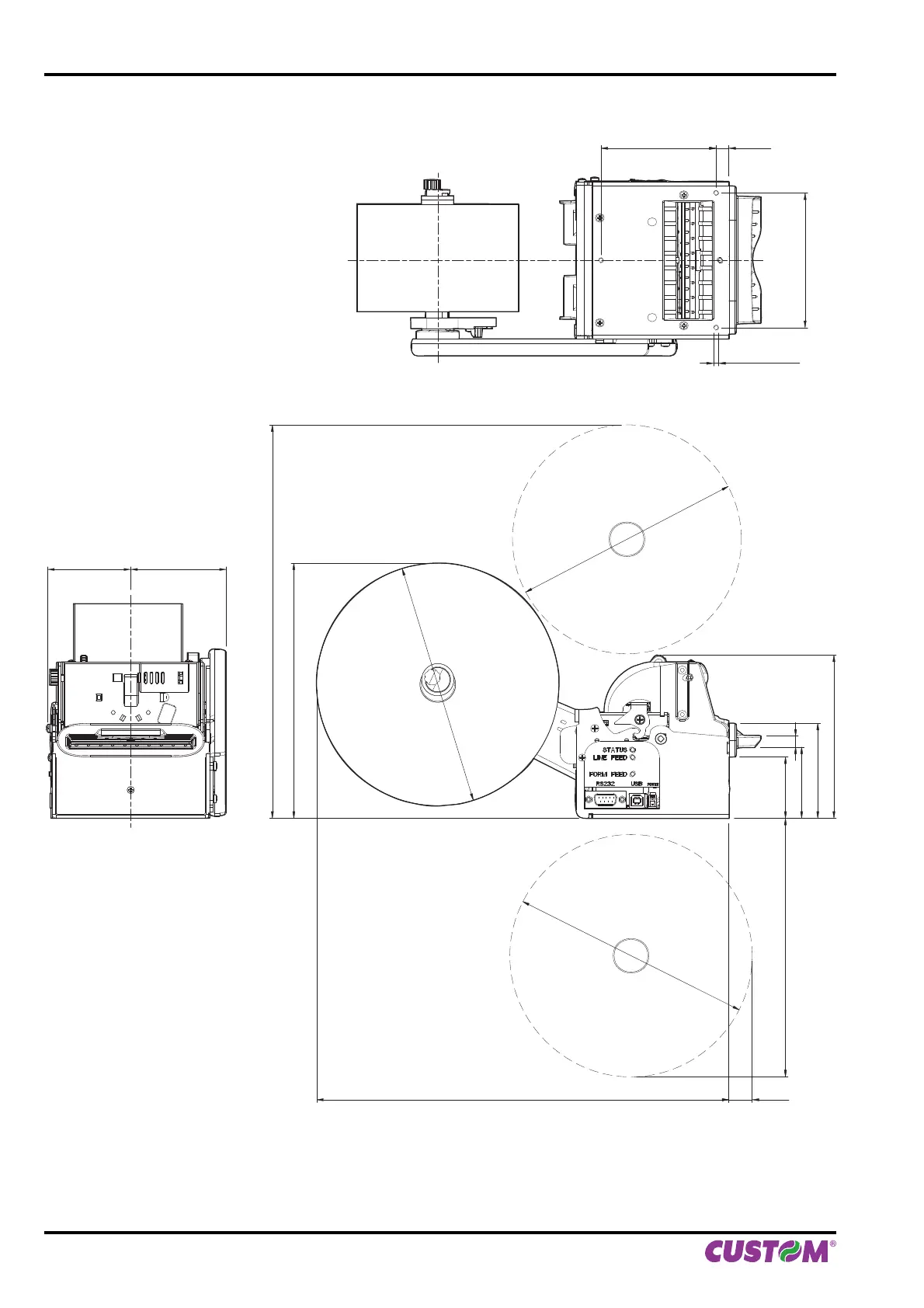

The following fi gure shows the printer dimensions with the paper roll holder assembled:
7161.8
85.5
+0.5
-0.5
+0.3
-0.3
9.5
100
M4; no. 3 holes
Ø180
Ø170
Ø180
292.1
189.4
306.2 17.3
192
45.5
70.5
121.2
52.9
8.1
