Custom Engineering B202H - Printer Components: External Views

2.2 Printer components: external views

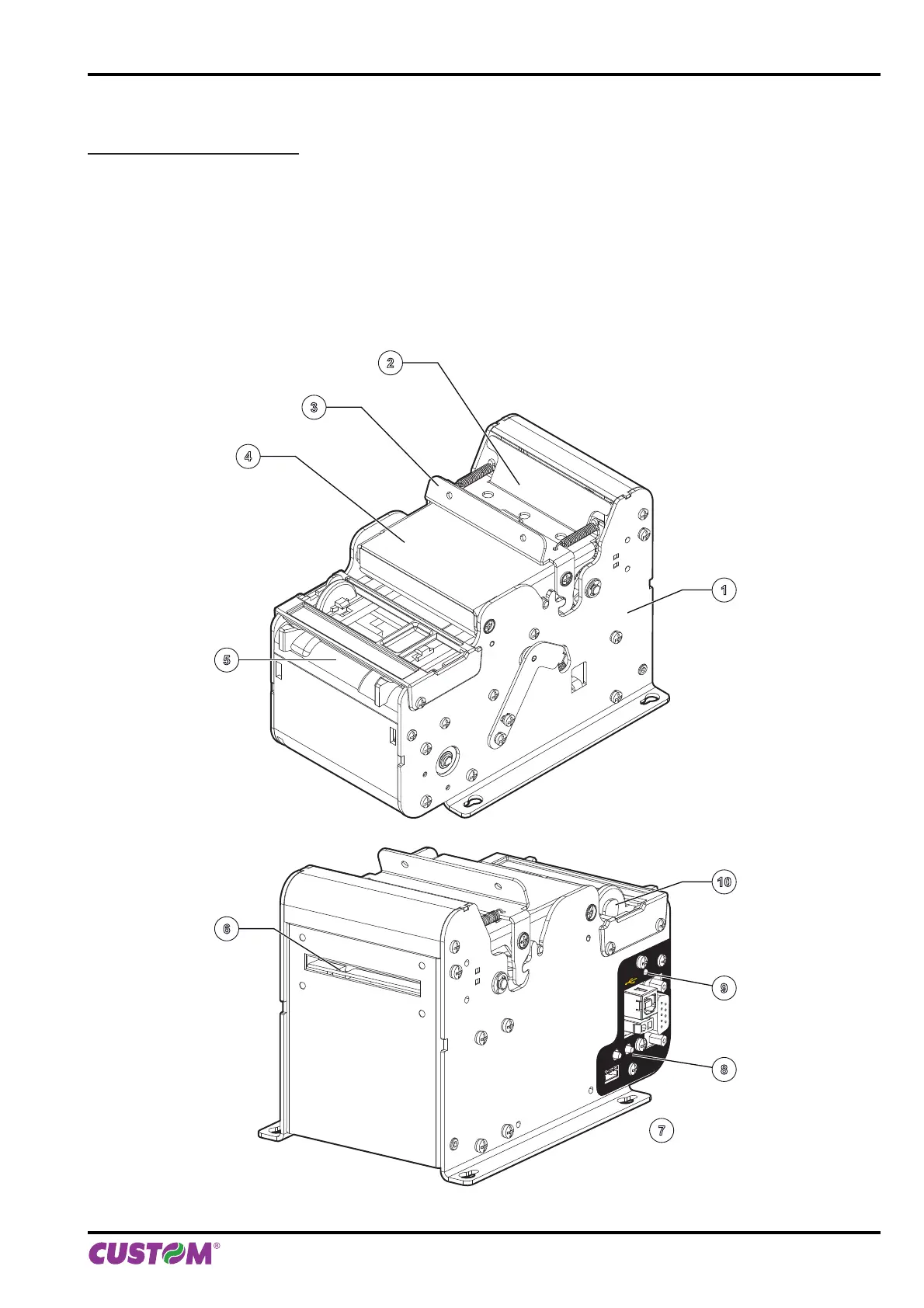

KPM150H (standard models)
1 - Printer chassis 6 - Paper outfeed
2 - Cutter unit 7 - LINE FEED key
3 - Hook of printing head group 8 - FORM FEED key
4 - Printing head group 9 - Status led
5 - Paper input 10 - Lever of paper mouth guide (adjustable)
STATUS
NEAR PAPER
END
FF
LF
6
10
9
8
7
5
1
2
3
4
2. DESCRIPTION
User manual KPM150H-AERO 11
