3.2 Additional near paper end sensor
KPM150H

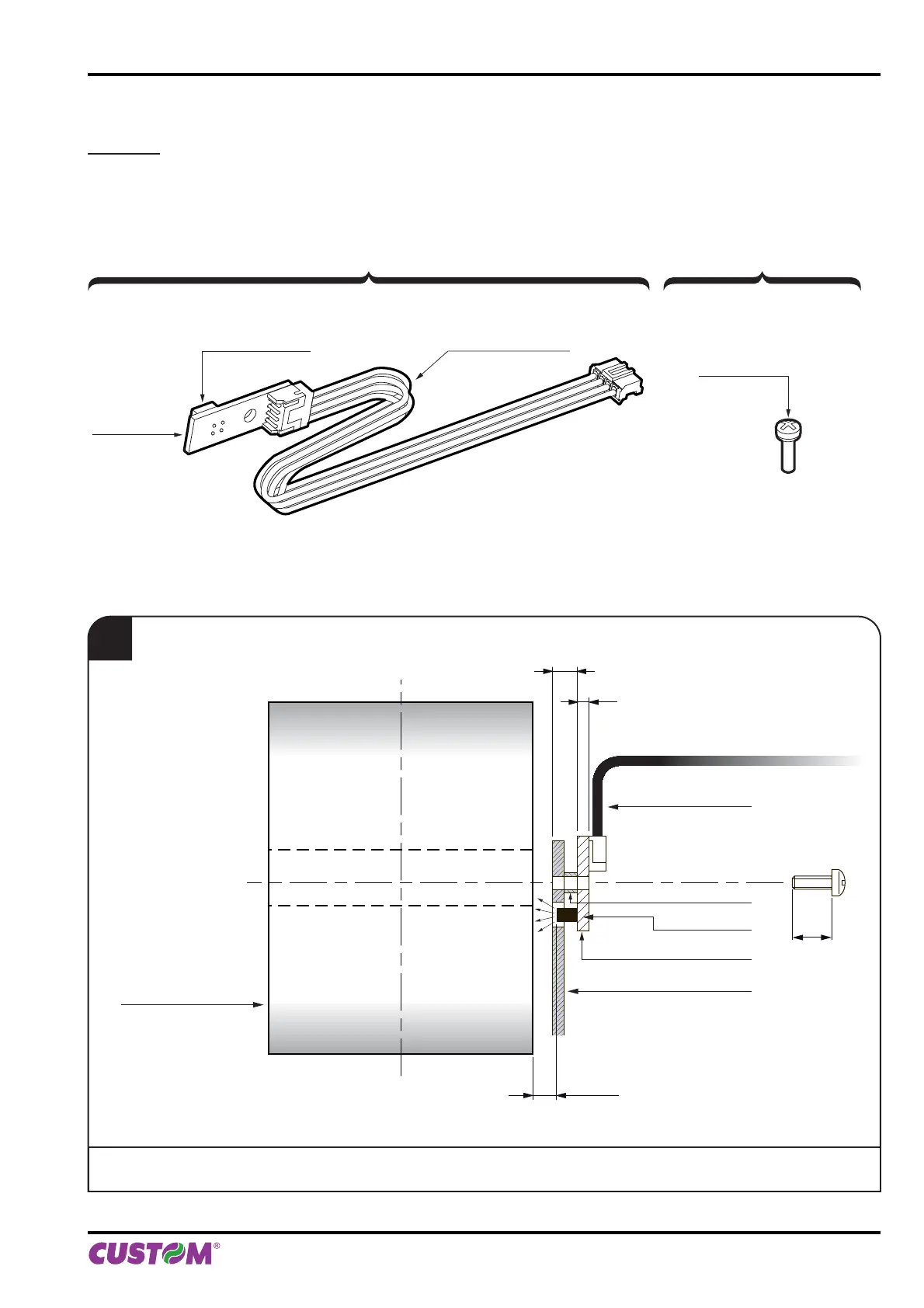

The printer includes an additional near paper end sensor with wiring (see following fi gure). To fi x the sensor use an
M3 screw not supplied.
NPE sensor
NPE
sensor board
NPE wiring
Fixing
screw M3
MATERIAL INCLUDED
MATERIAL NOT
INCLUDED
For the assembly procedure, proceed as follows:
1
Fix the near paper end sensor board to the support using an M3 screw not included.
For the correct functioning of the near paper end sensor, comply with the measures specified
Spacer
Paper roll
Support
NPE wiring
B
A+B
A
1÷10 mm
NPE sensor board
NPE sensor
3. INSTALLATION
User manual KPM150H-AERO 27
