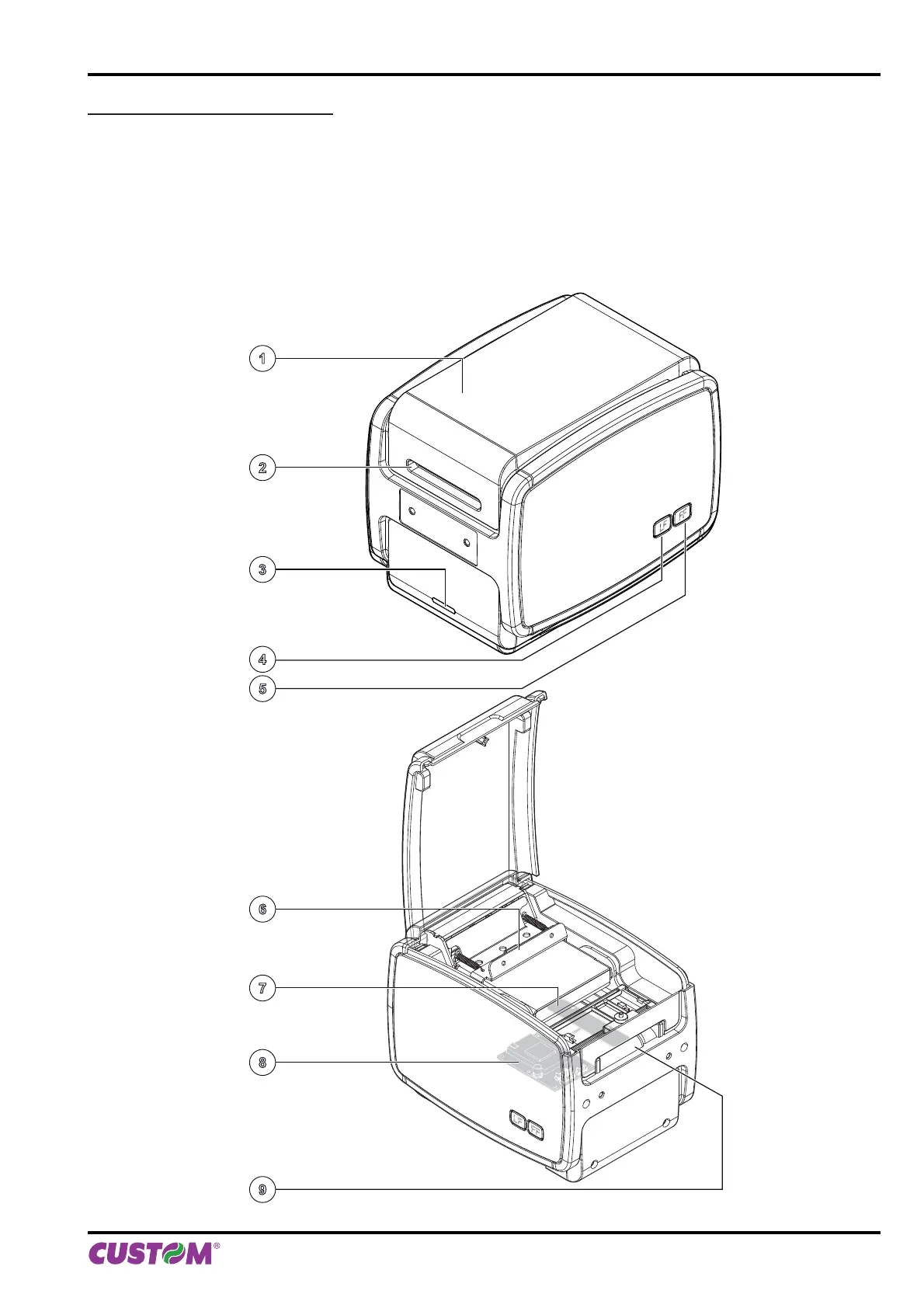

B202H (models with RFID reader)
1 - Printer cover 6 - Hook of printing head group
2 - Paper output 7 - UHF RFID antenna
3 - Status led 8 - UHF RFID control board
4 - LINE FEED key 9 - Paper input
5 - FORM FEED key
LF
FF
LF
FF
1
3
2
4
5
FF
LF
6
9
8
7
2. DESCRIPTION
