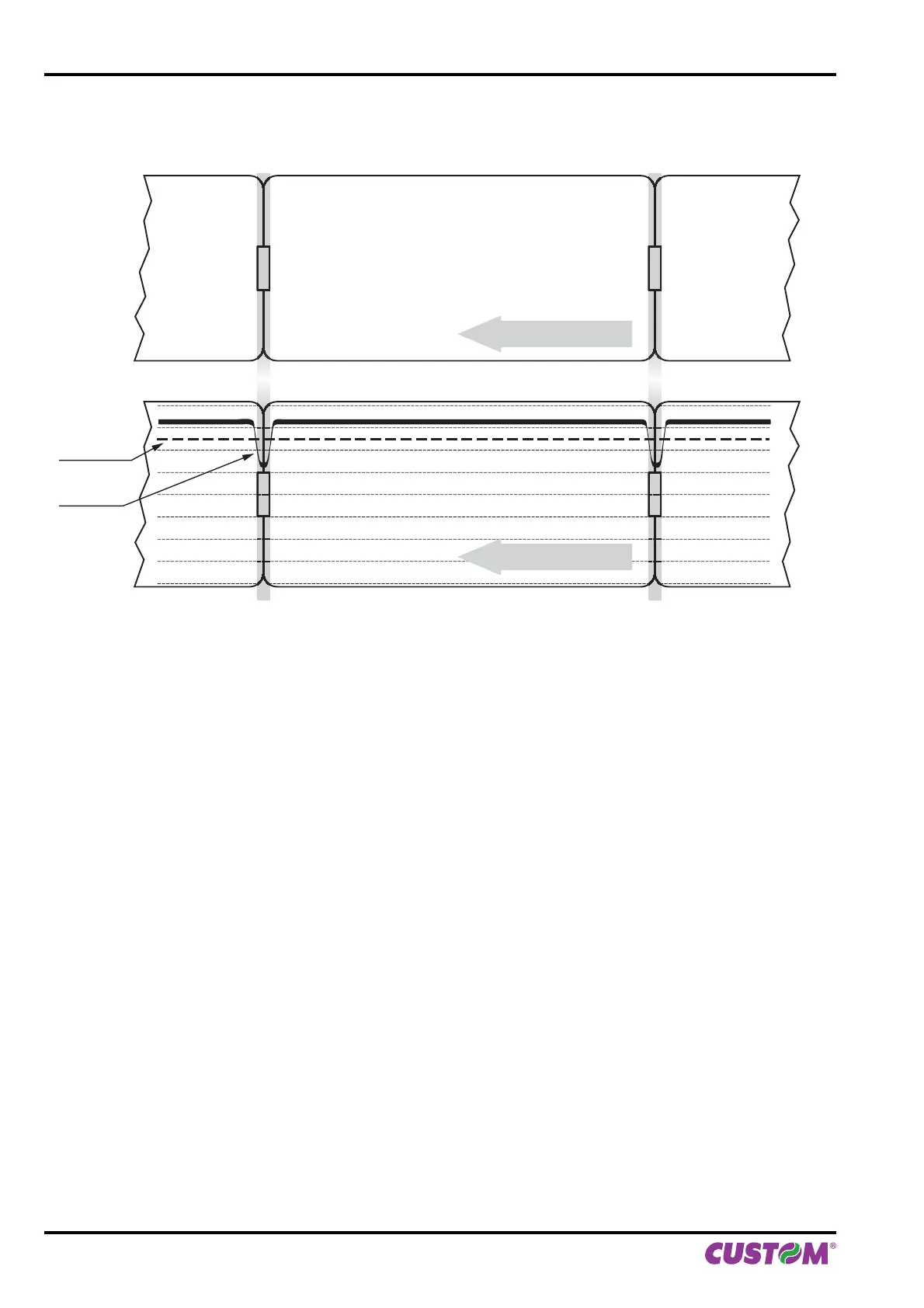

The following fi gure shows an example of paper with holes: the outgoing voltage is constant while passing the paper
between two holes and presents a variation at each hole.
In this case, the optimal value for the “Notch/B.Mark Threshold” parameter is placed about half of the variation.
“Notch/B.Mark
Threshold”
NON-THERMAL SIDE
THERMAL SIDE
variation
