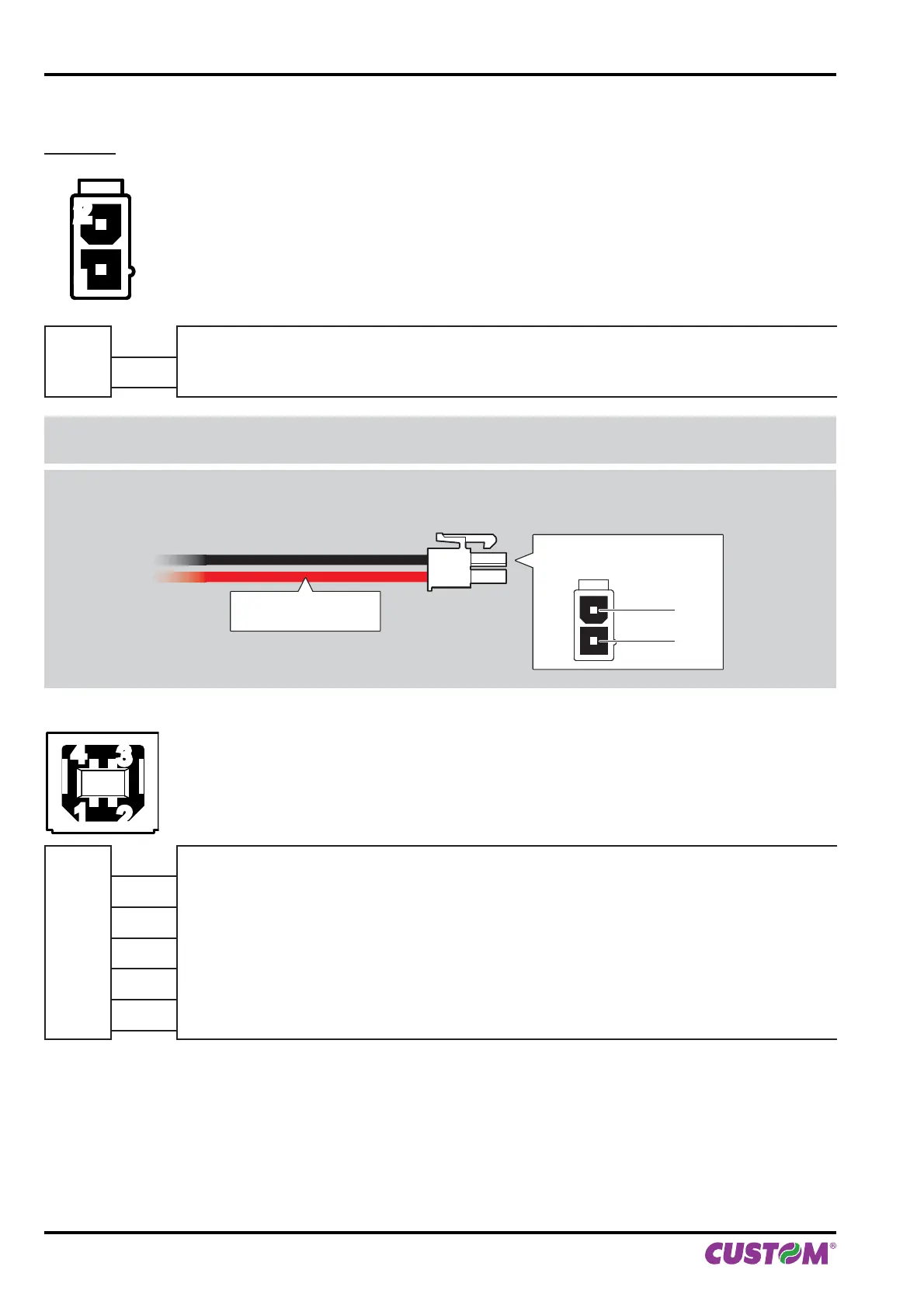

3.4 Pinout
KPM150H
1
2
POWER SUPPLY
Male Molex connector (no. 39-28-1023)
J13
1 +24 Vdc
2 GND
ATTENTION:
Respect power supply polarity.
NOTE: Power supply cable
The following fi gures show the connector pinout of the power supply cable for the device:
Power supply cable for
KPM150H
Female Molex connector
series 5557 (no.39-01-3022)
GND
+24 V
11
44
22
33
USB INTERFACE
Female USB type B connector
J1
1 USB-VBUS (out)
2 PD -0
3 PD +0
4 GND
SH1 SHIELD
SH2 SHIELD
