Custom Engineering KPM150H - Page 12

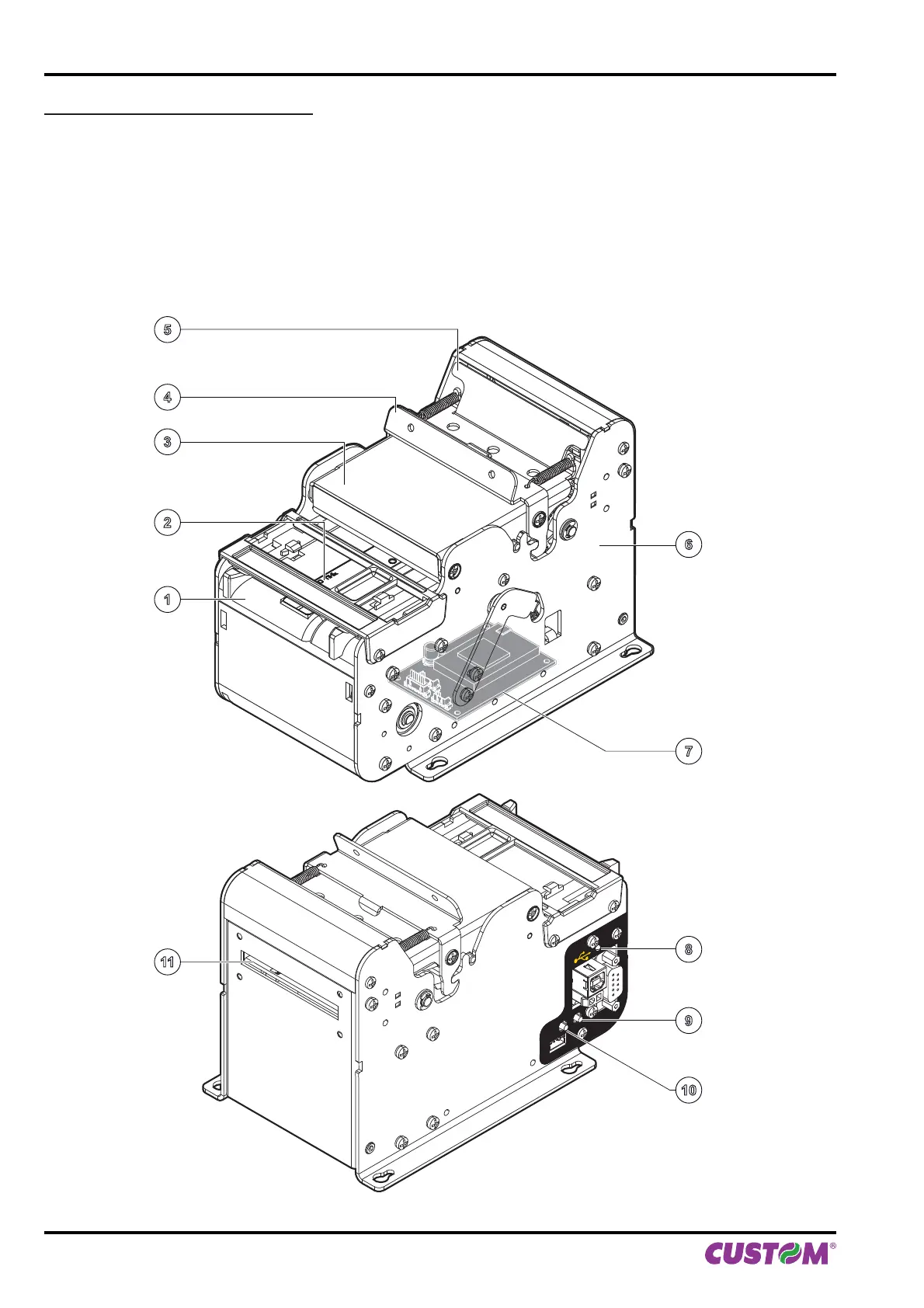

KPM150H (models with RFID reader)
1 - Paper input 7 - UHF RFID control board
2 - UHF RFID antenna 8 - Status led
3 - Printing head group 9 - FORM FEED key
4 - Hook of printing head group 10 - LINE FEED key
5 - Cutter unit 11 - Paper outfeed
6 - Printer chassis
STATUS
NEAR PAPER
END
LF
FF
R
S
2
3
2
11
10
8
9
6
1
2
3
4
5
7
2. DESCRIPTION
