Custom Engineering KPM150H - Page 36

B202H
2
1
3
4

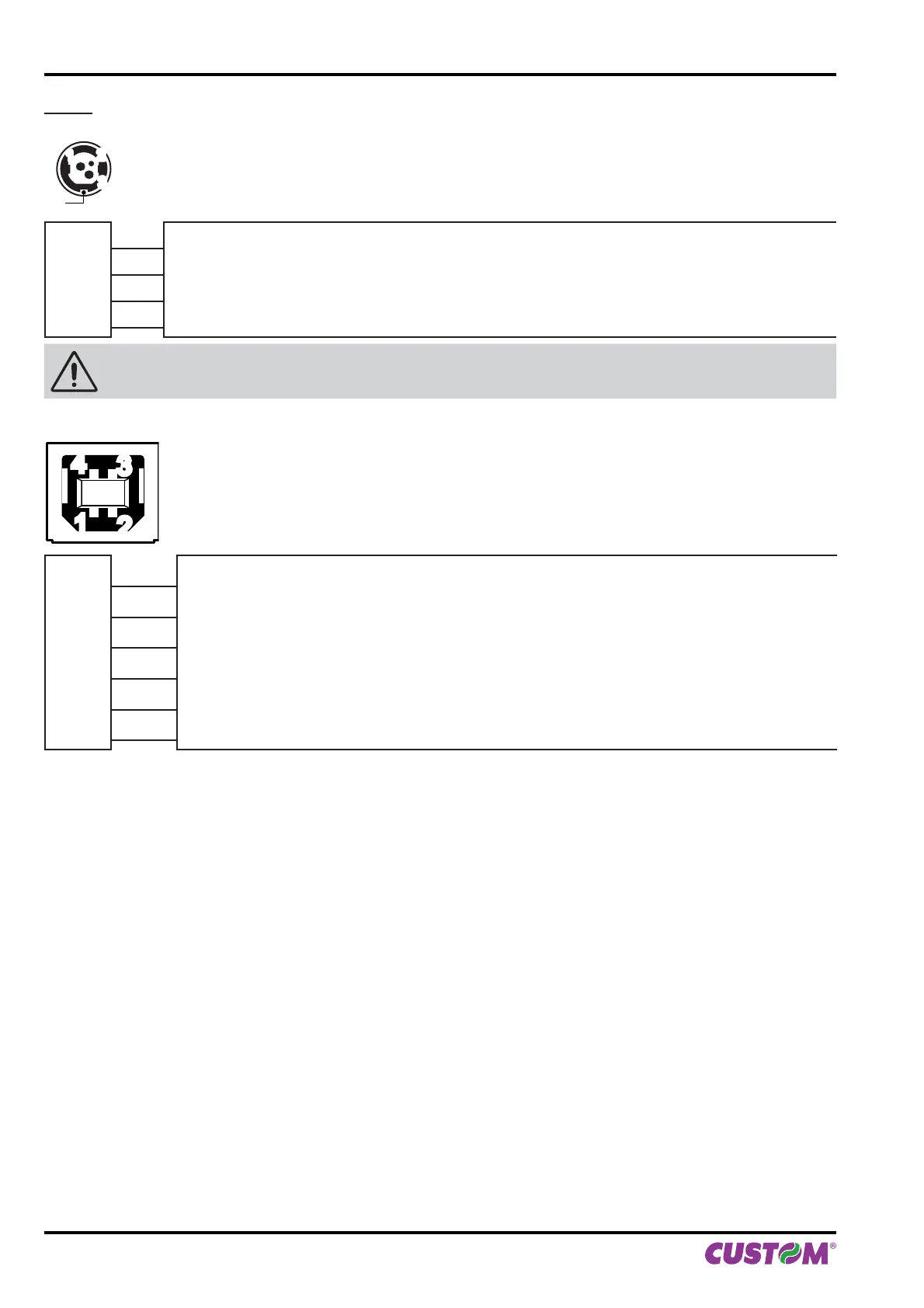

POWER SUPPLY
Tripolar female connector
J2
1 GND
2 +24 Vdc
3 GND
4 Frame GND
Warning:
Respect power supply polarity.
11
44
22
33
USB INTERFACE
Female USB type B connector
J4
1 USB-VBUS (out)
2 PD -0
3 PD +0
4 GND
SH1 SHIELD
SH2 SHIELD
3. INSTALLATION
36 KPM150H-AERO User manual
