KPM150H (models with RFID reader), B202H (models with RFID reader)

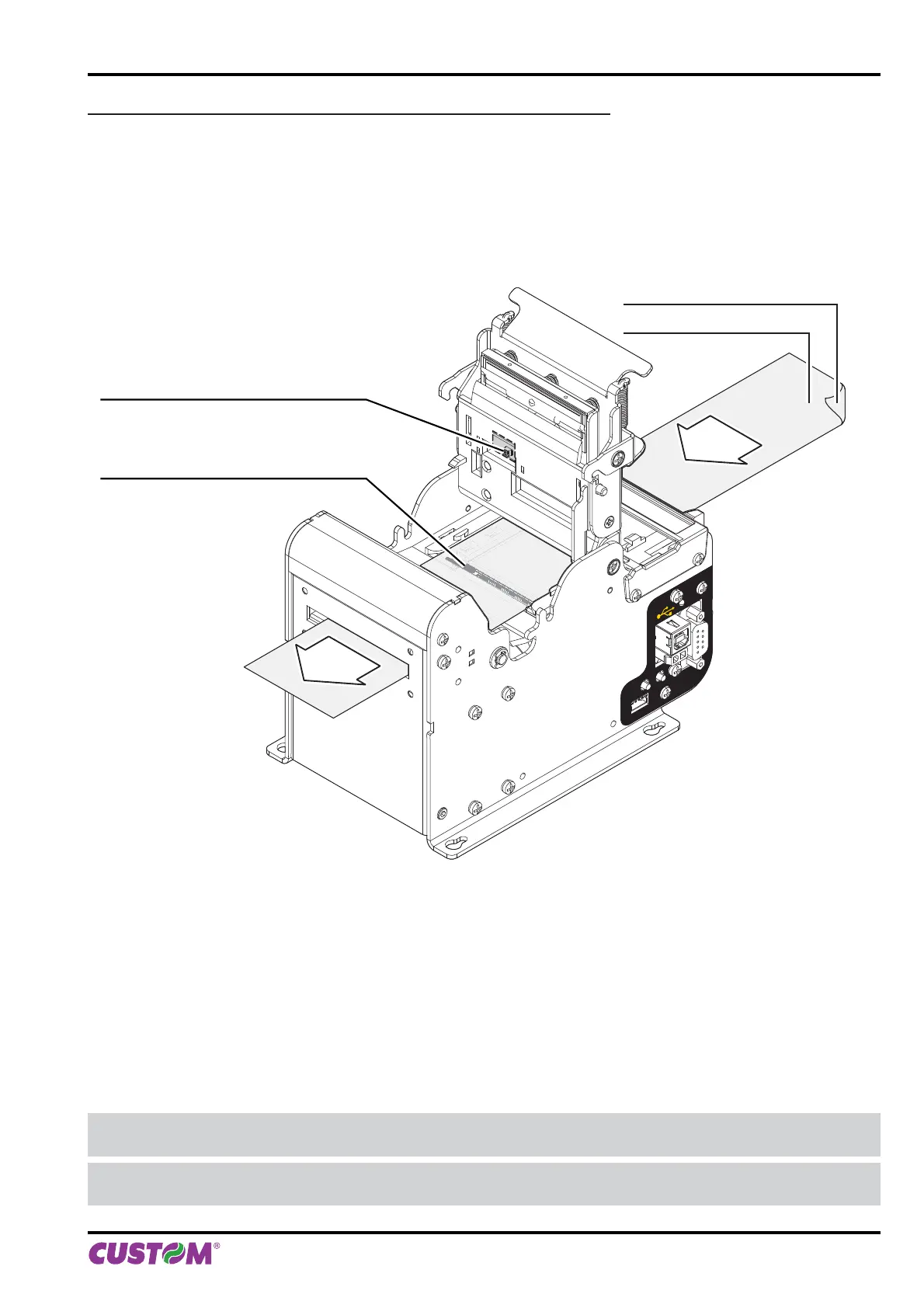

Printer is provided with two sensors for the notch detection both on the non-heat sensitive side (lower sensor) and on
the heat-sensitive side of paper (upper sensor) as shown in the following fi gure.
The “Notch/B.Mark Position” parameter of printer confi guration (see par.5.4) sets the position for the notch as follows:
• Notch positioned on the non-heat sensitive side: “Notch/B.Mark Position” = “Bottom”
• Notch positioned on the heat-sensitive side: “Notch/B.Mark Position” = “Top”
• Hole between tickets or gap between labels: “Notch/B.Mark Position” = “Transparence”
STATUS
NEAR PAPER
END
LF
FF
R
S
2
3
2
direction
of
paper feed
direction
of
paper feed
LOWER MOBILE SENSOR FOR NOTCH
UPPER SENSOR FOR NOTCH
HEAT SENSITIVE SIDE
NON-HEAT SENSITIVE SIDE
NOTE:
For ease of reference, for some models is represented only the printer group without the external plastic chassis.
NOTE:
For further information. about tickets with holes or labes with gap refer to Chapter 9.
4. OPERATION
User manual KPM150H-AERO 43
