B-1
EXCEL V+ OPERATOR MANUAL
D2325, REV A, 2/19

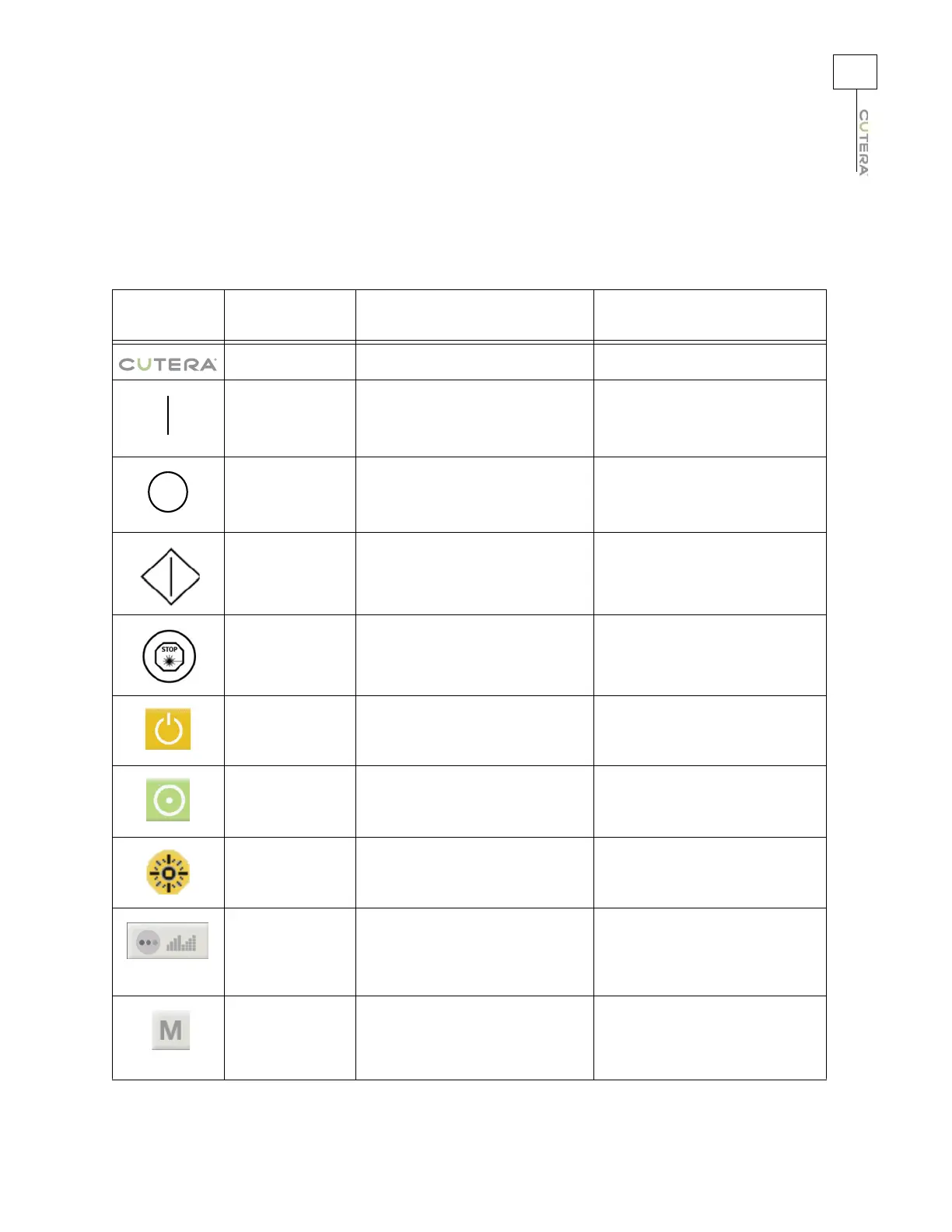

Appendix B - Symbols
This appendix describes the laser system symbols and their meanings.
Symbol
Standard
Reference
Description Location
Cutera logo Control panel
417-5007 Mains ON Rear panel (at circuit breaker) and
control panel (next to keyswitch)
417-5008 Mains OFF Rear panel (at circuit breaker) and
control panel (next to keyswitch)
417-5104 Momentary start Control panel (next to keyswitch)
DIN 18734 Emergency OFF Control panel (next to red button)
417-5266 Standby Touchscreen display
417-5264 Ready Touchscreen display
Cutera-defined Laser Emission Indicator Touchscreen display
Cutera-defined Aiming beam adjustment Touchscreen display
Cutera-defined Save/recall settings in memory
store
Touchscreen display
