20
EXCEL V+ OPERATOR MANUAL
D2325, REV A, 2/19

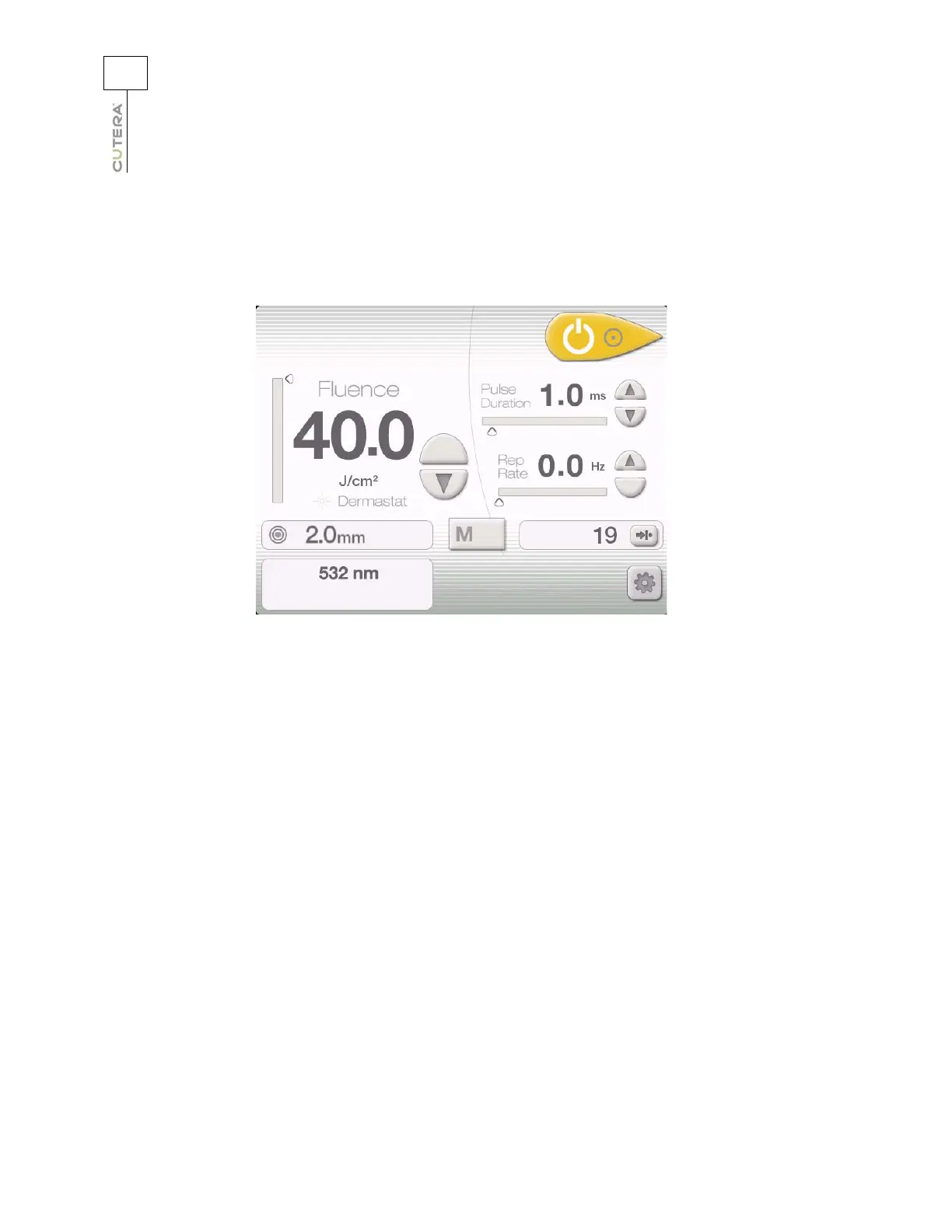

Dermastat Treatment Screen
When the Dermastat handpiece is connected to the console fiber receptacle, the Dermastat Treatment
Screen displays after the successful completion of the self-test routine at system start-up.
From the Dermastat Treatment Screen, you can:
• select the fluence, pulse duration, and repetition rate (refer to the User-selectable
Parameters topic)
• store and recall frequently used treatment parameters (refer to the Memory Storage topic)
• select the system status (refer to the System Status: STANDBY and READY Modes topic)
• view and reset the pulse counter (refer to the Displays and Indicators topic)
• go to the Information & Adjustment Screen (refer to Information & Adjustment Screen topic)
Dermastat Treatment Screen
