Displays and Indicators
The excel V+ system includes various indicators and controls to ensure safe and accurate operation.
On the CoolView Treatment Screen:
• A pulse counter records the total number of laser pulses that the system has fired since the
counter was last reset, and a (reset) button allows you to reset the counter.
• A temperature display shows the actual temperature of the CoolView handpiece sapphire
cooling window.
• A laser emission indicator illuminates when the system is set to READY and the footswitch
is pressed.
On the Genesis V Treatment Screen:
• A pulse counter records the total number of laser pulses that the system has fired since the
counter was last reset, and a (reset) button allows you to reset the counter.
• A temperature display shows the measured temperature of the target tissue.
• A laser emission indicator illuminates when the system is set to READY and the footswitch
is pressed.

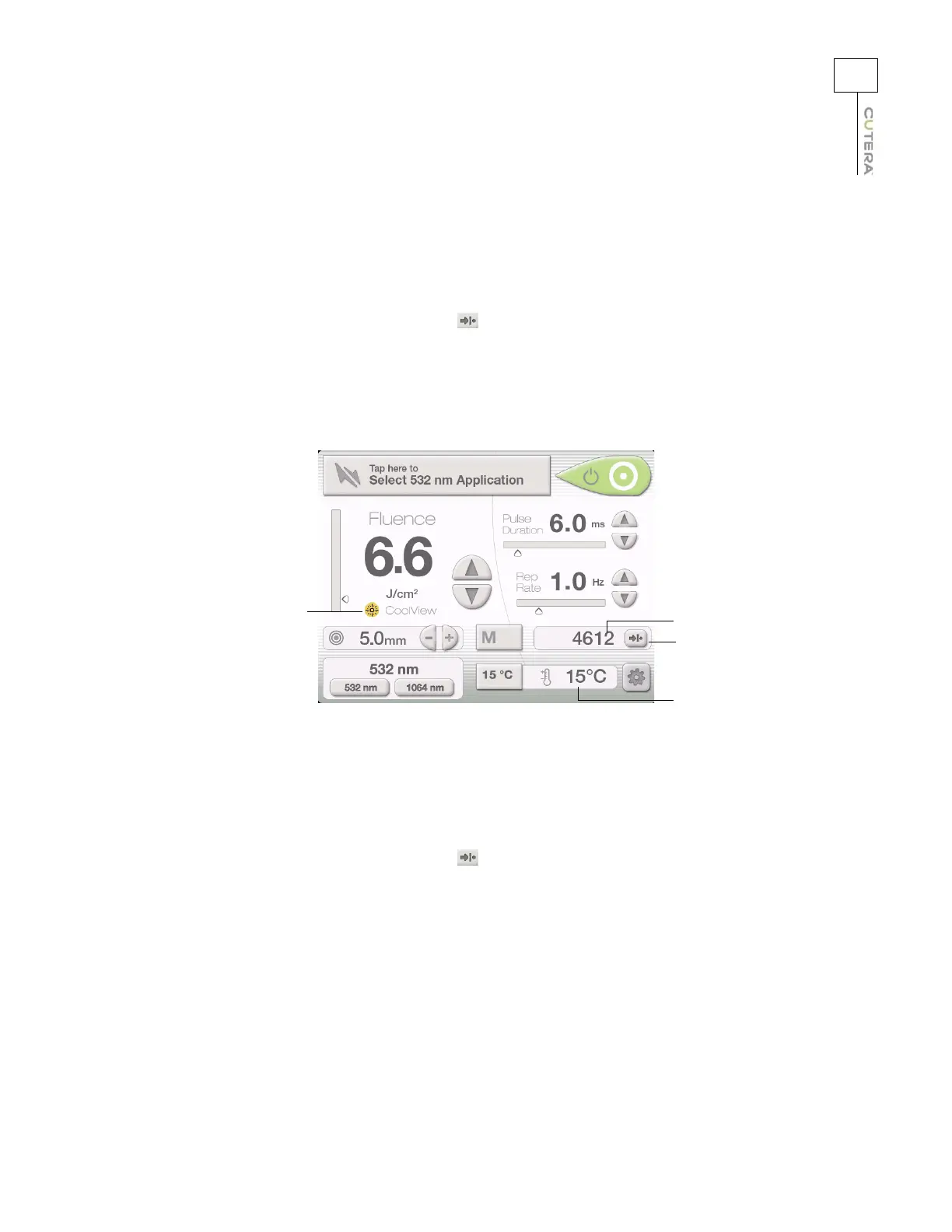

CoolView Treatment Screen
Pulse counter reset
button
Pulse counter reset
button
Pulse counter display
Temperature display
Illuminated laser
emission indicator
