63
HARDWARE INSTALLATION

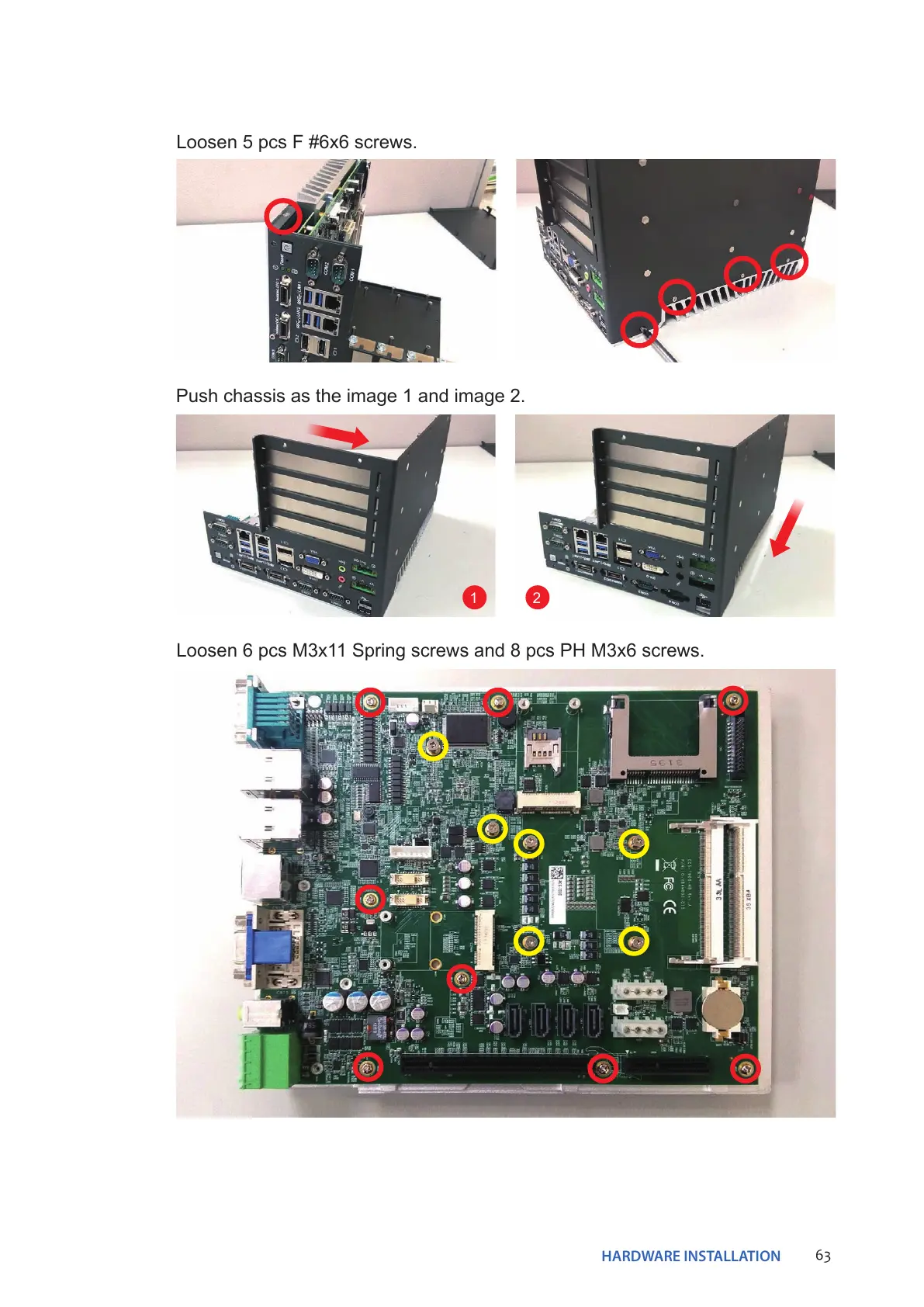

Loosen 5 pcs F #6x6 screws.
Push chassis as the image 1 and image 2.
Loosen 6 pcs M3x11 Spring screws and 8 pcs PH M3x6 screws.
1 2
