CYBEX 525T Service Manual

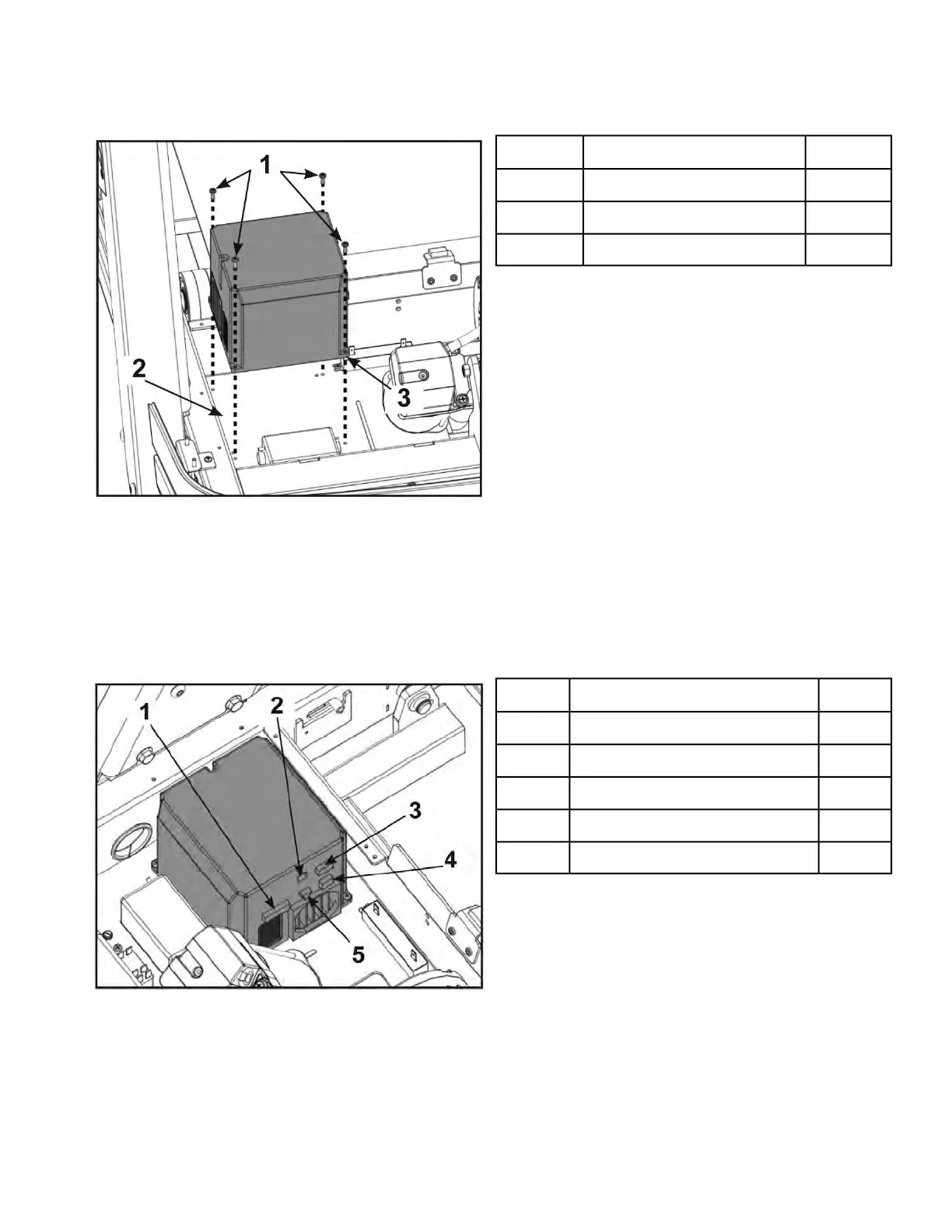

Install motor controller
1. Position the motor controller in place on the motor base plate.
Qty.DescriptionItem
4Screws1
1Motor Base Plate2
1Motor Controller3
2. Install the four screws that hold the motor controller to the motor base plate using a Phillips
screwdriver.
Connect cables to motor controller
1. Connect the cables to the motor controller.
This includes; the power in (INPUT), display cable (COMM.), elevation cable (INCLINE), drive motor
cable (OUTPUT) and resistor (DB).
Qty.DescriptionItem
1Power In (INPUT)1
1Display Cable (COMM.)2
1Elevation Cable (INCLINE)3
1Drive Motor Cable (OUTPUT)4
1Resistor (DB)5
2. Ensure all cables are connected firmly and securely in their proper place.
Install shield
Using a Philips screwdriver tighten the seven screws securing the shield to the base.
Page 162 of 199
