Qty.DescriptionItem
1Base1
7Screws2
1Shield3
Install motor cover

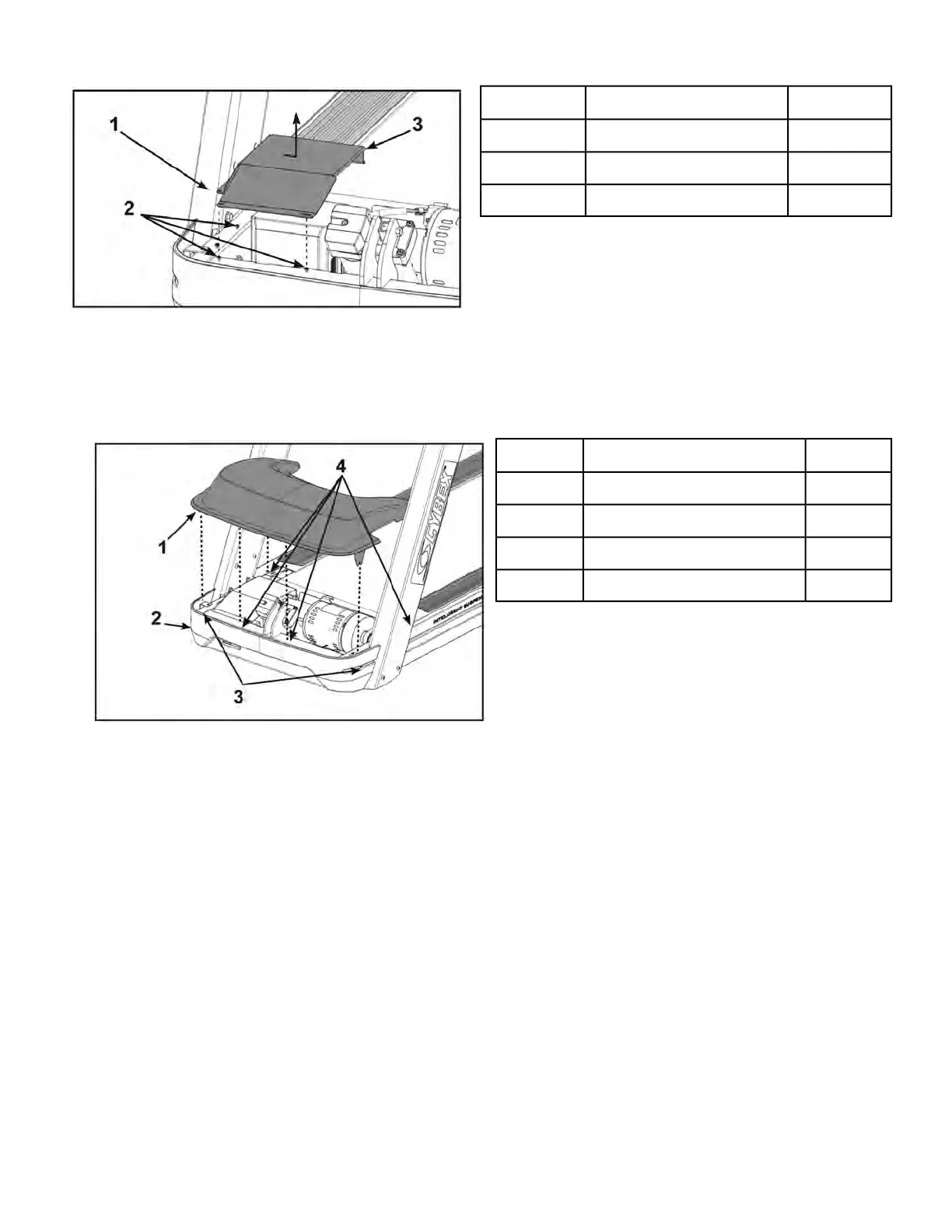

1. Place the motor cover into position vertically by aligning the two tabs and four plastic connectors.
Two plastic connectors are mounted in the front cover and two in the motor cover. If motor cover
top does not fit properly, loosen the side screws as needed.
Qty.DescriptionItem
1Motor Cover1
1Front Cover2
2Screws3
4Plastic Connectors4
2. Tighten the two front cover screws using a Phillips screwdriver.
Be sure the screws are securing the motor cover's tabs.
Complete installation
1. Plug the power cord into the power outlet.
2. Verify the power cord is not being pinched under the front of the treadmill.
3. Operate the unit at all levels to verify proper operation.
Power Cord
Tools Required:
• Phillips screwdriver
Disconnect power source
1. Toggle the on/off (I/O) power switch to the off (O) position. The on/off (I/O) power switch is located
under the front end of the unit, or on the front right side panel.
