CYBEX Arc Trainer 750A User Manual

Assembly and Set Up
Page 2-6
Cybex Arc Trainer 750A/750AT Owner’s Manual
750 AT Hardware Pack
Item Qty Part Number Description
11 4 HT592526 Tap SC 10-12 x 2.00 Type A PN HD PHIL
12 4 HN704901 Locknut, .375-16 Nylon
13 4 HC700428 BHSCS .375-16 x 2.25
14 2 HT552512 Pan HD Phil Hd Self Tapping, 8-16 x .50 Type WB
15 2 BK030204 7/32” Allen Wrench
16 1 YA000201 Loctite
17 2 600A-311 Flange Spacer
18 2 HS307601 Washer, Flat .281 ID x .500 OD x .062 T
19 2 HX622815 SHCS .250-20 UNC-3A SS
20 2 PL-16535 Linkage Rod Cap 2.00 OD
21 1 BK030201 3/16” Allen Wrench
6. Verify contents of 750AT hardware pack.
See 750AT hardware pack listings and Figure 2b for 750AT hardware pack contents. A.
Check off each item as found. See B. Customer Service – Chapter 5 for contact information if any
parts are missing.

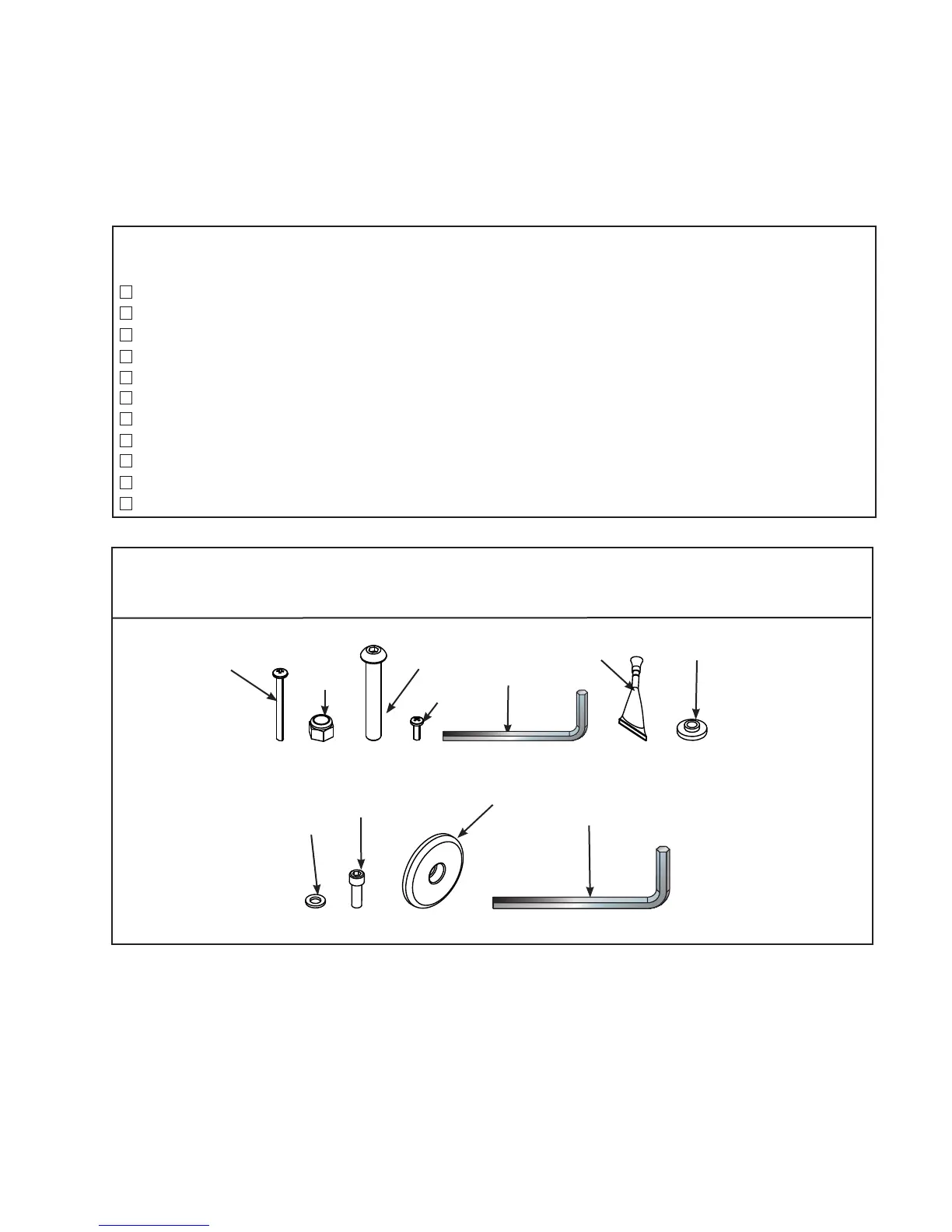

750 AT Hardware
#21
#11
#12
#13
#14
#15
#17
#18
#19
#20
#16
