CYBEX Arc Trainer 750A User Manual

Assembly and Set Up
Page 2-14
Cybex Arc Trainer 750A/750AT Owner’s Manual

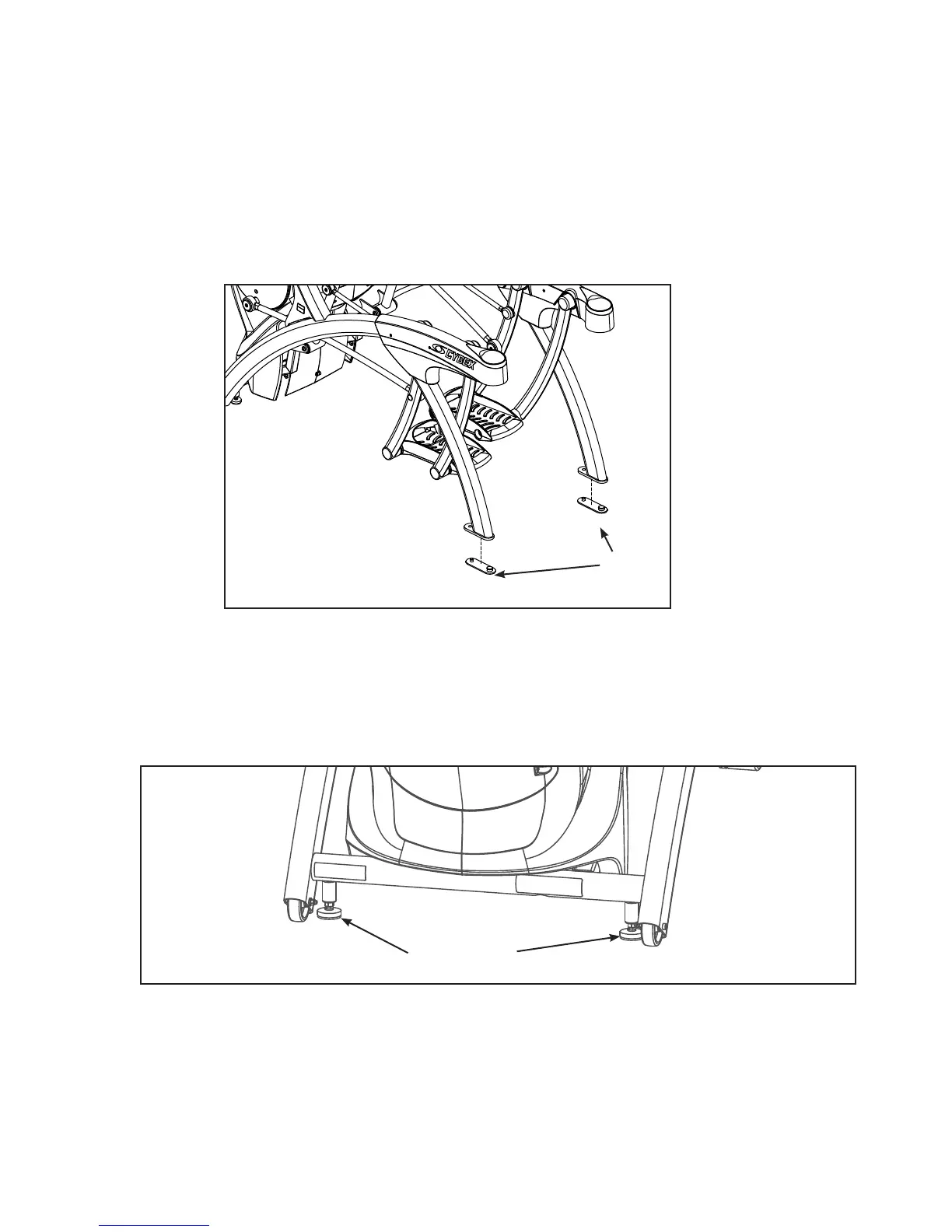

Figure 14
#3
Figure 15
Leveling Feet
17. Connect 750AT contact heart rate cable.
Locate contact heart rate cable exiting from the right handle assembly. See Figure 13.A.
Plug right heart rate cable into main frame socket. See Figure 13.B.
18. Attach foot pads.
Have one person lift the unit while a second person places a foot pad (#3) under each of the two A.
back feet. See Figure 14.
19. Level unit.
Confi rm unit is on a level surface. If not, use a 9/16” open-end wrench to adjust the leveling feet A.
up or down. See Figure 15.
20. Visually inspect unit.
Carefully remove any package material from arms and rest of unit.A.
Carefully examine the unit to ensure assembly is correct and completeB. .
