CYBEX Arc Trainer 750A User Manual

Assembly and Set Up
Page 2-13
Cybex Arc Trainer 750A/750AT Owner’s Manual
Right
Handle
Assembly

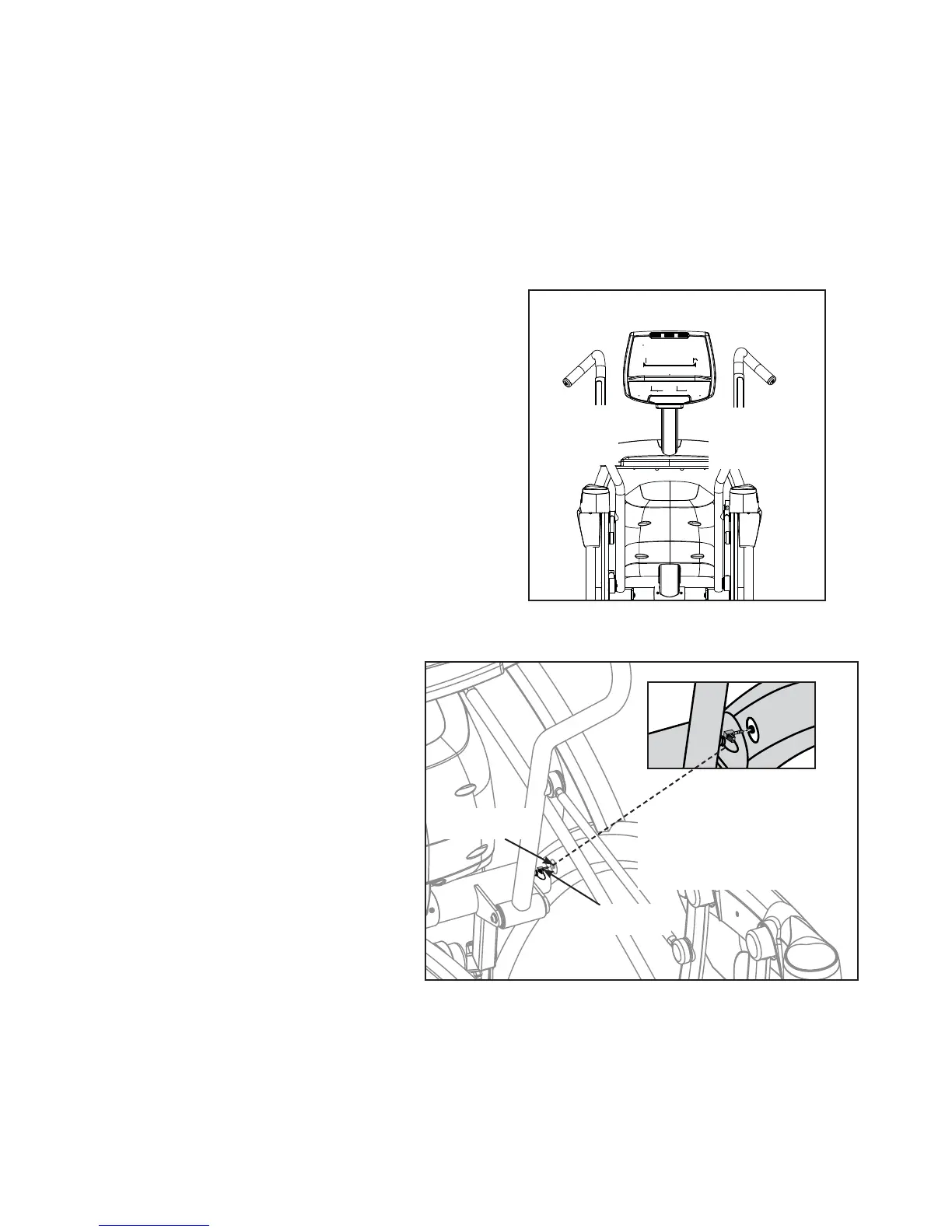

Figure 12 (750AT)
Correct Position
Left
Handle
Assembly
Using a 3/16” Allen wrench (#7), secure linkage rod to handle assembly with G. linkage rod cap 2.00
OD (#20), flange spacer (#17), SHCS .250-20 UNC-3A SS (#19) and fl at washer, .281 ID x .500
OD x .062 T (#18) as shown in Figure 11. NOTE: The SHCS .250-20 UNC-3A SS (#19) must be
tightened to a minimum of 90 in/lbs.
16. Install right handle assembly.
Position the right handle assembly in the correct position on the right side where the left handle A.
assembly was removed in step 14E. See Figures 10 and 11.
Figure 13 (750AT)
Heart Rate
Wire
Main Frame
Socket
NOTE: Position plug so
handle does not
rub cable during
operation.
Apply loctite (#16)B. to threads inside the arm and
screws removed in step
14B. See Figure 11.
Place right handle assembly in position and slide C.
pivot pin back in place. See Figure 10.
Secure handle assembly with the screws and D.
washers removed in step 14B. See Figure 10.
Locate right linkage rod, right handle assembly, E.
linkage rod cap 2.00 OD (#20), flange spacer
(#17), SHCS .250-20 UNC-3A SS (#19), and flat
washer .281 ID x .500 OD x .062 T (#18). See
Figure 11.
Place a drop of threadlocker (#21) on each F.
SHCS .250-20 UNC-3A SS (#19) and another
drop inside the shaft into which the SHCS will be
tightened.
Secure linkage rod to handle G.
assembly with linkage rod cap
2.00 OD (#20), flange spacer
(#17), SHCS .250-20 UNC-3A
SS (#19) and flat washer .281
ID x .500 OD x .062 T (#18)
as shown in Figure11. NOTE:
The SHCS .250-20 UNC-3A
SS (#19) must be tightened to
a minimum of 90 in/lbs.
Verify handle assemblies are H.
now installed in the correct
position as shown in
Figure 12.
