Cybex Arc Trainer 750A/750AT Owner’s Manual
14. Remove left and right handle assembly.
NOTE: The left and right handle assemblies are
shipped in the reverse positions. The handle
assemblies must be removed and swapped
for proper setup and assembly. See Figure 9.
Locate the screws and washers that secure A.
each handle assembly to the main frame.
See Figure 10.
Using a 7/32” Allen wrench (#15), remove the B.
screws and washers from the right handle
assembly. See Figure 10. NOTE: The right
handle assembly is mounted on the left side.
See Figure 9.
Slide pivot pin out, remove right handle C.
assembly and set aside.
Using a 7/32” Allen wrench (#15), remove D.
the screws and washers from the left handle
assembly. See Figure 10. NOTE: The left
handle assembly is mounted on the left side.
See Figure 9.
Slide pivot pin out, remove left handle E.
assembly and set aside.
15. Install the left handle assembly.
Position the left handle assembly in the A.
correct position on the left side where the right
handle assembly was removed in step 14C.
See Figure 10.
Apply loctite (#16)B.
to threads inside the arm
and both screws removed in step 14B. See
Figure 11.
Place left handle assembly in position and C.
slide pivot pin back in place. See Figure 10.
Secure handle assembly with the screws and D.
washers removed in step 14B. See Figure 10.
Locate left linkage rod, left handle assembly, E.
linkage rod cap 2.00 OD (#20), flange
spacer (#17), SHCS .250-20 UNC-3A SS
(#19), and flat washer .281 ID x .500 OD x
.062 T (#18). See Figure 11.
Place a drop of loctite (#16) on each F. SHCS
.250-20 UNC-3A SS (#19) and another drop
Figure 11 (750AT)
(Both Sides–Left Side Shown)
#20
#17
#18
#19
Loctite
(#16)
Screw/Loctite
Washer

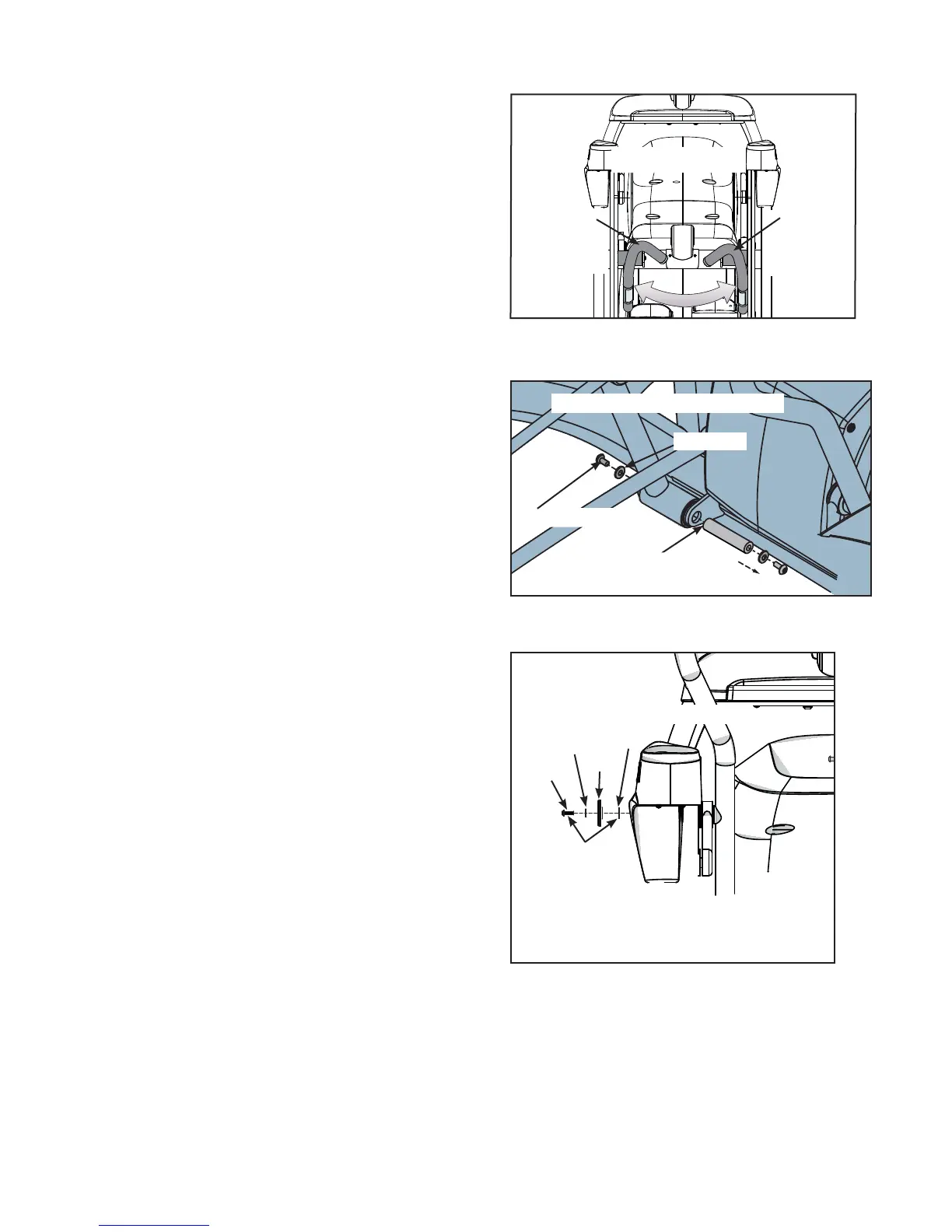

Figure 10 (750AT)
Figure 9 (750AT)
Shipping Position
Right
Handle
Assembly
Left
Handle
Assembly
Pivot Pin
inside the shaft into which the SHCS (#19) will be tightened.
#21
(Both Sides–Left Side Shown)
NOTE: The SHCS .250-20 UNC-3A SS
(#19) must be tightened to a
minimum of 90 in/lbs.
