CYBEX Arc Trainer 750A User Manual

Assembly and Set Up
Page 2-11
Cybex Arc Trainer 750A/750AT Owner’s Manual

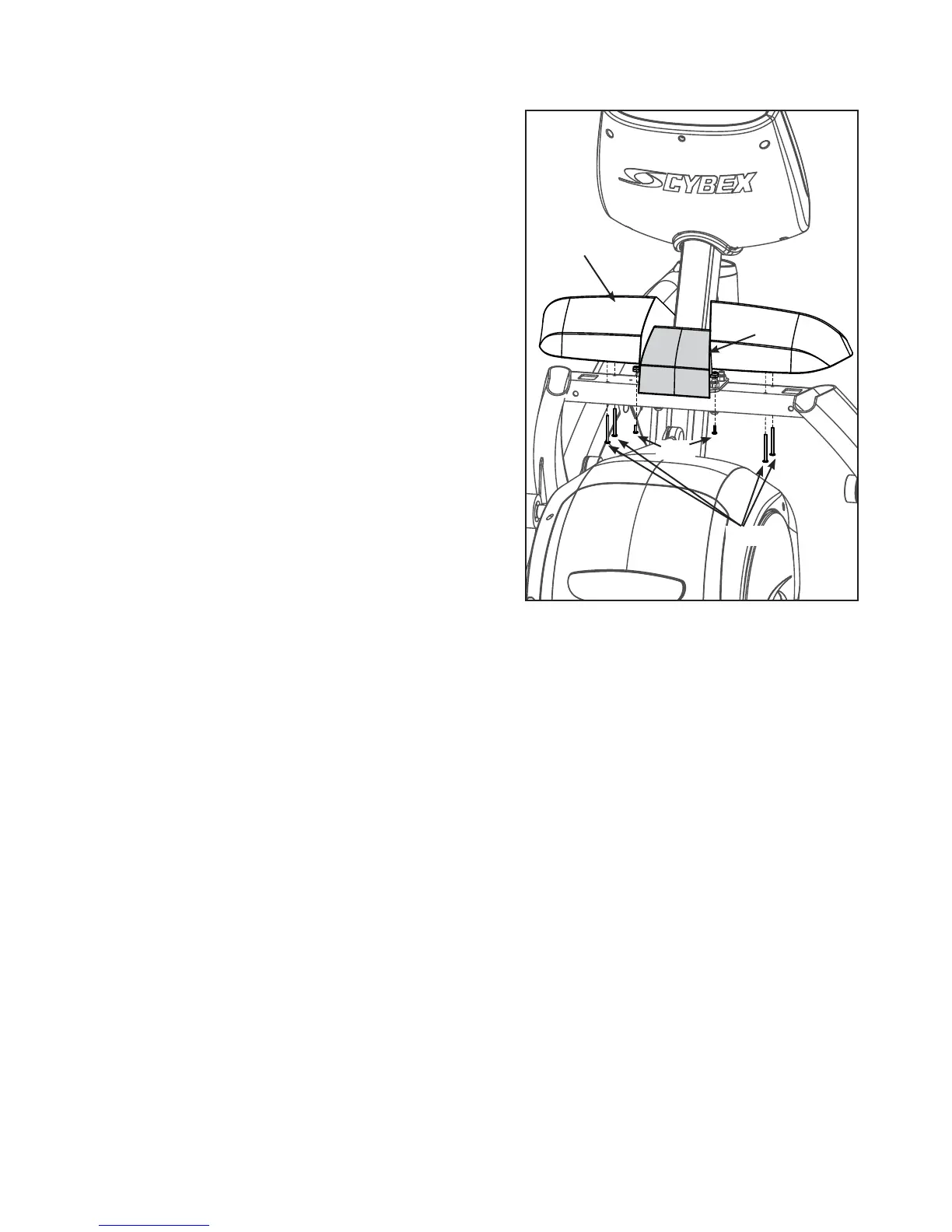

Figure 8
#4
#5
#11
#14
12. Attach main tray.
Locate main tray (#4) and four A. tap
SC 10-12 x 2.00 Type A PN HD PHIL (#11).
Place the main tray (#4) in the correct position B.
on the main frame assembly and hand thread
the four Tap SC 10-12 x 2.00 Type A PN HD
PHIL (#11). See Figure 8.
Using a Phillips screwdriver, securely fasten C.
the four tap SC 10-12 x 2.00 Type A PN HD
PHIL (#11).
13. Attach tray insert.
Locate tray insert (#5) and two A. Pan HD Phil
Hd Self Tapping, 8-16 x .50 Type WB (#14).
Place the insert tray in the correct position on B.
the main frame assembly and hand thread the
two Pan HD Phil Hd Self Tapping, 8-16 x .50
Type WB (#14). See Figure 8.
Using a Phillips screwdriver, securely fasten C.
the two Pan HD Phil Hd Self Tapping, 8-16 x
.50 Type WB (#14).
NOTE: For 750A assembly, skip to step 18.
