Cybex 750A/750AT Arc Trainer Owner’s Manual
Exploded Views
Page D–18
E2
E1
E3
E1
E3
E2
E2
E1
E3
E1
E2
ITEM NO. QTY. PART NUMBER DESCRIPTION
E1 2 FB030244 BEARING, RADIAL BALL. .50 ID X 1.688 OD
E2 2 FC030004 TOLERANCE RING 42 (1.653) ID
E3 2 HX-17143 RING RETAINING, INTERNAL, .500-168
NOTE: Part numbers 750A-116
or 750A-115 are for entire
assemblies. To order
individual parts, see parts
list above.

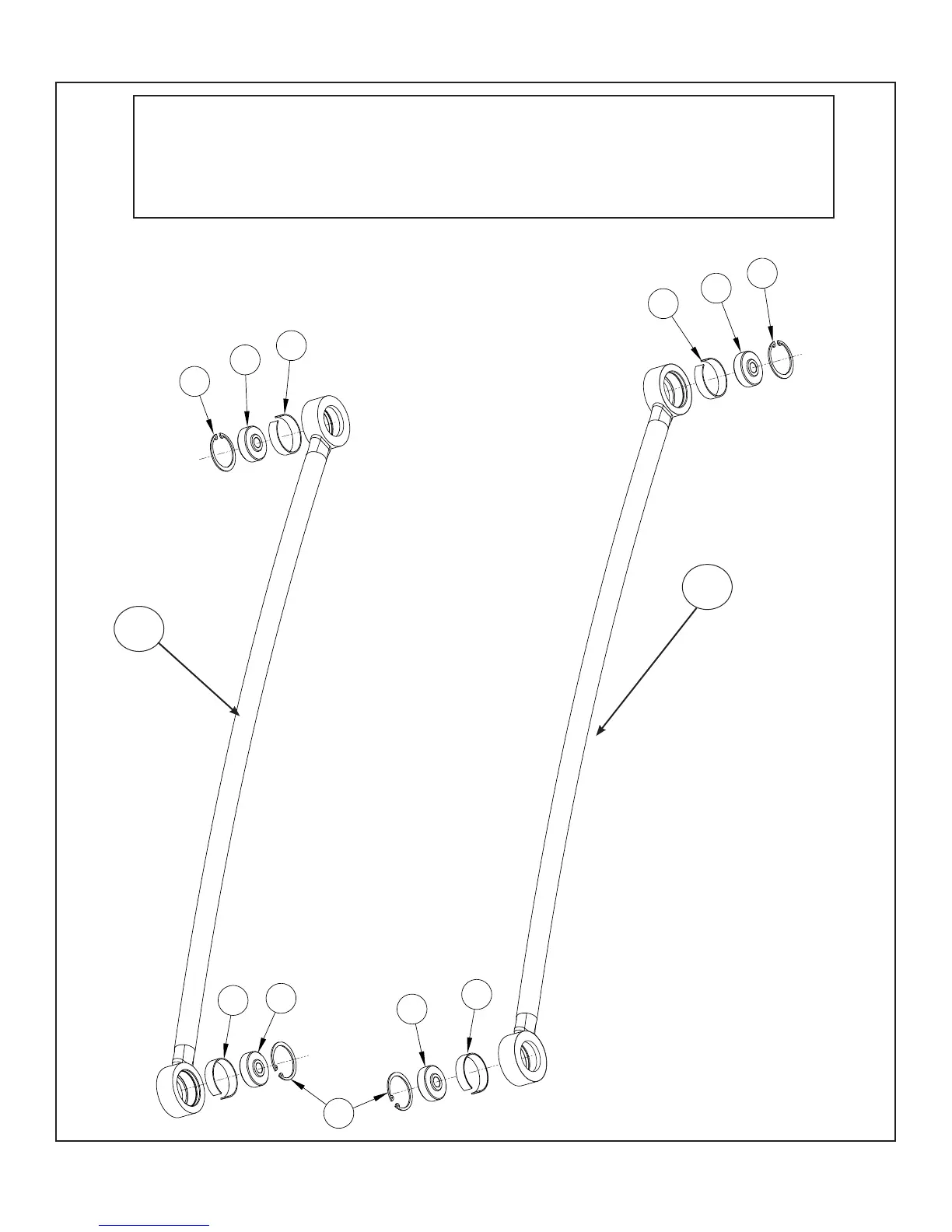

Left and Right Linkage Assembly Part Numbers 750A-115 and 750A-116
