Cybex 750A/750AT Arc Trainer Owner’s Manual

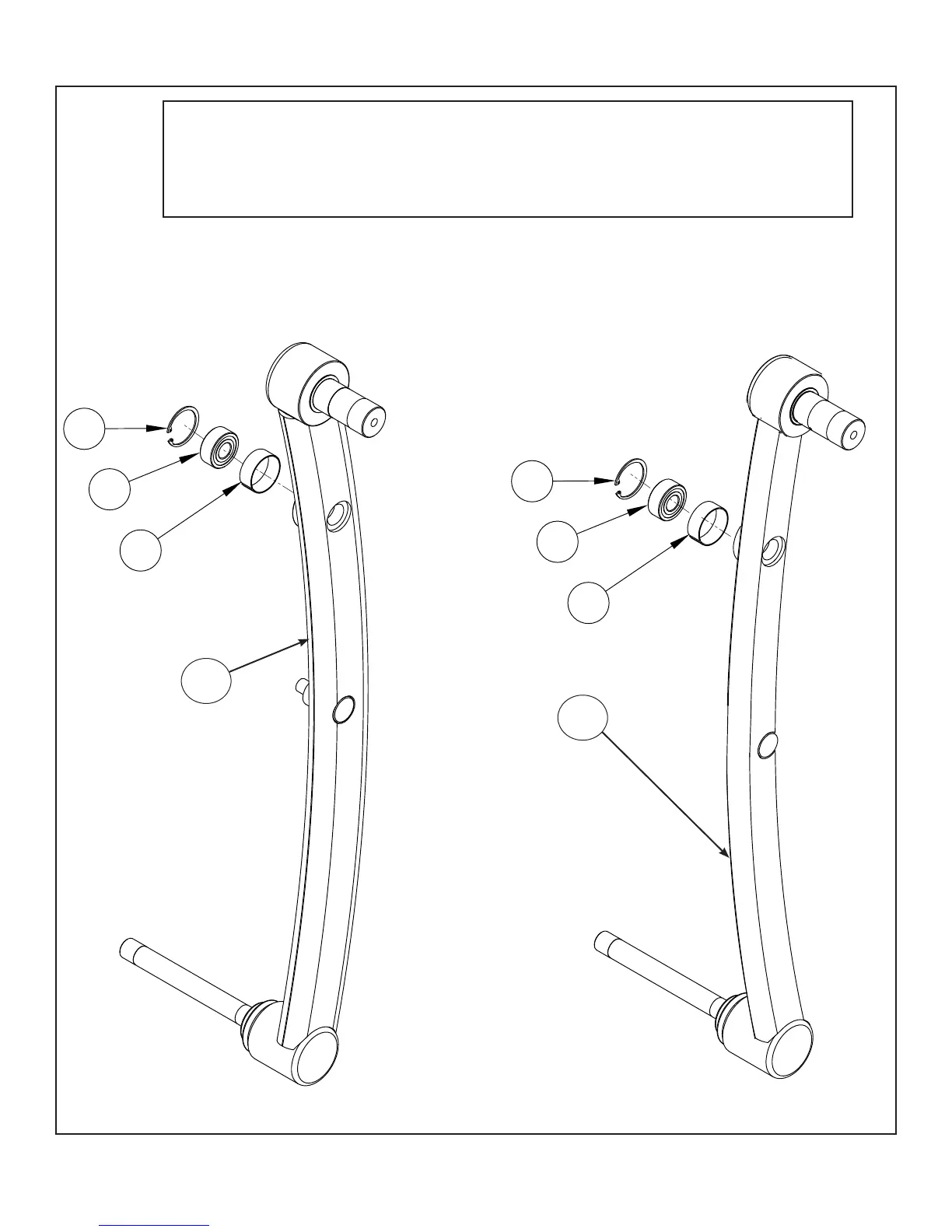

Exploded Views
Page D–19
F1
F2
F3
F1
F2
F3
ITEM NO. QTY. PART NUMBER DESCRIPTION
F1 1 BR030225 RETAINING RING 1.438 INTERNAL
F2 1 FB030248 BEARING, SPHERICAL 15MM
F3 1 FC030005 TOLERANCE RING 1.378 ID
NOTE: Part numbers 750A-112 or 750A-113
are for entire assemblies. To order
individual parts, see parts list above.
750AT Left and Right Foot Plate Arm Assembly
Part Number 750AT-112 and 750AT-113
