Cybex 750A/750AT Arc Trainer Owner’s Manual
Exploded Views
Page D–20
750A-372-4 A
WARNING
DISCONNECT POWER
BEFORE SERVICING.
Voltage: 100-240 VAC~
50/60Hz 1.8 Amps 1-Phase
DVB-T or ATSC
ITEM NO. QTY. PART NUMBER DESCRIPTION
G1 1 CP-21072 MONITOR, 13.3” ATSC NTSC PEM
G1 1 CP-21073 MONITOR, 13.3” DVB-T PEM
G2 1 CP-21632 REMOTE CONTROL, ATSC
G2 1 CP-21531 REMOTE CONTROL, DVB-T
G3 1 750A-217 W AV CONSOLE SMALL
G4 1 740A-387 CONSOLE, TOP AV
G5 1 750A-360 BRACKET, AV LOWER SMALL CONSOLE
G6 2 JC620415 BHSCS .250-20 X .75
G7 4 HM621120 SCREW HEX HD FLANGE .250-20 X 1.25
G8 1 VARIES POWER CORD
G9 1 TR-21265 POWER SUPPLY
G10 3 EW000028 CABLE TIE, 8”
G11 1 EW000029 CABLE TIE, 15”
G12 1 750A-356-X MEMBRANE, A/V KEYPAD
G13 1 740A-388 COVER, JACK BOARD AV
G14 1 750A-103 PCA, HANDSET AUDIO JACK
G15 4 HT552512 TAP SCREW, 8-16 X .50, PN HD PHIL BLK
G16 2 HT552517 TAP SCREW, 8-16 X 1.00, PN HD PHIL BLK
G17 1 AW-20841 CABLE, I-POD
G18 1 AW-20892 CABLE, COMP AV JACK
G19 1 AW-21680 CABLE, LOCKING RF & DC POWER CABLE, 2795MM
G20 1 750A-107 CABLE, 5E BONDED-PAR-RJ45 ROUND
G21 1 750A-372-X DECAL, WARNING
G22 1 750A-441 LABEL, NIKE+I-POD
G23 4 N/A PEM MOUNTING NUT (PART OF MONITOR-G1)
NS 1 750A-394 POSTER, ASSY INSTR MONITOR
NS 2 N/A BATTERIES, REMOTE CONTROL, AAA SIZE
NS 1 LT-21264 PERSONAL ENTERTAINMENT MONITOR MANUAL, ATSC
NS 1 LT-21788 PERSONAL ENTERTAINMENT MONITOR MANUAL, DVB-T

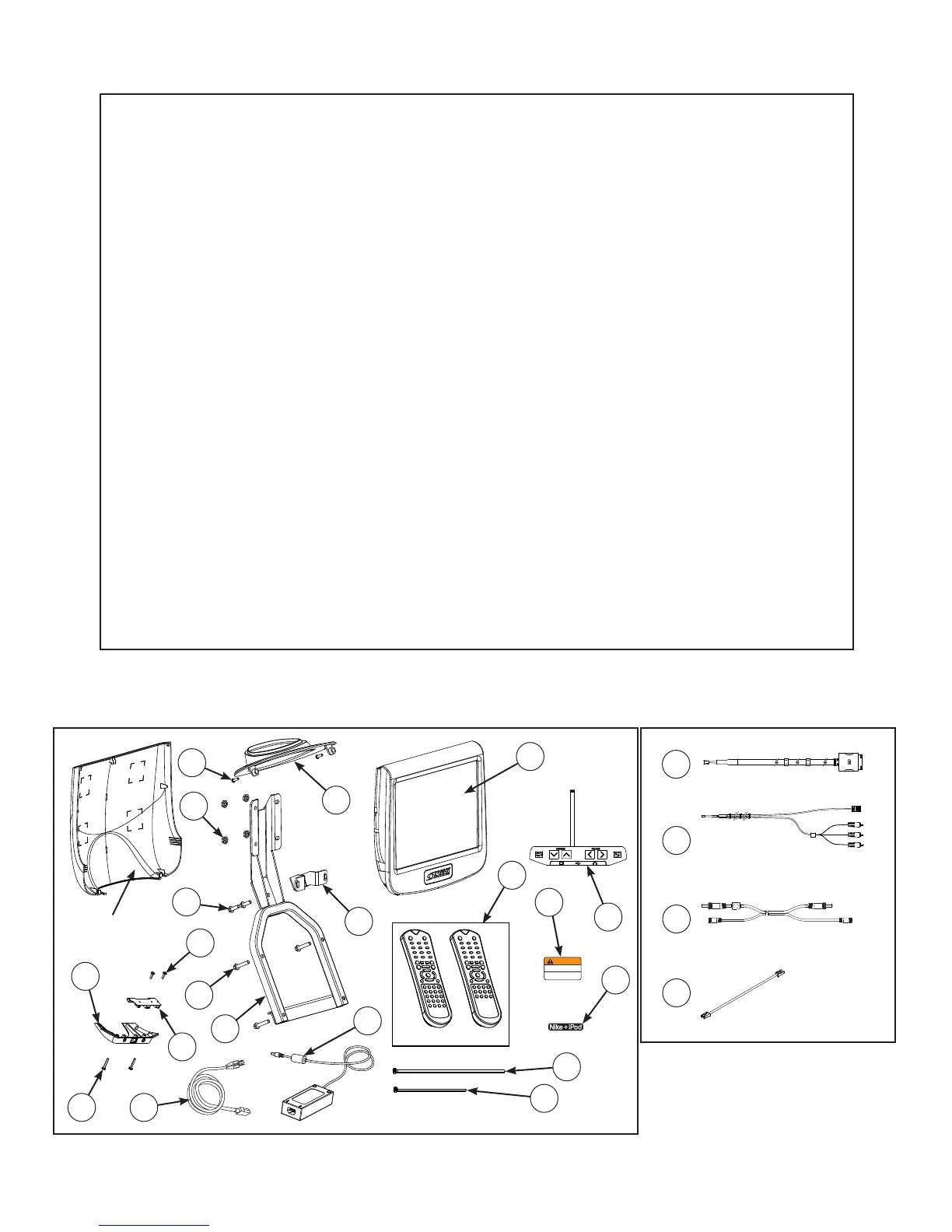

DIGITAL PEM MONITOR OPTION
Monitor Back
Cover
NS = Not Shown
750A-107
RJ45 Cable Blue
AW-20892 Composite Video
and Green RJ45 Cables
AW-20841 iPod Cable
AW-21680 Coax and Power Cable
G17
G18
G3
G7
G6
G5
G4
G15
G23
G13
G14
G15
G16
G8
G9
G11
G10
G12
G2
G1
G21
G22
G19
G20
To Next Page
