CYBEX Pro+ Service Manual

Cybex Pro+ Treadmill Service Manual
Service
Page 4-34
Pull up on the lower board shield until the shield snaps out. A.
Disconnect the display cable (P1 and P2) from the lower board. See Figure 27 .B.
Disconnect the display cable (P3 and P8) from the upper display board. See Figure 27.C.
Using a Phillips screwdriver, loosen the wire retaining screw that holds the display D.
cable in place near the display board.
Remove the cable from the wire ties at the junction and near the bottom of the upright.E.

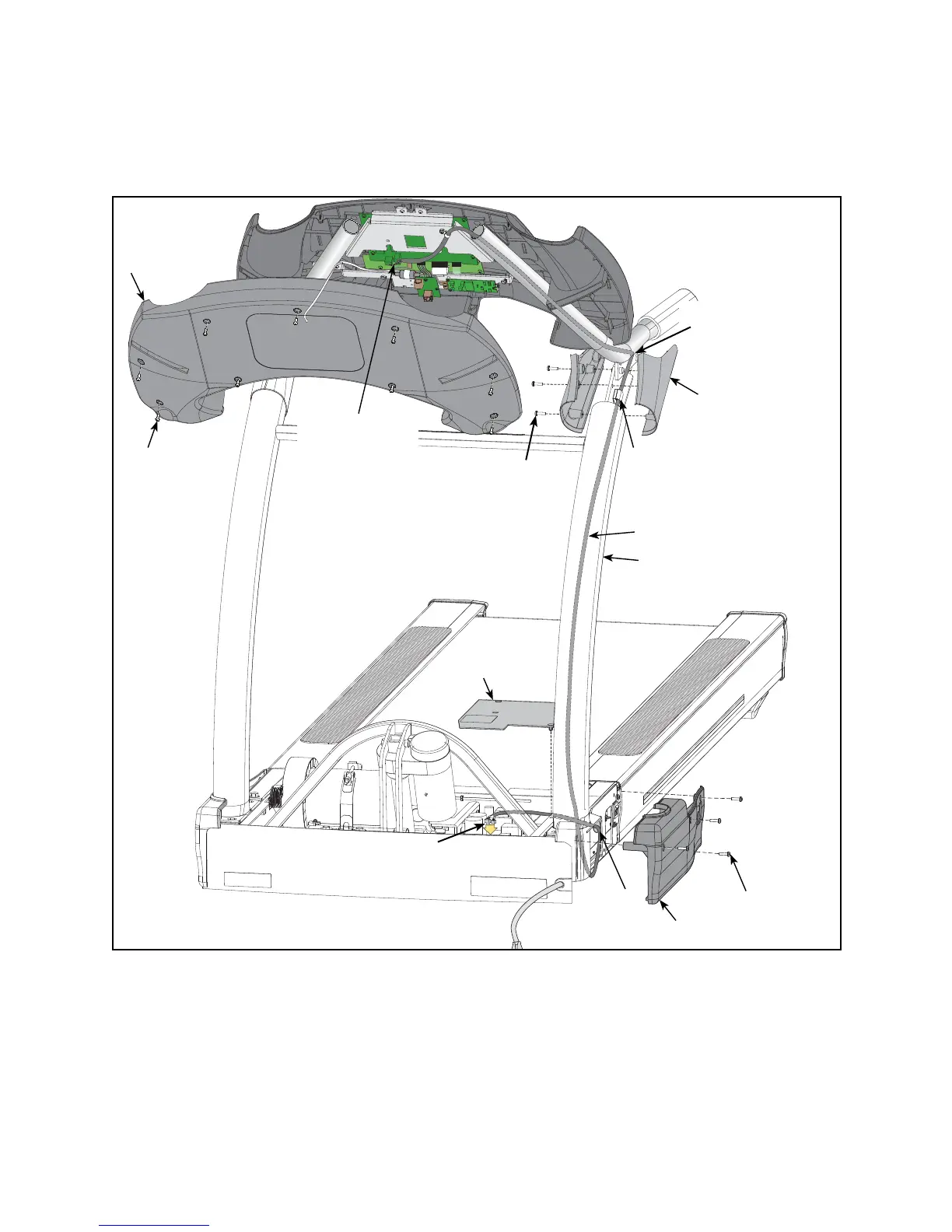

Figure 27
Shield
Display Cable
Screws (4)
Screws (9)
Screws (3)
Left
Junction
Covers
P3 and P8
Connectors on
Upper Display
Board
Console
Back Cover
P1 and P2 on
Lower Board
Left Side Cover
NOTE: “Right” and “left” denote
user orientation.
Access
Hole
Bottom
Hole
Wire
Holder
Upright
