! CAUTION: A minimum of two people are required to lift, move and assemble this
treadmill. Always use proper lifting methods when moving heavy items.
4. Lift and move the treadmill.
A. At least two people should lift and move the treadmill to a level location where you
intend to leave it. Use proper lifting methods.
! CAUTION: Do not pinch your hands or other body parts while pivoting the treadmill.
See Figure 3.
5. Pivot the console and uprights into position.
A. Remove all plastic wrapping except the white wrapping on the uprights.
B. Ensure that the display cable does not get pinched in step C.
C. Raise the console and uprights into position (they will pivot into place). NOTE: Confirm
that no cables are pinched while raising the unit. See Figure 3.
D. Have a second person continue to hold the uprights in place until after step 7A so that
they do not fall.
Cybex Pro+ Treadmill Owner’s & Service Manual
Setup
&
Assembly
Page 5-5

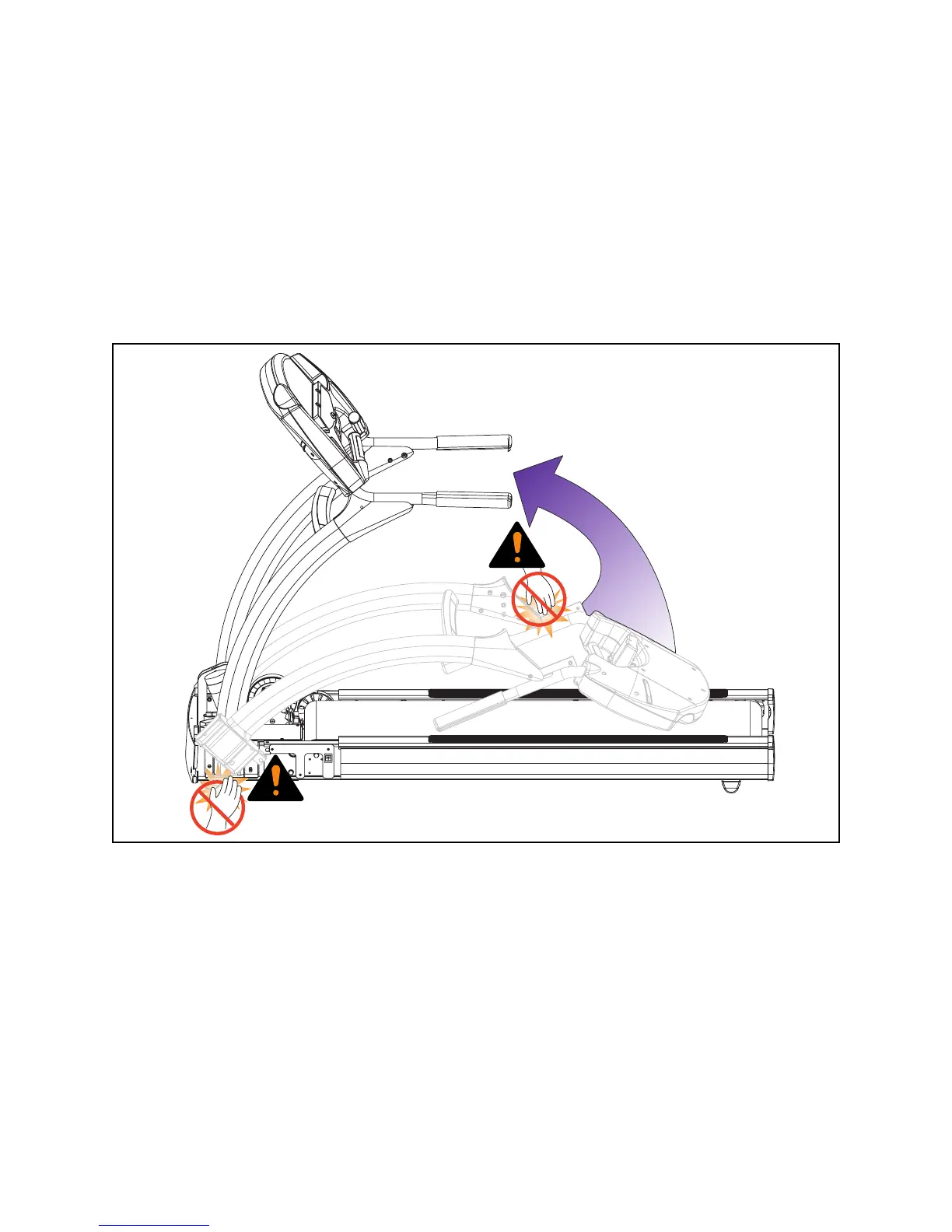

Figure 3
