4. Remove the side panels.
A. Pull each side panel out and off the treadmill. See Figure 5.
5. Remove the top steps.
A. Using a Phillips head screwdriver, remove the three screws that hold one of the top steps
in place. Repeat this step for the other side. See Figure 5.
B. Grasp each top step and slide it out and off the treadmill. See Figure 5.
Rear Roller
6. Remove the rear roller.
A. Using a 3/4” open end or socket wrench,
loosen the two rear roller bolts (one roller
bolt on each side). NOTE: Loosen each bolt
evenly, making sure not to loosen either bolt
too many turns before moving to the other
bolt. See Figure 6.
B. While holding the rear roller, remove the
hardware from each side. NOTE: Pivot the
bolt, washers, spring and nut holder out
together. See Figure 6.
C. Lift one side of the rear roller and slide the
roller out of the running belt. See
Figure 6.
Cybex Pro+ Treadmill Owner’s & Service Manual
Service
Page 7-11

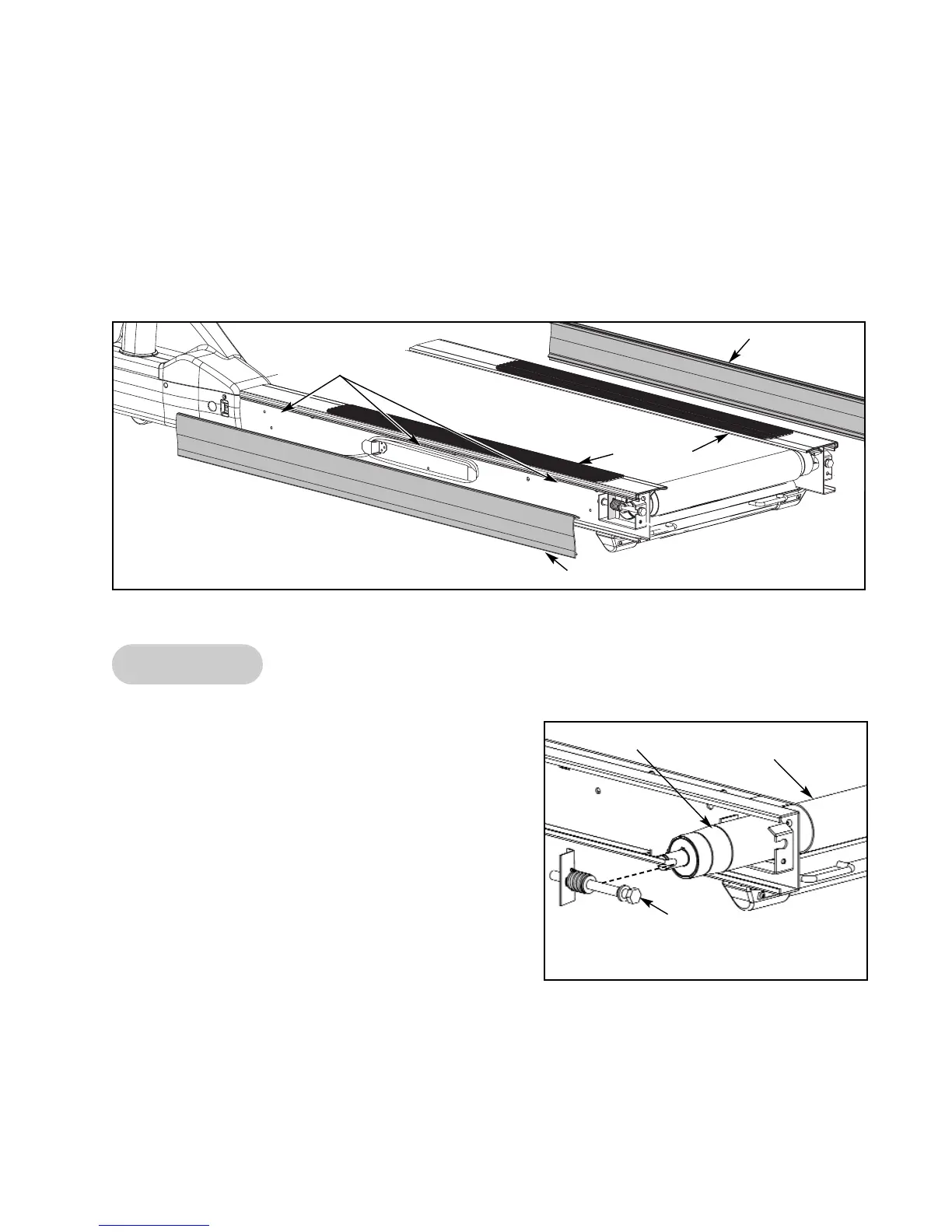

Figure 6
Rear Roller Bolt, Washers, Spring and
Nut Holder
NOTE: Keep the Hardware Together
Rear Roller
Side Panel
Figure 5
Side Panel
Top Steps
Running Belt
Screws (3 Under
Each Top Step)
