CYBEX VR2 User Manual

Delivery
& Installation
Page 5-5
Cybex VR2 Owner’s Manual

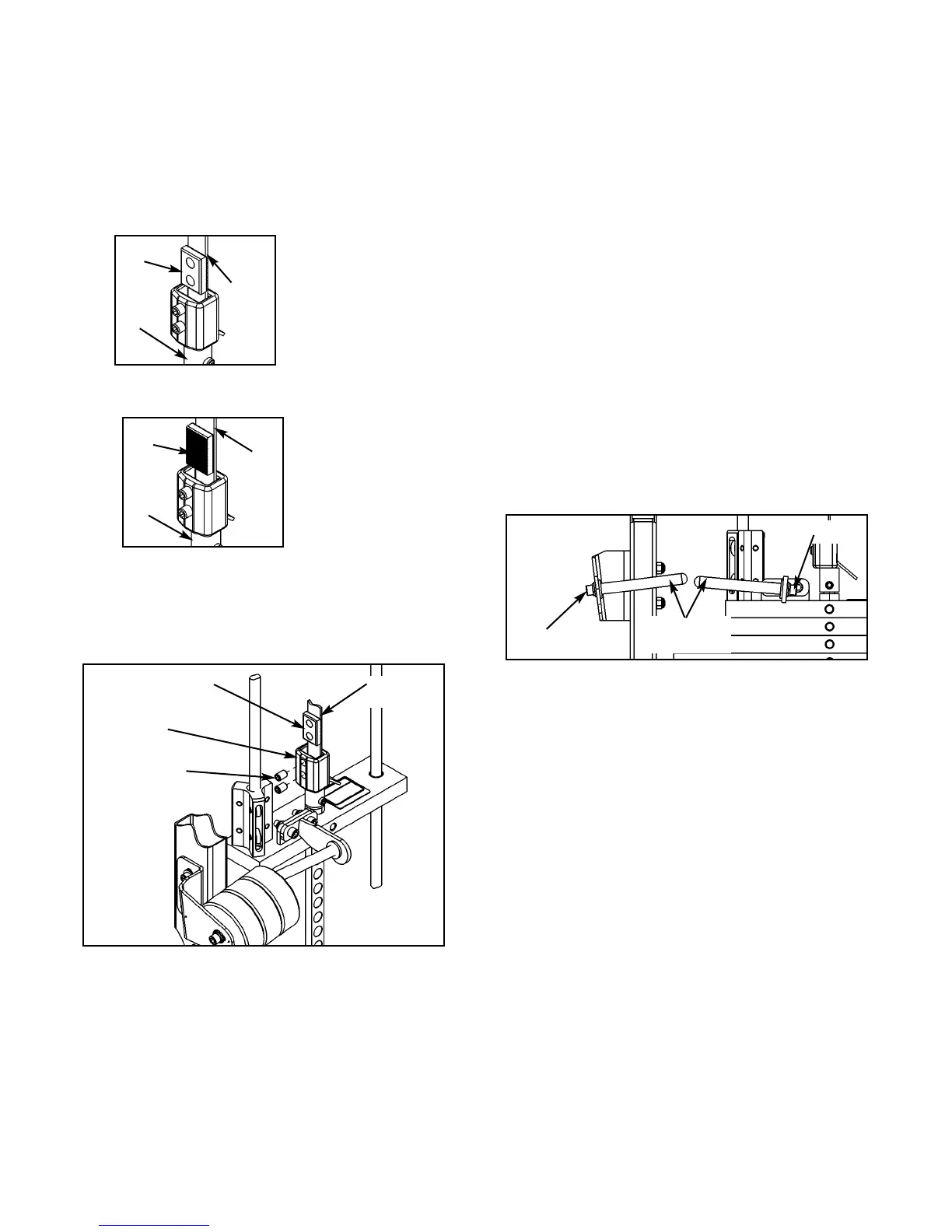

D. Slide belt through slot in belt clamp.
E. Verify belt and insert are installed properly,
as shown in Figure 6. NOTE: Do not install
the insert backwards as shown in Figure 7.
F. Pull belt tight and secure belt to clamp with
the two set screws. See Figure 8.
Figure 8
G. Place weight stack pin in each plate to
verify proper installation.
H. Lift top weight up and down and verify that
the belt lies flat and that it is not riding up
on the pulley flange. See Figure 6.
I. Verify belt is rounted straight from the top
pulley bracket to the top weight belt clamp.
4. Aligning increment weight rods.
A. Securely tighten the SHCS securing the
increment weight rod (located on the
weight stack). See Figure 9.
B. Securely tighten the SHCS securing the
other increment weight rod. See Figure 9.
Figure 9
SHCS
SHCS
Increment
Weight Rod
Correct belt routing
Wrong belt routing
Figure 6
Figure 7
Stem
Belt
Insert
Stem
Belt
Insert
C. Adjust the height of the increment weight
rod (on the frame) to match the height of
the increment weight rod on the top
weight. Tighten each SHCS securely. See
Figure 10.
Belt clamp
Belt
Belt clamp insert
Set screw
