DAP-1325 N300 Wi-Fi Range Extender
User Manual
Installation and Connection
4. Select the Use the following IP address radio button and enter the value
192.168.0.51 in the IP address field. The Subnet mask field will be filled in
automatically. Click the OK button.

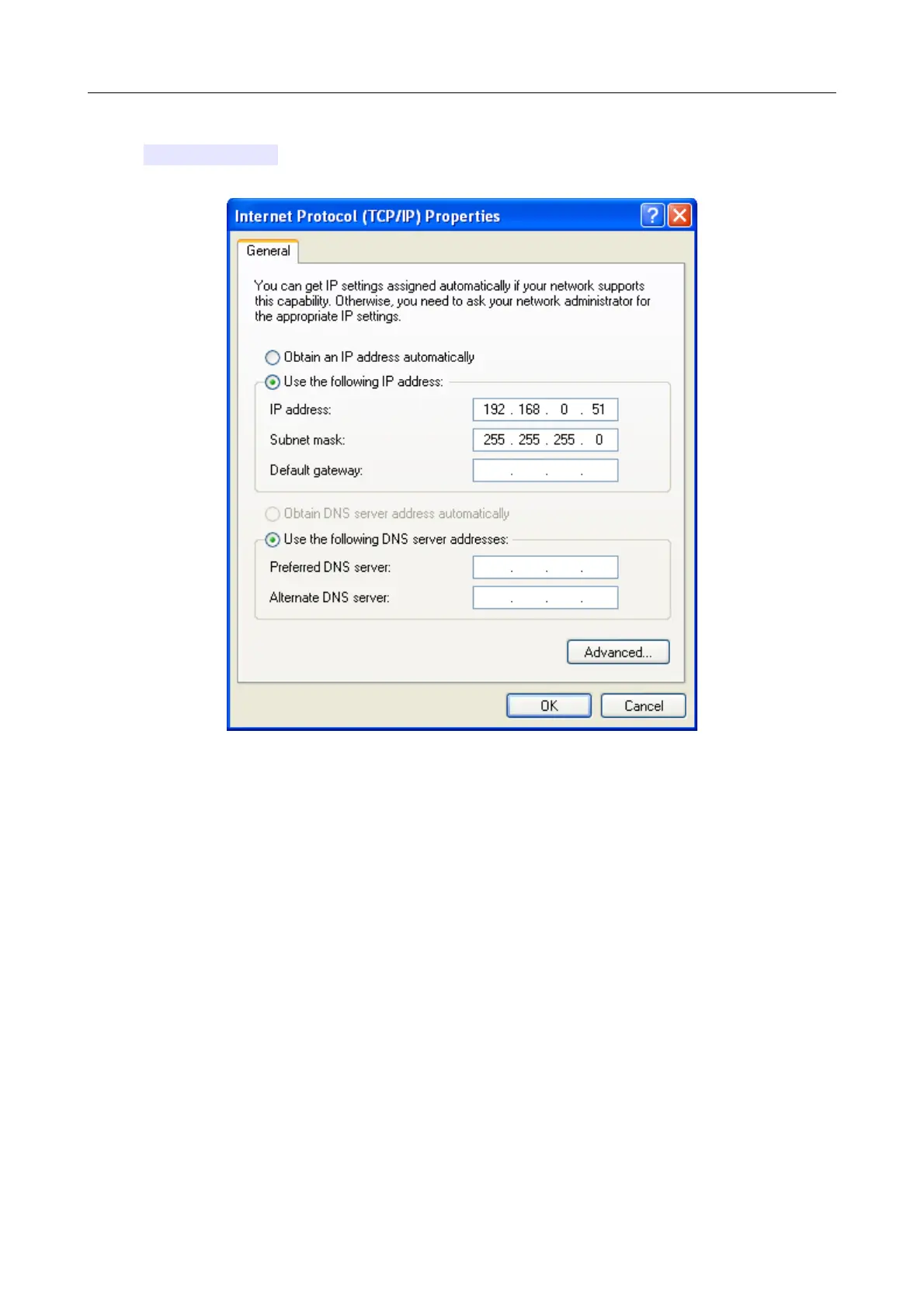

Figure 5. The Internet Protocol (TCP/IP) Properties window.
5. Click the ОК button in the connection properties window.
Now you can connect to the web-based interface of DAP-1325 for configuring all needed
parameters. To gain access to an external network (to the Internet), you also need to specify the
default gateway and the addresses of DNS servers.
Page 14 of 92
