DAP-1325 N300 Wi-Fi Range Extender
User Manual
Installation and Connection
Conguring Wi-Fi Adapter in OS Windows XP
1. Click the Start button and proceed to the Control Panel > Network and Internet
Connections > Network Connections window.
2. In the Network Connections window, right-click the relevant Wireless Network
Connection icon. Make sure that your Wi-Fi adapter is on, then select the Properties line
in the menu displayed.
3. In the Wireless Network Connection Properties window, on the General tab, select
the Internet Protocol (TCP/IP) line. Click the Properties button.
4. Select the Use the following IP address radio button and enter the value
192.168.0.51 in the IP address field. The Subnet mask field will be filled in
automatically. Click the OK button.

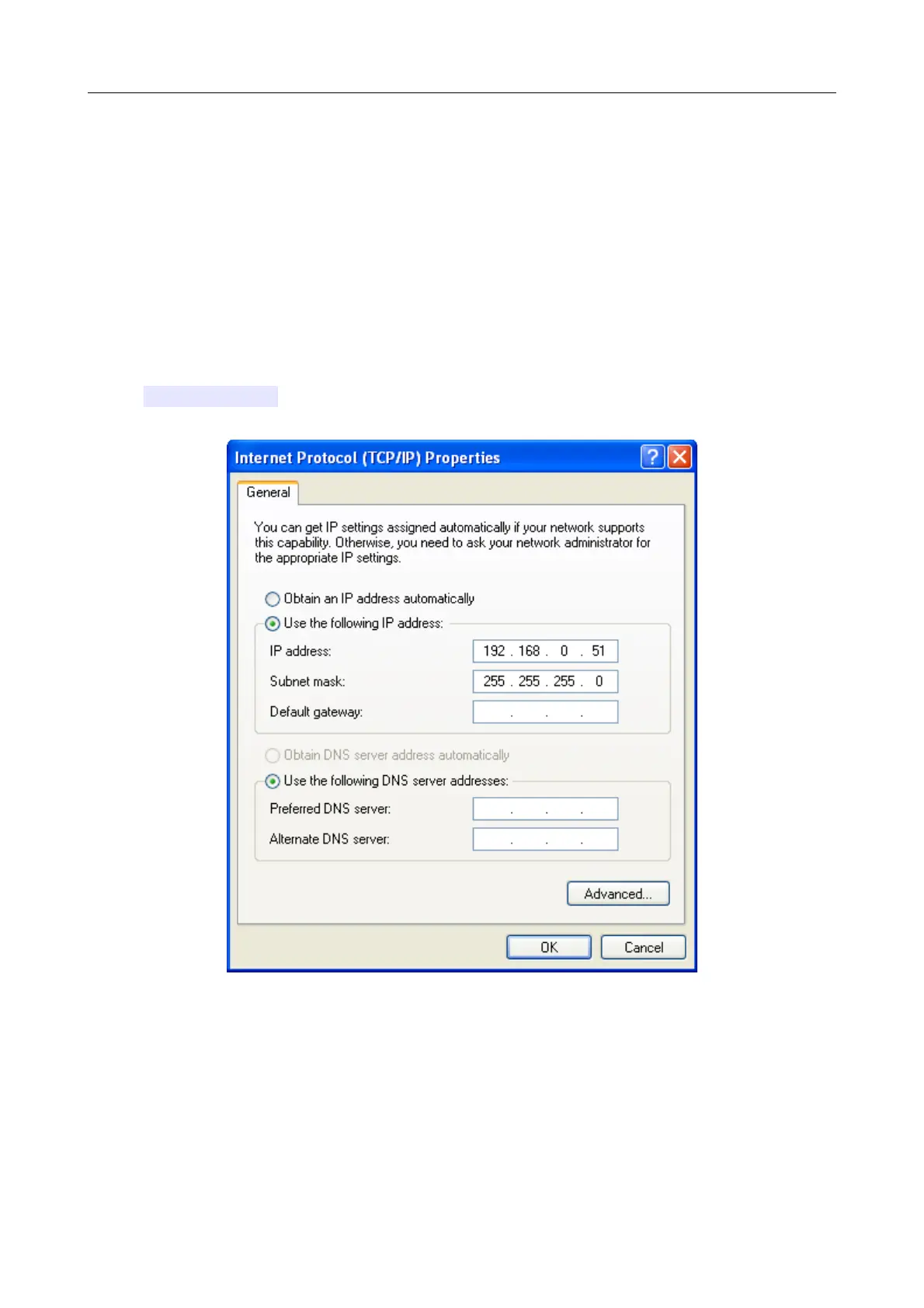

Figure 11. The Internet Protocol (TCP/IP) Properties window.
5. Click the ОК button in the connection properties window.
Page 21 of 92
