D-Link DAP-1350 User Manual

66D-Link DAP-1350 User Manual
Section 3 - Configuration

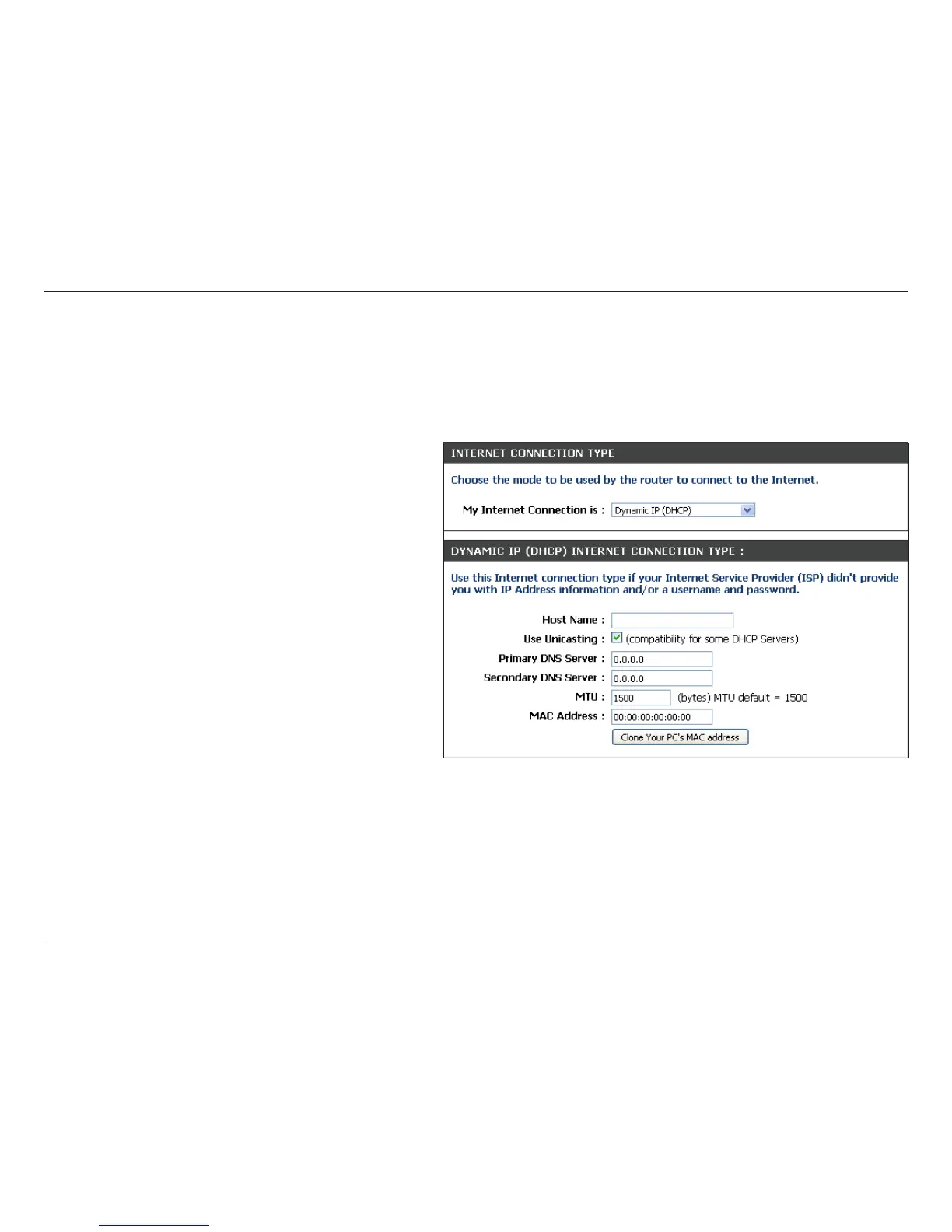

Dynamic IP (DHCP)
Select Dynamic IP(DHCP) to obtain IP Address information automatically from your ISP. Select this option if your ISP
does not give you any IP number to use. This option is commonly used for Cable modem services.
Host Name:
Use Unicasting:
DNS Server:
MTU:
MAC Address:
The Host Name is optional but may be
required by some ISPs.
Select if you are having problems obtaining
an IP address from your DHCP server.
Enter the Primary and Secondary DNS
server IP address assigned by your ISP.
You may need to change the MTU (Maximum
Transmission Unit) for optimal performance
with your specific ISP. The default MTU size
is 1500.
The default MAC address is set to the
Ethernet MAC address your DAP-1350.
You can click the Clone Your PC’s MAC
Address button to replace the AP’s MAC
address with the MAC address of the PC that
you used to register with your ISP. It is not
recommended that you change the default
MAC address unless required by your ISP.

D-Link DAP-1350 Specifications

General

Maximum data transfer rate	100 Mbit/s
Wireless technology	802.11n
DHCP client	Yes
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Security algorithms	WPA, WPA2
Package weight	570 g
Certification	-FCC Class B, Wi-Fi, IC
LED indicators	LAN
Antenna features	Integrated antenna

Weight and Dimensions

Weight	230 g
Dimensions (WxDxH)	91.4 x 20.3 x 66 mm
