D-Link DAP-1610 User Manual

DAP-1610 AC1200 Wi-Fi Range Extender
User Manual
Configuring via Web-based Interface
To edit the settings of the basic wireless network, in the Wi-Fi Network section, change the needed
parameters and click the APPLY button.
Also you can create an additional wireless network. To do this, click the ADD WI-FI NETWORK
button. On the opened page, specify the relevant parameters.

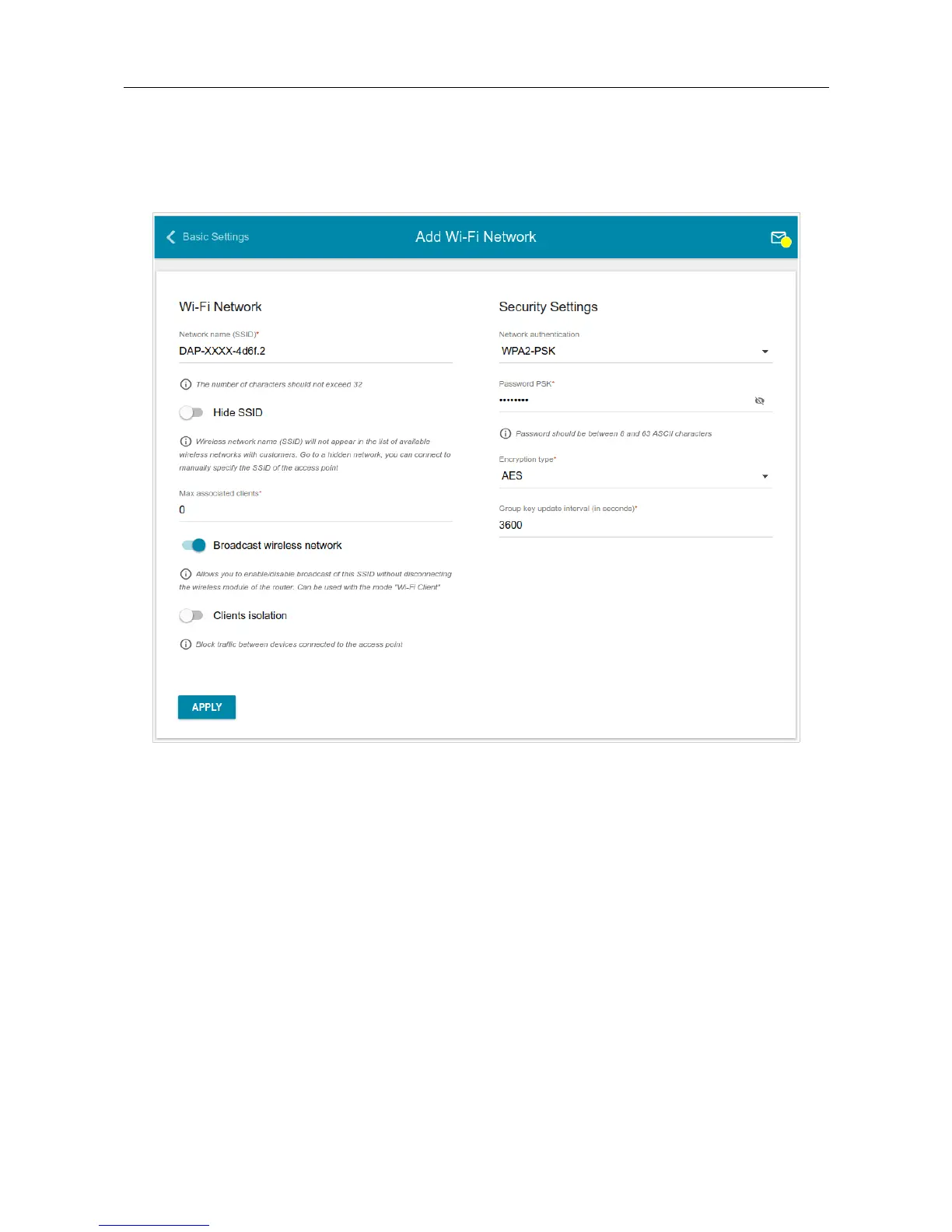

Figure 38. Creating a wireless network.
Page 44 of 91

D-Link DAP-1610 Specifications

General

Type	Network transmitter & receiver
WPS push button	Yes
Ethernet LAN data rates	10, 100 Mbit/s
Maximum transfer distance	- m
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	WPA, WPA2
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab
Certification	FCC, IC, CE2. UL
Product color	White
LED indicators	Signal strength, Status, WPS
Ethernet LAN (RJ-45) ports	1
Antenna type	External
Antennas quantity	2
AC input voltage	110-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	50.7 mm
Width	97.9 mm
Height	48.7 mm
Weight	120 g
