11D-Link DAP-2360 User Manual
Section 2 - Installation

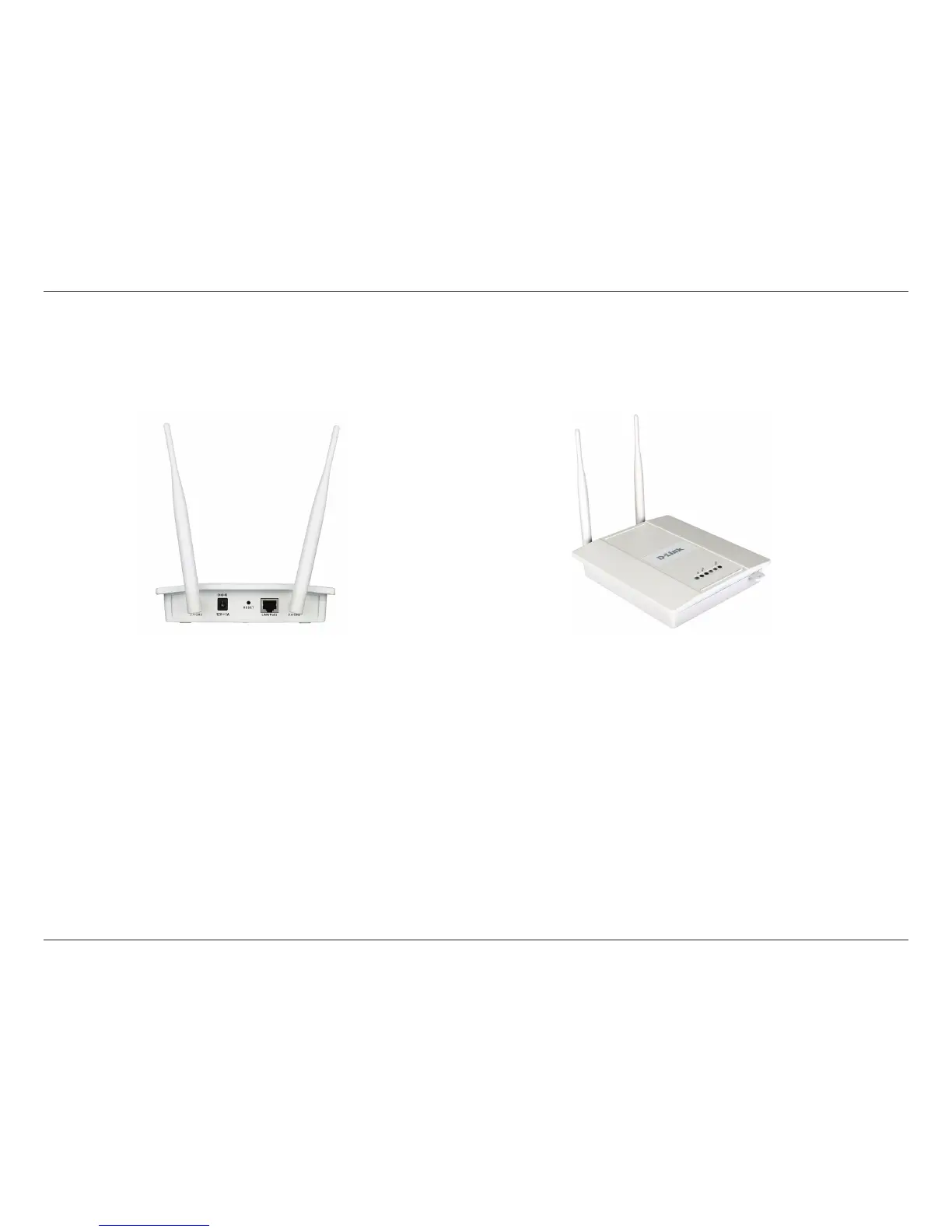

Hardware Overview
Power LED
This light will be solid green when the unit is powered on.
2.4 GHz LED
This light will be ickering green when the 2.4GHz frequency is in use.
LAN LED
This light will be ickering green when there is active LAN trac.
Power Receptacle (*Note no longer used, replaced by PoE)
The supplied power adapter connects here.
Reset Button
A pinhole button located beside the Ethernet socket is used to reset the
system or restore the factory default settings.
Note: After resetting the unit, you will still be able to access the data
on your hard drives.
LAN (PoE) Port
An Gigabit Ethernet port that connects the unit to a network. This port
can also be used to supply power to this unit using Power over Ethernet.
