Section 3: Conguration

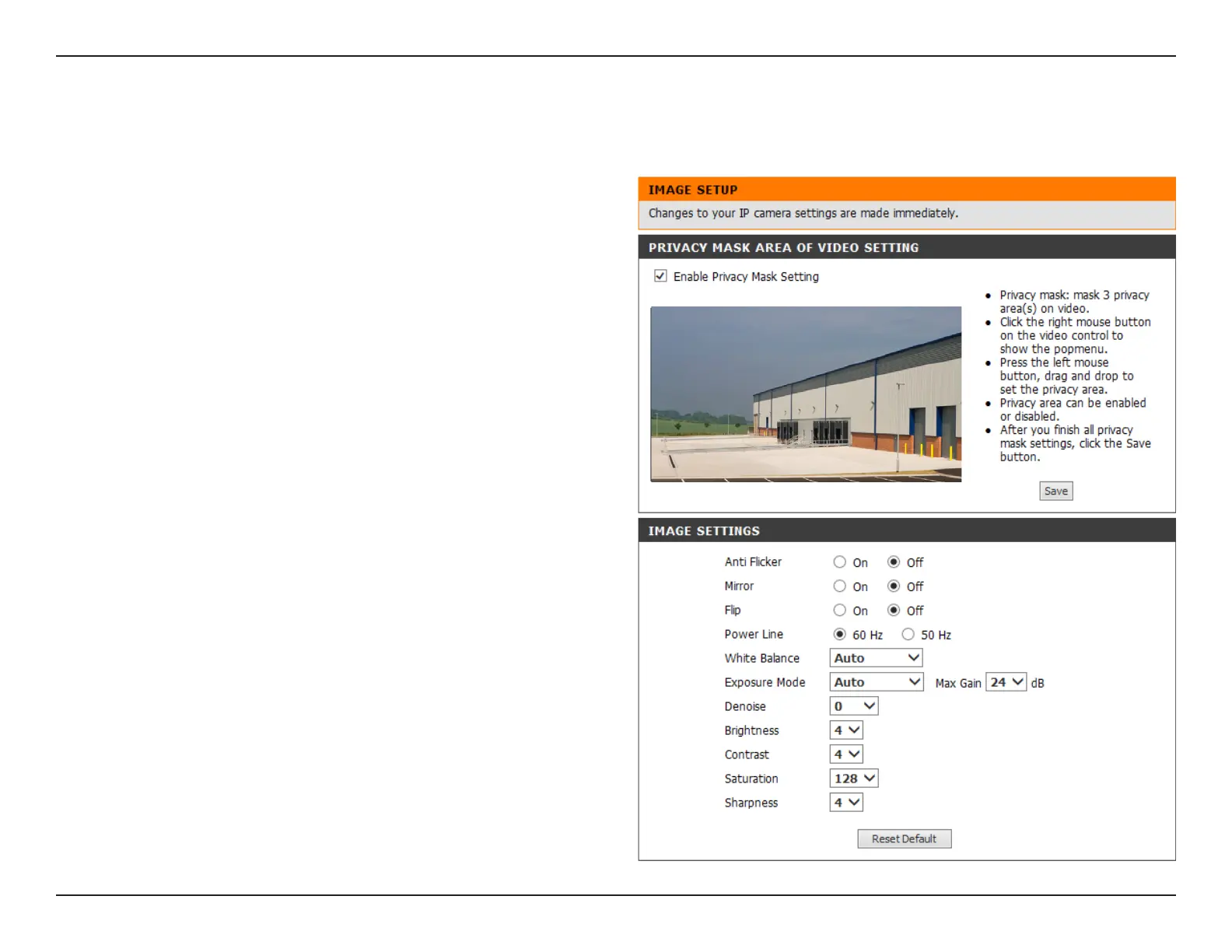

Image Setup
In this section, you may congure the video image settings for your camera. A preview of the image will be shown in Live Video.
Enable Privacy
Mask:
Anti Flicker:
Mirror:
Flip:
Power Line:
White Balance:
The Privacy Mask setting allows you to specify up
to 3 rectangular areas on the camera's image to be
blocked/excluded from recordings and snapshots.
You may click and drag the mouse cursor over the
camera image to draw a mask area. Right clicking
on the camera image brings up the following menu
options:
Disable All: Disables all mask areas
Enable All: Enables all mask areas
Reset All: Clears all mask areas.
If the video ickers, try enabling this setting.
This will mirror the image horizontally.
This will ip the image vertically. When turning Flip
on, you may want to consider turning Mirror on as
well.
Select the frequency used by your power lines to
avoid interference or distortion.
Use the drop-down box to change white balance
settings to help balance colors for dierent
environments. You can choose from Auto, Outdoor,
Indoor, Fluorescent, and Push Hold.

D-Link DCS-2330L Specifications

General

Type	IP security camera
PTZ control	-
Certification	FCC, CE, CE LV D, C-Tick
Placement supported	Indoor & outdoor
Connectivity technology	Wireless
Form factor	Box
Product color	Black, White
International Protection (IP) code	IP65
Maximum resolution	1280 x 720 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG, MPEG4
Supported graphics resolutions	320 x 240, 480 x 360, 1024 x 768 (XGA), 1280 x 720 (HD 720), 640 x 480 (VGA), 800 x 600 (SVGA)
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/4 \
Optical zoom	- x
Zoom capability	Yes
Fixed focal length	3.45 mm
Built-in HDD	No
LED type	IR
Night vision distance	5 m
Supported network protocols	IPv6, IPv4, TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP / HTTPS, PPPoE, UPnP, RTP / RTSP/ RTCP, QoS, CoS
AC input voltage	100-240 V
DC output current	1.2 A
DC output voltage	-5V
AC input frequency	50 - 60 Hz
Power consumption (typical)	5.5 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-25 - 45 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Mobile operating systems supported	Android, iOS
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Premium, Windows 7 Professional, Windows 7 Starter, Windows 7 Ultimate, Windows 8, Windows 8 Enterprise, Windows 8 Pro, Windows Vista Business, Windows Vista Enterprise, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Ultimate, Windows XP Home, Windows XP Professional

Weight and Dimensions

Depth	53.8 mm
Width	66 mm
Height	105 mm
Weight	134 g
